Velocity
64
Device Drivers

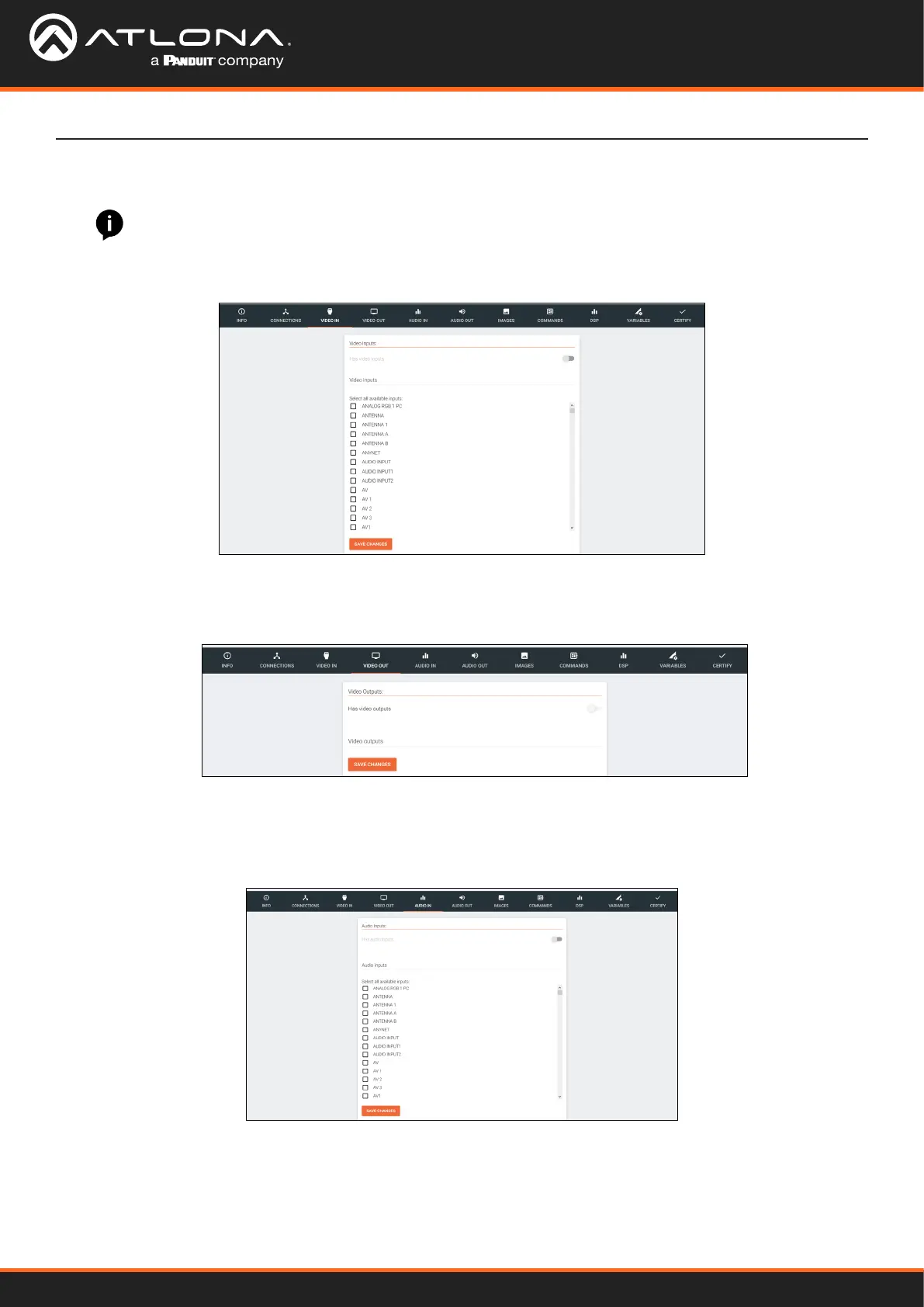

c. VIDEO IN Tab
Video inputs - This slider auto adjusts when inputs are selected.
Select all available inputs - Select the checkbox of all input types that the device has.
d. VIDEO OUT Tab
Has video outputs - Select this slider if the device has video outputs.
Video outputs - Type in all types of output ports the device has, separate each type with a comma
e.g. HDMI, HDBaseT, DisplayPort
e. AUDIO IN Tab
Has audio inputs - This slider auto adjusts when inputs are selected.
Select all available inputs - Select the checkbox of all input types that the device has.
Keep Alive Command - Provide the command to keep the device connection alive. The command will be
found in the device’s manual.
Interval To Send (In Seconds) - Set the amount of time between each time the Keep Alive Command is
sent. Set from 0 to 360 seconds.
NOTE: To enter a carriage return as the keep alive command, \x0D must be entered.
NOTE: To enter a HEX command, \x must be entered before the command or it will not pass.
