Velocity
155
Custom Control Interface
The example below will provide examples of setting up a single display button that can toggle between options. The
Display button will adjust based upon the variable and condition options set up.

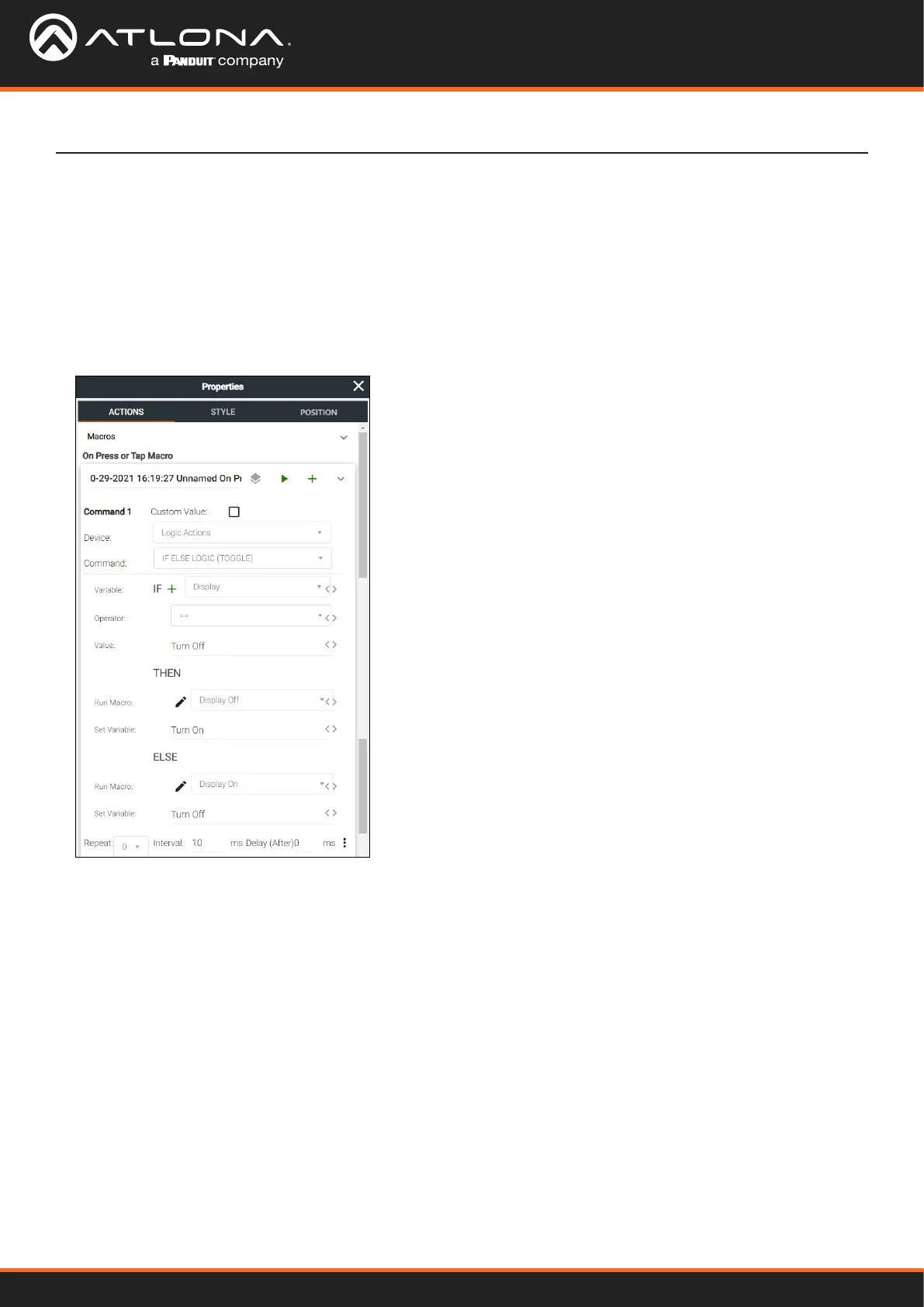

• Open the Display button’s edit menu.
• For this example, the IF ELSE selection will be used. This will provide a way to toggle between functions with
each click of the button.
Device - Velocity
Command Parameters - IF ELSE LOGIC
IF
Variable - (select a variable from drop down list)
e.g. Display
Operator - (select an operator from drop down list)
e.g. == (equals to)
Value - (Provide the variable value to match, that will
trigger the THEN values)
e.g. Turn On
THEN
Run Macro - (Select from previously created macros)
e.g. Macro - Turn display on
Set Variable - (Enter the new value for the variable)
e.g. Turn O
ELSE
Run Macro - (Select from previously created macros)
e.g. Macro - Turn display o
Set Variable - (Enter the new value for the variable)
e.g. Turn On
With these values, if the button is pressed while it says Turn On, it will send the Macro to turn on the display and then
switch the variable to say Turn O.
If the button doesn’t say Turn On, then it will send the ELSE portion of the command, which will send the sleep
command and turn o the display, setting the variable to say Turn On.
IF ELSE
IF ELSE macros can be used when using a variable to prompt commands based on multiple values, such as using a
button to toggle a device on and o.
