Velocity
124

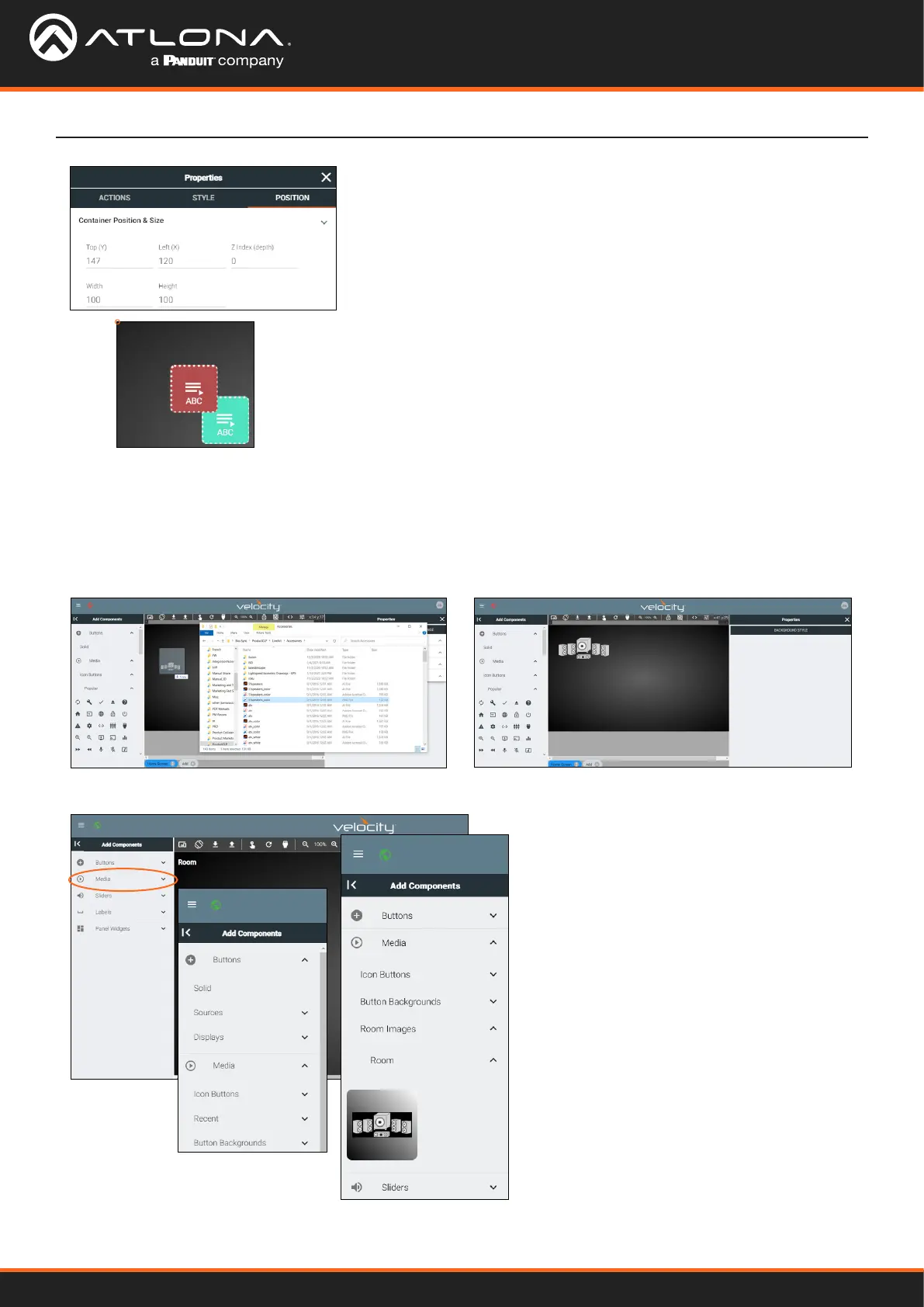

Custom Control Interface
Top: 0
Left: 0
Z I - 1
Z I - 0
Position
• Top / Left - These numbers will adjust the distance from the left or top
of the screen that the eld will appear.
• Z Index - Starting at 0, this will provide the order in which elds will
appear. e.g. If two buttons overlap, the higher Z index will show in
front of the lower Z index eld.
• Width / Height - Edit the size of the eld. Default is 100 by 100 for
buttons/DSP Mute, 200 by 50 for labels, 500 by 300 for thumbnails,
and 300 by 100 for sliders and DSP Gain.
Adding Custom Icons
Custom icons can be added by dragging and dropping the image into the custom UI edit page.
Once a custom icon has been added to any room on the site, it can be accessed through the Media option.
• Select Media, it will provide 3 options.
• Select Room Images, this will display any
room that has custom images added to
them.
• Select the room that has the image need.
• Click on the icon to add the image to the
room.
• Drag and drop - New icons can be added by dragging an image le (.PNG, .JPG, .JPEG, or .BMP) from the
local computer onto the page edit screen. A plus sign will appear on the icon as it is dragged into the edit
eld and then it can be released. Once released, the image will appear as a button.
