Velocity
105

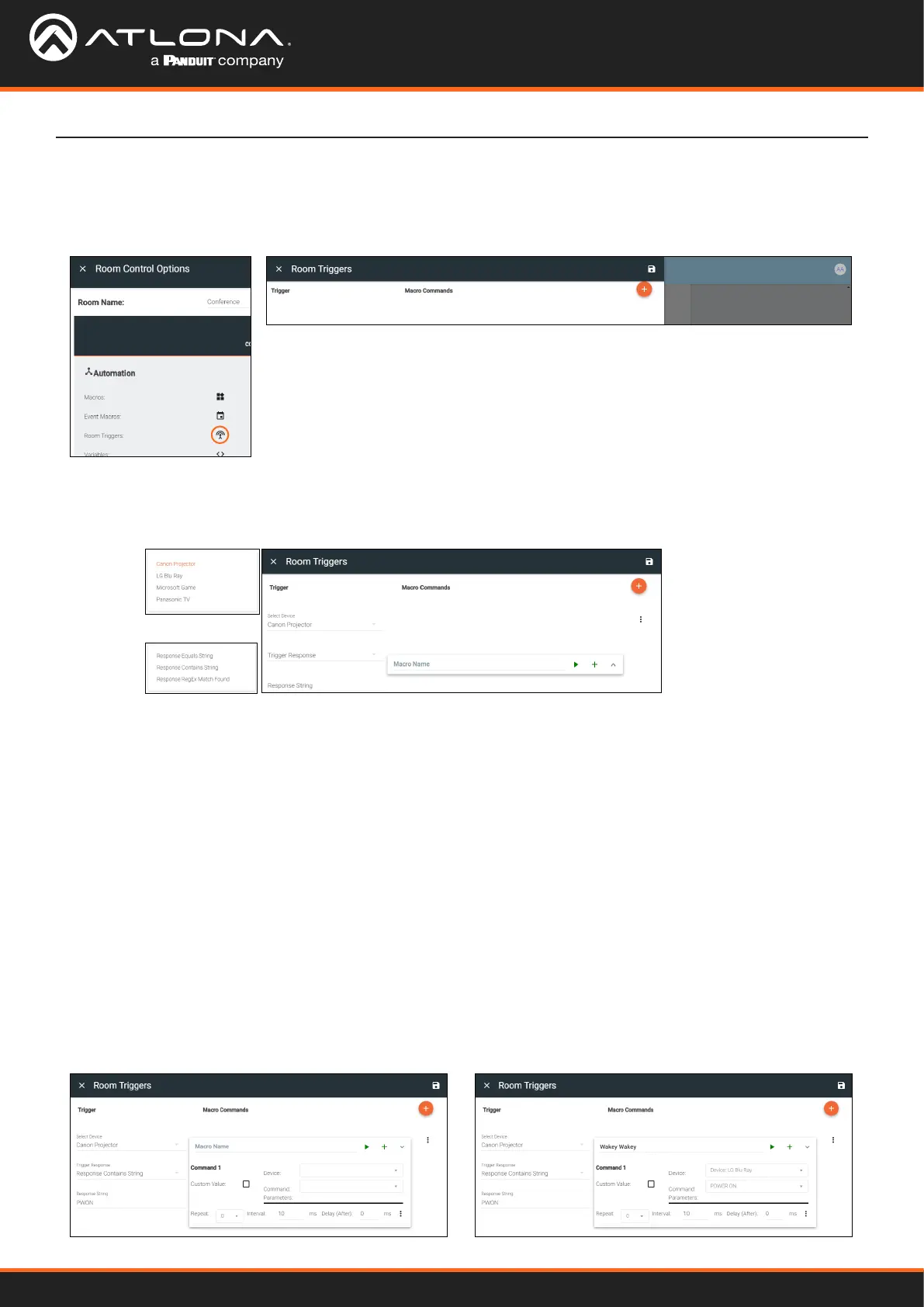

Macros & Conditions
Room Triggers
2. Press the + (add macro) button from the top right corner. A new selection will appear in the screen.
3. Select the control device (e.g. Velocity Command Converter) from the Select Device drop down menu. New
options will appear below the device.
• Trigger Response - Select whether the device macro command will be triggered by an exact response
string, a response containing the string, or a regular expression through TCP feedback responses.
◊ Response Equals String - When Velocity receives the exact Response String entered, this command will
trigger. Commands are case sensitive. e.g. If the response string is PWON and Velocity receives pwON as
the feedback, nothing will trigger. If Velocity receives PWON, then the macro commands will trigger.
◊ Response Contains String - When Velocity receives a feedback that contains the Response String entered,
this command will trigger. Commands are case sensitive. e.g. If the response string is PWON and Velocity
receives PWSTA as the feedback, nothing will trigger. If Velocity receives PWSTA PWON as feedback, the
event macro will trigger.
◊ Response RegEx Match Found - When feedback that contains the parameters specied in the RegEx
search is received, this event will trigger. e.g. The response string in the RegEx search pattern is a(b|c) and
Velocity detects bc nothing will happen, but if it receives ab it will trigger the created macro because the
RegEx search pattern is looking for either ab or ac.
• Response String - Type in the response string that will be received to trigger the commands.
• Select Setting *AT-VCC-RELAY only* - Select the sensor that will trigger the macro.
• Value *AT-VCC-RELAY only* - Set the value of the sensor that triggers the command macros.
4. Once the trigger settings have been selected, press the edit button on the Macro Commands eld.
Room Triggers are commands triggered when a specic value/event occurs.
1. Select the Room Triggers button. A new screen will slide open.
