Velocity
100

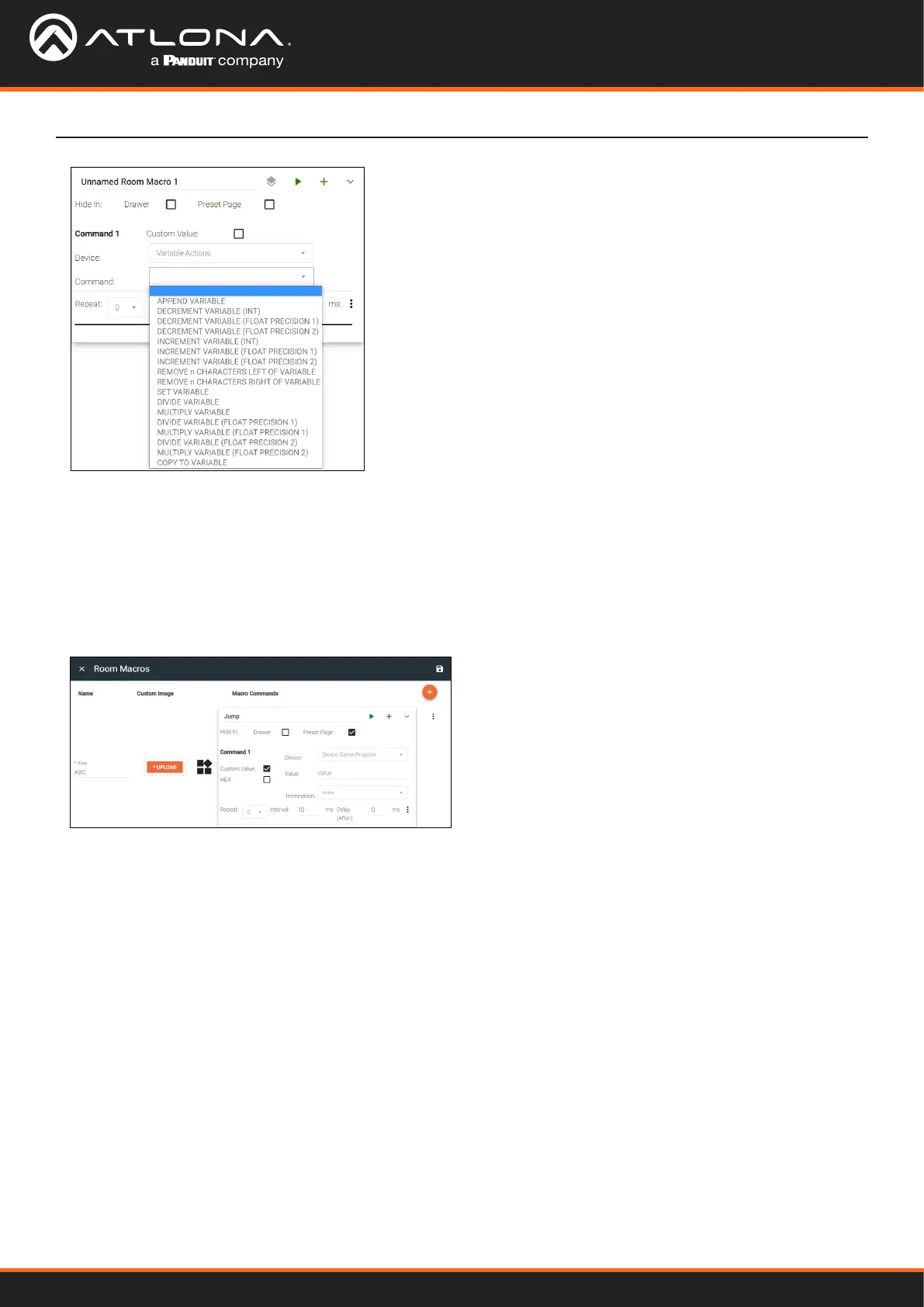

Macros & Conditions
◊ Increment Variable (Float Precision 1) - This will increase a
variable by the set 1/10th value (e.g. 0.1). This will be used with
the Custom Control Interface buttons.
◊ Increment Variable (Float Precision 2) - This will increase a
variable by the set 1/100th value (e.g. 0.01). This will be used with
the Custom Control Interface buttons.
◊ Remove n Characters left of Variable - This will remove a set
amount of characters from the left side of a variable value. This will
be used with the Custom Control Interface buttons.
◊ Remove n Characters right of Variable - This will remove a set
amount of characters from the right side of a variable value. This
will be used with the Custom Control Interface buttons.
◊ Set Variable - Use to change a variable value. This will be gone
over more in the Custom Control Interface section.
◊ Divide Variable - This will divide the variable by the set value.
◊ Multiply Variable - This will multiply the variable by the set value.
◊ Divide Variable (Float Precision 1) - This will divide the variable by the set 1/10th value (e.g. 0.1).
◊ Multiply Variable (Float Precision 1) - This will multiply the variable by the set 1/10th value (e.g. 0.1).
◊ Divide Variable (Float Precision 2) - This will divide the variable by the set 1/100th value (e.g. 0.01).
◊ Multiply Variable (Float Precision 2) - This will multiply the variable by the set 1/100th value (e.g. 0.01).
◊ Copy to Variable - This macro will copy one variable’s value to another variable when triggered.
• Repeat - Select how many times the command is sent out when the macro is selected within room control.
• Interval - Set the amount of milliseconds between when the command is rst sent and then repeated.
• Delay - Set the amount of time delay between the current command and the next command being sent.
Each macro can be programmed to send multiple commands, use the plus button next to the command name to
add a second command to the macro.
• Custom Value - Select the check box to open up
additional options and to add a new command for the
selected device within the room. The custom com-
mand is available in this current room only.
◊ HEX - Select if the command will be written in HEX
rather than ASCII.
◊ Termination - Select the command termination from
the drop down: CR (Carriage Return), CRLF (Carriage
Return and Line Feed), LF (Line Feed), or none.
◊ Value - Type out the command exactly as the
device’s manual/API writes it.
• : - use this option to delete, copy, or move the commands up or down. This allows for the commands to be
sent in the correct order needed, entered easily with similar commands, or removed when no longer needed.
.
