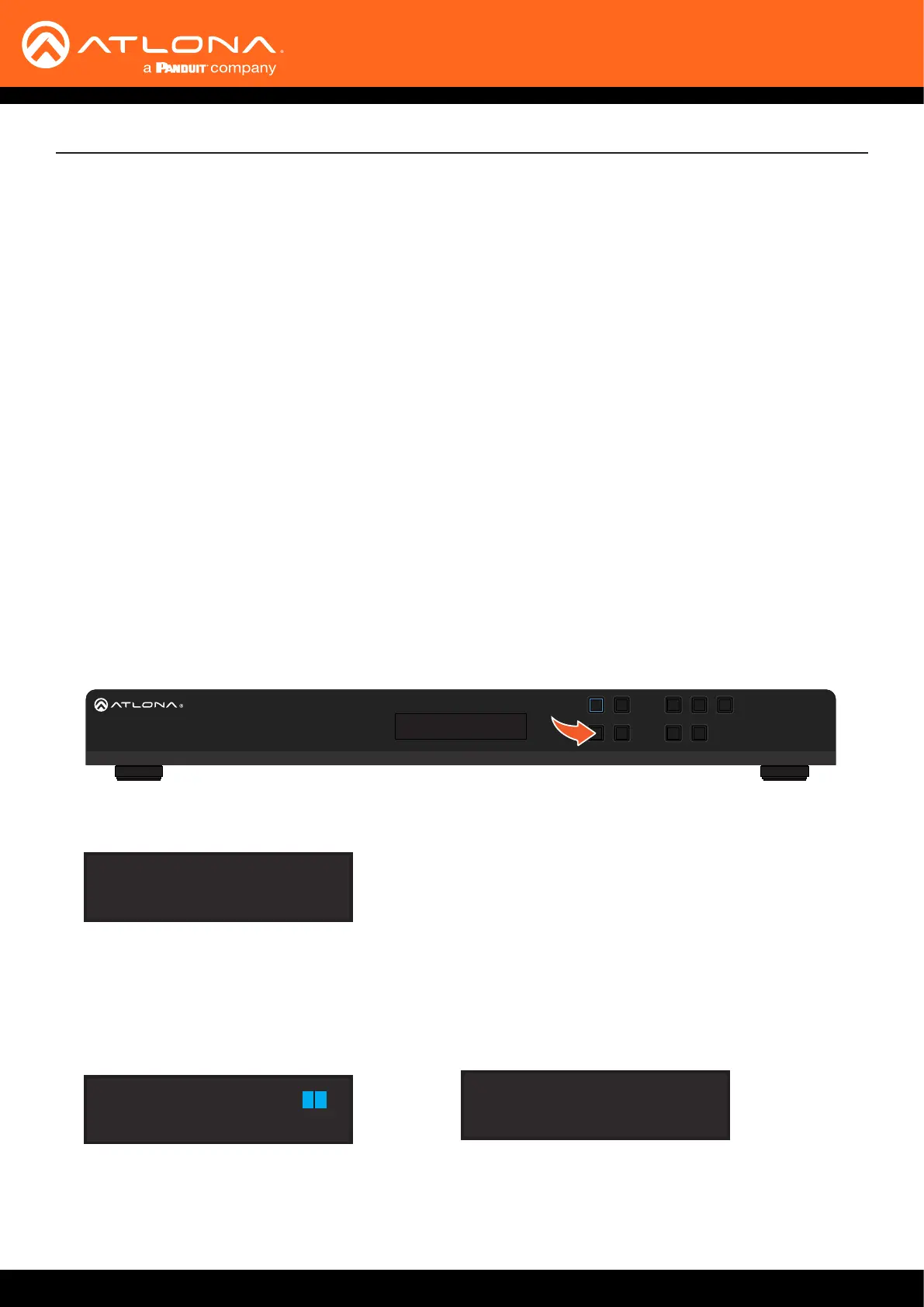

AT-UHD-PRO3-44M
36
Basic Operation
1. Make sure the home screen is displayed. If the home screen is not displayed, press the CANCEL button to
return to the home screen.
2. Press the FNC button to display the SELECT FUNCTION screen.
EDID is an acronym for Extended Display Identication Data. Before a source can send a picture and/or audio to
a display (or other sink device), the source requests information from the display on what video and audio formats
it can support. Once the source has this information, it will send the supported picture and audio resolution that is
supported by the display. By default, the AT-UHD-PRO3-44M loads a “default” EDID on all inputs. This particular
EDID provides the source with the highest common resolution and audio information that is supported by all
connected displays.
For example, if the matrix is connected to a single 1080p display and two 4K/UHD displays, the 1080p resolution will
be used, allowing all three displays to display a picture. However, there may be instances where a specic EDID is
desired. The AT-UHD-PRO3-44M allows EDID data to be stored, loaded, and copied.
The AT-UHD-PRO3-44M provides 14 pre-programmed internal EDID selections. These EDID presets can be loaded
to any one of the eight inputs (HDMI or HDBaseT). Custom EDID data can also be copied to any input. Refer to
Copying a Downstream EDID (page 39) for more information.
EDID Management
Loading EDID Presets
4. Press button 2 to select Choose Input EDID.
5. Enter the input to where the EDID will be copied. Valid entries are 1 through 8.
Once the input is entered, the matrix will conrm the entry. If another input is desired, enter it using the front
panel buttons. Information on the current EDID will also be displayed on this screen.
1. copy output edid
2. choose input edid
3. Press the EDID button to display the EDID screen.
select input edid
input:01 press enter
current:internal 02
Using the Front Panel
