1. Make sure the home screen is displayed. If the home screen is not displayed, press the CANCEL button to
return to the home screen.
2. Press and release the desired input from the bank of numerical buttons on the front panel. In this example,
HDMI IN 3 will be selected by pressing button 3.
When the AT-UHD-PRO3-44M is shipped from the factory, the matrix is set to “one-to-one” routing mode. This
means that input 1 is routed to output 1, input 2 is routed to output 2, and so on. The following section describes
how to change the routing state. When changing the routing state, the input is specied rst, then the output.
The AT-UHD-PRO3-44M can route individual inputs to outputs or can route a single input to all outputs,
simultaneously.
4. Press the button for the desired output. If a dierent output is desired, press the CANCEL button to return to the
home screen, then press the button of the desired output. In this example, HDBaseT OUT 4 will be selected by
pressing button 4.
5. Press the ENTER button to complete the routing process. The front panel display will conrm the current routing
selection.
RX
TX
S
OFF
ON
2 3 4 21 3 41
L
1
R
2
L R
3
L R
1ED
2
3
4 5
1 2
3 4
IR OUT
PWR: 100-240VAC 50/60Hz
IR IN
S
S
S S S
S S
S
AUDIO OUT
HDMI IN
ZONE OUTIR IN LAN
FW
RS-232
EDID
POWER ENTER
FNC CANCEL INFO
1
2 3
4
5

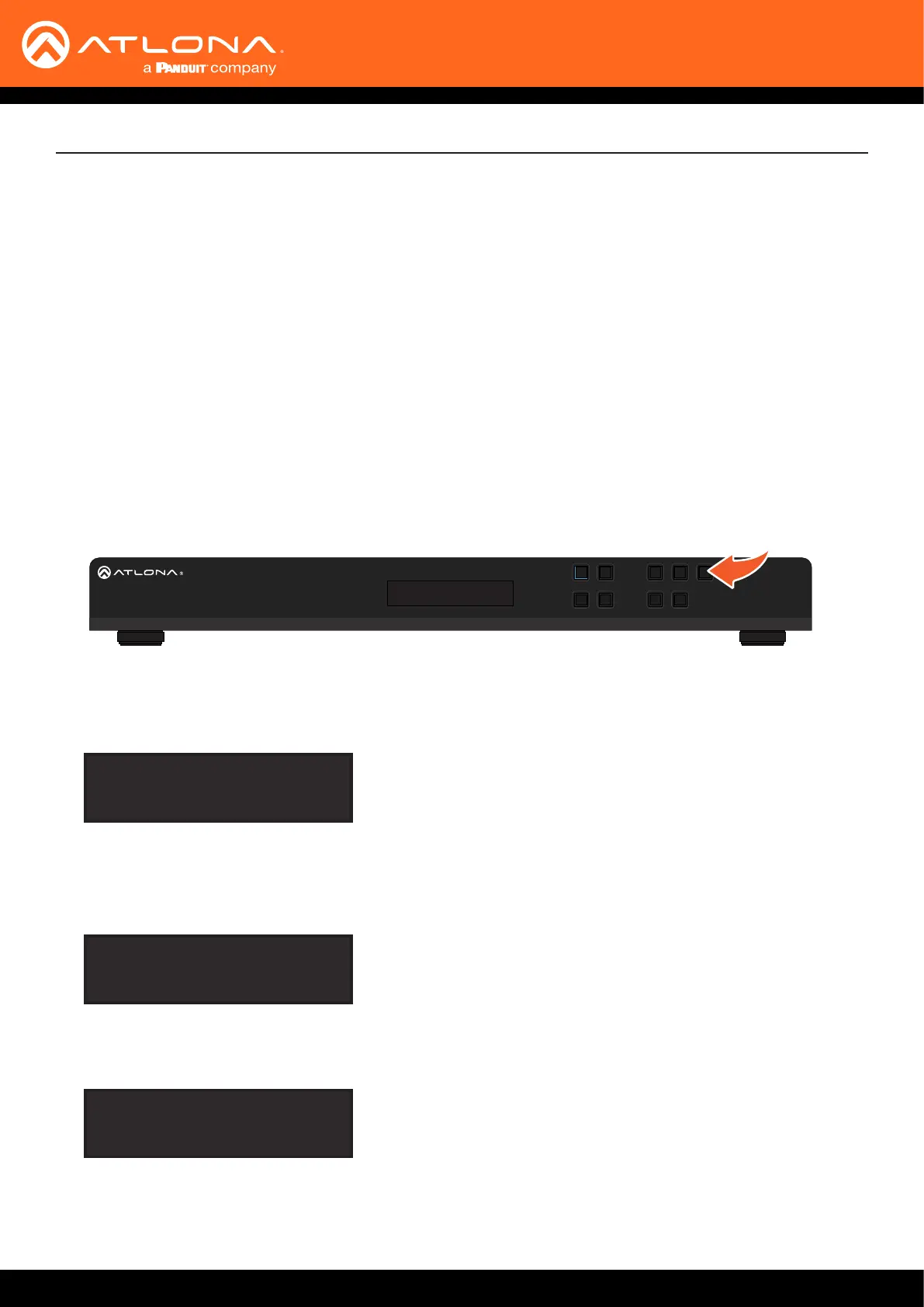

AT-UHD-PRO3-44M
Basic Operation
Select input 03
enter to confirm
Select OUTPUT 04
enter to confirm
iNPUT 03 ROUTED to
OUTPUT 04
Routing Inputs to Outputs
3. Press the ENTER button to conrm the selected input. If a dierent input is desired, press the CANCEL button
to return to the home screen, then press the button of the desired input.
Single Input-to-Output Routing
Using the Front Panel
