AT-UHD-PRO3-44M

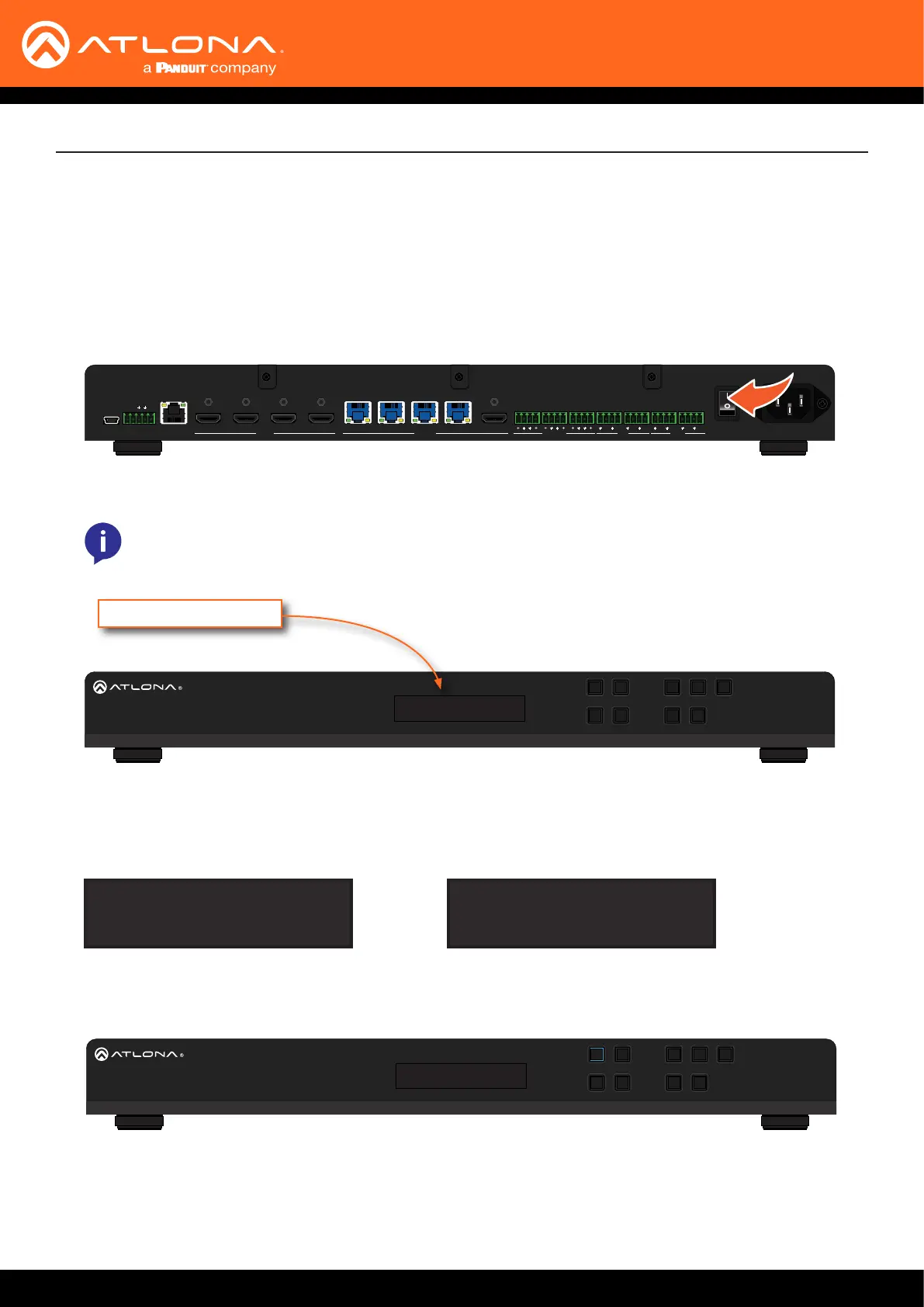

Basic Operation
Powering the Matrix
The master power button is located on the rear panel of the matrix. This rocker switch allows power to be applied to
the matrix.
1. Press the ON/OFF button so that it is in the ON position. To power-o the matrix, push the button to the
OFF position. During the power-on procedure, the backlight on the POWER button will ash blue/red. Once
complete, the POWER button will be backlit with a solid blue light.
2. The front panel display will indicate that the matrix is initializing. After a few moments the home screen will be
displayed.
3. The matrix is now ready for operation.
AT-UHD-PRO3-44M
INITIALIZING
AT-UHD-PRO3-44M
Select Input Number
Initialization Screen Home Screen
NOTE: If the matrix does not power, check to make sure that the power cable, on the rear of the
unit, is connected to an active AC wall outlet. Also verify that the ON/OFF switch is in the ON
position.
Front Panel Display
