AT-UHD-PRO3-44M
13

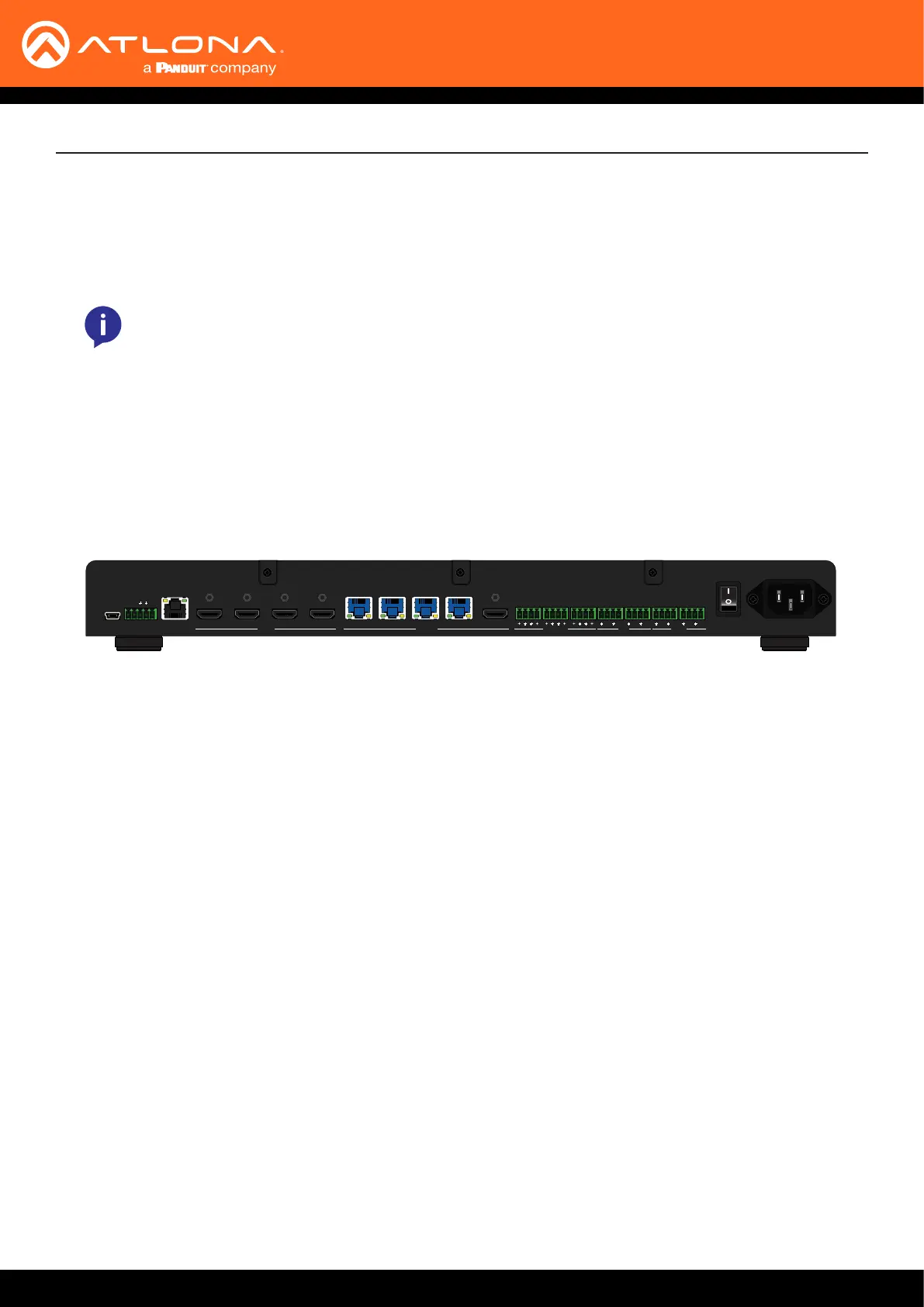

Connection Instructions
Installation
1. Connect up to four HD/UHD sources to the HDMI IN (1 - 4) ports.
2. Connect up to four PoE-compatible receivers (e.g. AT-UHD-EX-100CE-RX) to the ZONE OUT (1ED - 4) ports
using Ethernet cables.
6. Connect a control system to the matrix using the RS-232 IR IN port. Both RS-232 and electrical IR are
supported. Refer to RS-232 Control (page 45) and IR Control (page 50) for more information.
7. Connect up to three audio output devices (e.g. AT-GAIN-60) to the AUDIO OUT (1 - 3) ports using the included
4-pin captive screw blocks. Refer to Audio Connectors (page 13) for wiring instructions.
8. Connect a third-party control system to the IR IN (1 - 4) ports. IR will be transmitted over the HDBaseT OUT
port to control displays or other sink devices which are connected to the receiver endpoint. Refer to and IR
Control (page 50) for more information.
9. Connect up to four IR emitters to the IR OUT (1 - 6) ports, allowing IR control of source devices at the headend.
Refer to and IR Control (page 50) for more information.
OPTIONAL
3. Connect a HD/UHD display to ZONE OUT 5 using an HDMI cable. This port can be used for receiving an input
source or can be used for mirroring. Refer to Output Mirroring (page 25) for more information.
4. Connect an Ethernet cable from the LAN port to a Local Area Network (LAN). This step is required in order to
access the Web GUI and/or use the matrix for IP control.
5. Connect the included power cable from the PWR 100-240VAC 50/60Hz power receptacle to an available AC
power outlet.
NOTE: Port 1ED is used for “extended distance” connections and is capable of extending up to 330
feet (100 meters). Ports 2 through 4 are limited to a maximum distance of 230 feet (70 meters).
RX
TX
S
OFF
ON
2 3 4 21 3 41
L
1
R
2
L R
3
L R
1ED
2
3
4 5
1 2
3 4
IR OUT
PWR: 100-240VAC 50/60Hz
IR IN
S
S
S S S
S
S
S
AUDIO OUT
HDMI IN
ZONE OUTIR IN LAN
FW
RS-232
EDID
POWER ENTER
FNC CANCEL INFO
1
2 3
4
5
AT-UHD-PRO3-44M
