AT-UHD-HDVS-300-KIT
45

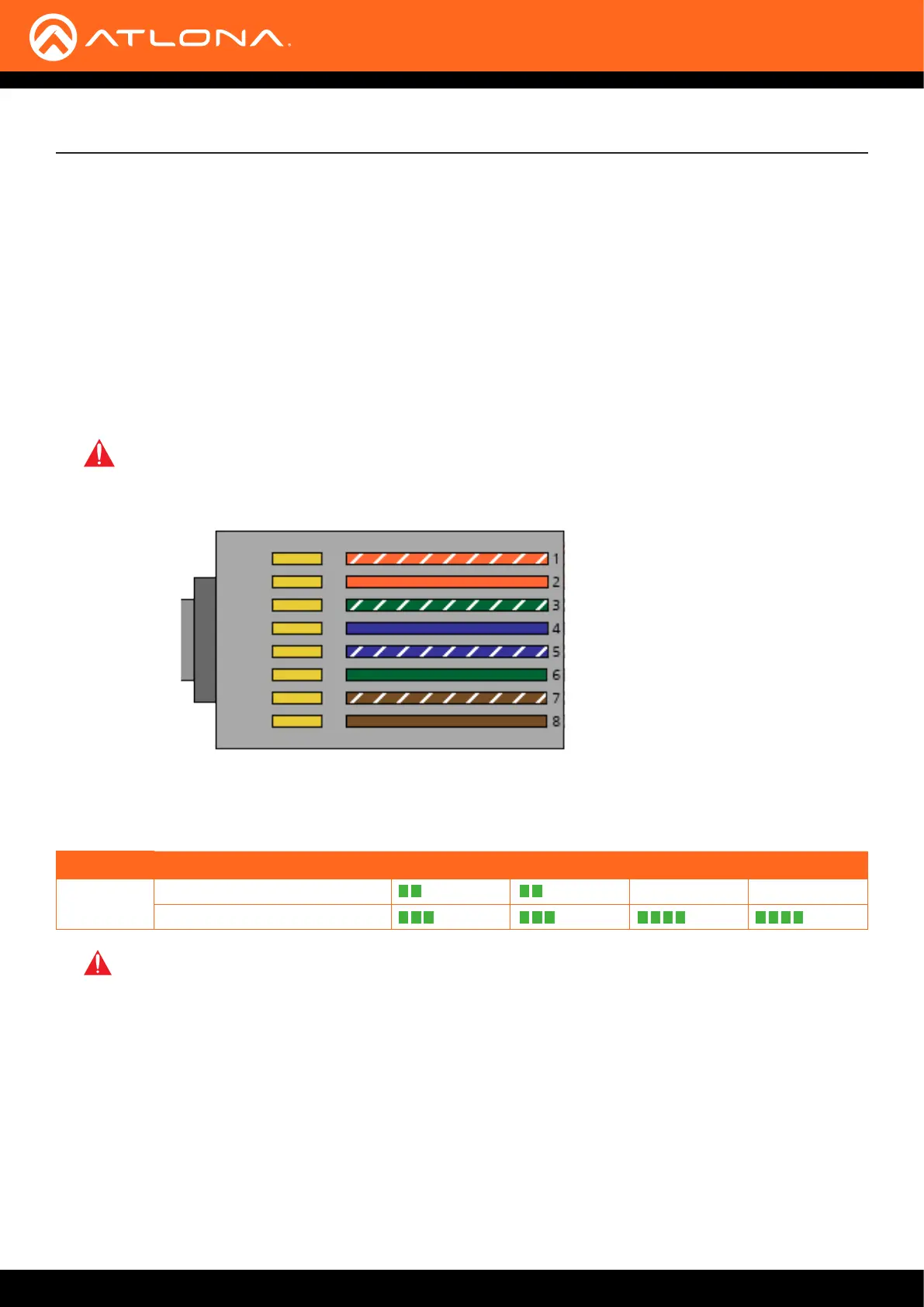

Atlona recommends EIA/TIA-568-B termination. Connector type and size is very important to ensure extenders work
correctly. Always use the matching cable type with the correct RJ45 connector.
1. White - Orange
2. Orange
3. White - Green
4. Blue
5. White - Blue
6. Green
7. White - Brown
8. Brown
Cable Termination
WARNING: EZ RJ45 connectors are not recommended with HDBaseT extenders. Doing so may result
in interference with audio and video transmission.
Appendix
Core Cable Type CAT5e CAT6 CAT6a CAT7
Solid Unshielded Twisted Pair (UTP) N/A N/A
Shielded Twisted Pair (STP)
Refer to the tables below for recommended cabling when using Altona products with HDBaseT. The green bars
indicate the signal quality when using each type of cable. Higher-quality signals are represented by more bars.
EIA/TIA 568-B Termination
IMPORTANT: Stranded or patch cables are not recommended due to performance issues.
• CAT5e cables should use only CAT5e RJ45 connectors
• CAT6 cables should use only CAT6 connectors
• CAT6a cables should use only CAT6a connectors
• CAT7 cables should use only CAT7 connectors
Using the wrong size connectors may result in interference causing loss of signal.
