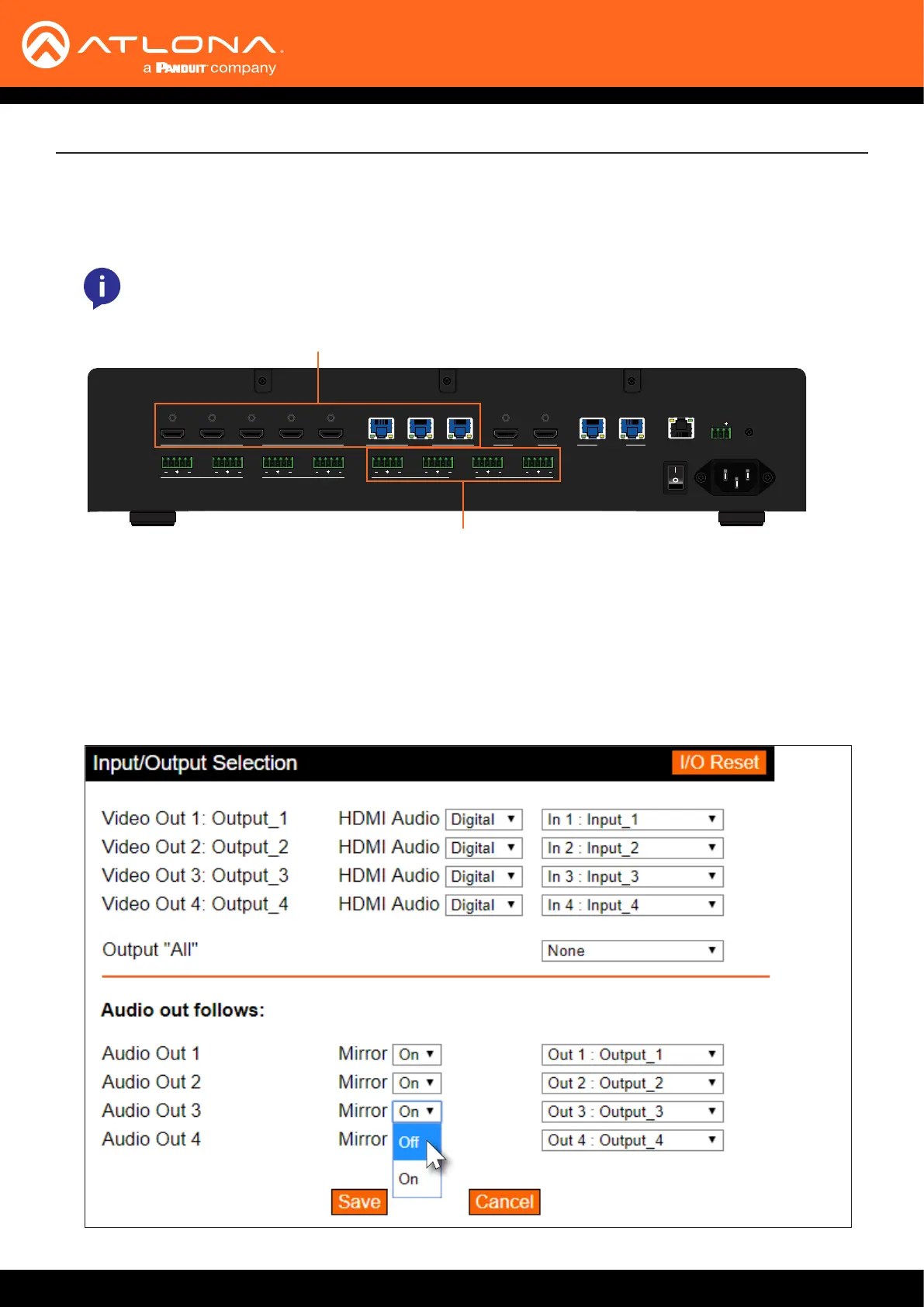

Audio can be de-embedded from the digital inputs (HDMI IN 1 - 5, HDBaseT 6 - 8) and routed to any one of the
analog audio outputs (AUDIO OUT 1 - 4). Source audio is automatically down-mixed to two-channel audio.
Digital Inputs to Analog Audio Outputs
HDMI IN HDBaseT IN
R L
1
R L
2
76 8
21 3 4
4321 5
R L
3
R L
4
R L
1
R L
2
R L
3
R L
4
HDBaseT OUT LAN
ON
OFF
PWR 100-240VAC 50/60Hz
RS-232
HDMI OUT
AUDIO IN AUDIO OUT
+ +
+ +
+ ++ + + +
+ +
+ +
+ +
RX TX
AT-UHD-CLSO-840
FCN CANCEL EDID
INFO
POWER ENTER 5 6 7 8
1 2 3 4
Digital Inputs
Analog Audio Outputs
1. Login to the web GUI. Refer to Introduction to the Web GUI (page 55) for more information.
2. Click I/O, under the Conguration section, in the menu bar on the left side of the screen.
3. Locate the desired output under the Audio out follows section. In this example, digital audio from HDMI IN 2
will be routed to AUDIO OUT 3.
4. Click the Mirror drop-down list for Audio Out 3, and select O. Once mirroring is disabled, the drop-down list to
the right will display the available inputs.
Basic Operation
NOTE: Only LPCM audio can be down-mixed to two-channel audio. Bitstream audio formats, such
as Dolby® Digital or DTS® are not supported.
