4
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Panel Description

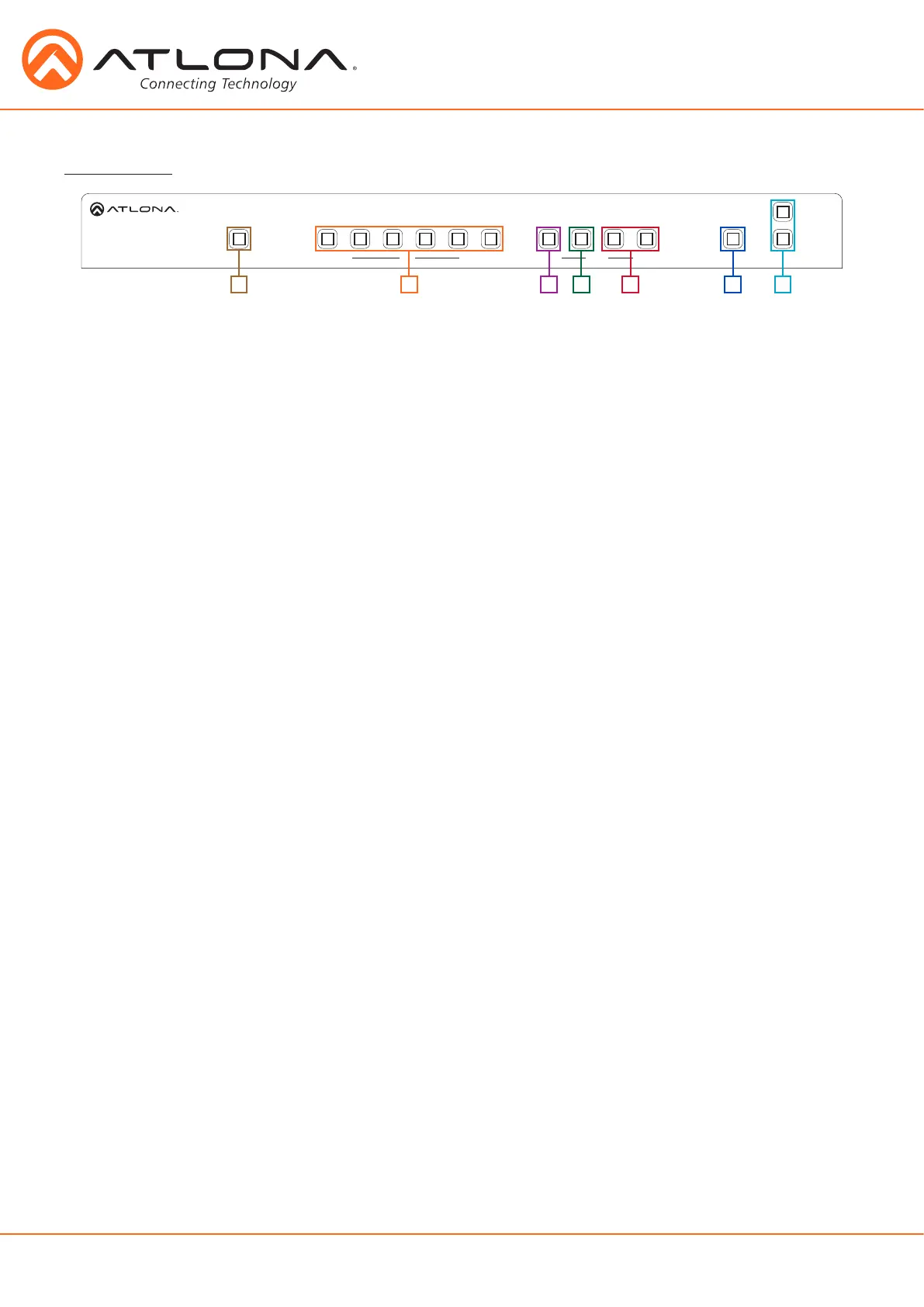

Front Panel
1. Power: Use to turn the unit on, place into standby, or turn the display on/off. LED will illuminate
blue for on and red for standby
2. Input: Switch between inputs - current input is blue
1 - HDMI input 1 - Used while updating MCU firmware
2 - HDMI input 2 - Used while updating OSD firmware
3 - HDBaseT input 1 - Used while updating DSP firmware
4 - HDBaseT input 2 - Used while updating FPGA firmware
5 - Multifunction analog input 1
6 - Multifunction analog input 2
3. Menu: Access the OSD menu - also used as a back button within the OSD
4. Enter: Select options within the OSD menu
5. < and >: Changes values of the currently select option (e.g. contrast to 50)
6. Mute: Silences all audio output from the CLSO-612ED and (when programmed - see page X) mutes
the display
7. Volume ^/ : Used to adjust volume (CLSO or Display) and navigate the OSD menu
1 2 3 4 5 6 7
1 2
3
4
HDMI IN
AT-UHD-CLSO-612ED
RS-232 RS-232
POWER 1 2 3 4 5 6 ENTER MUTE
VOLUME
>
<
<
<
MENU
AUDIO INMIC/LINE IN
5 6
HDBaseT IN
VGA IN HDMI OUT
HDBaseT OUT
INPUT FUNCTION
1
2
5 6 7L R
5
L R
6
TX TXRX RX
TXRX
RS-232
OUT
MASTER
IN
L R
TXRX
RS-232
TXRX
RS-232
TXRX
-
+
-
+
-
+
AUDIO IN
-
+
-
+
AUDIO OUT
-
+
-
+
P
S
S
48V
MIC
LINE
DC 48V
-
+
FW
LAN
^
