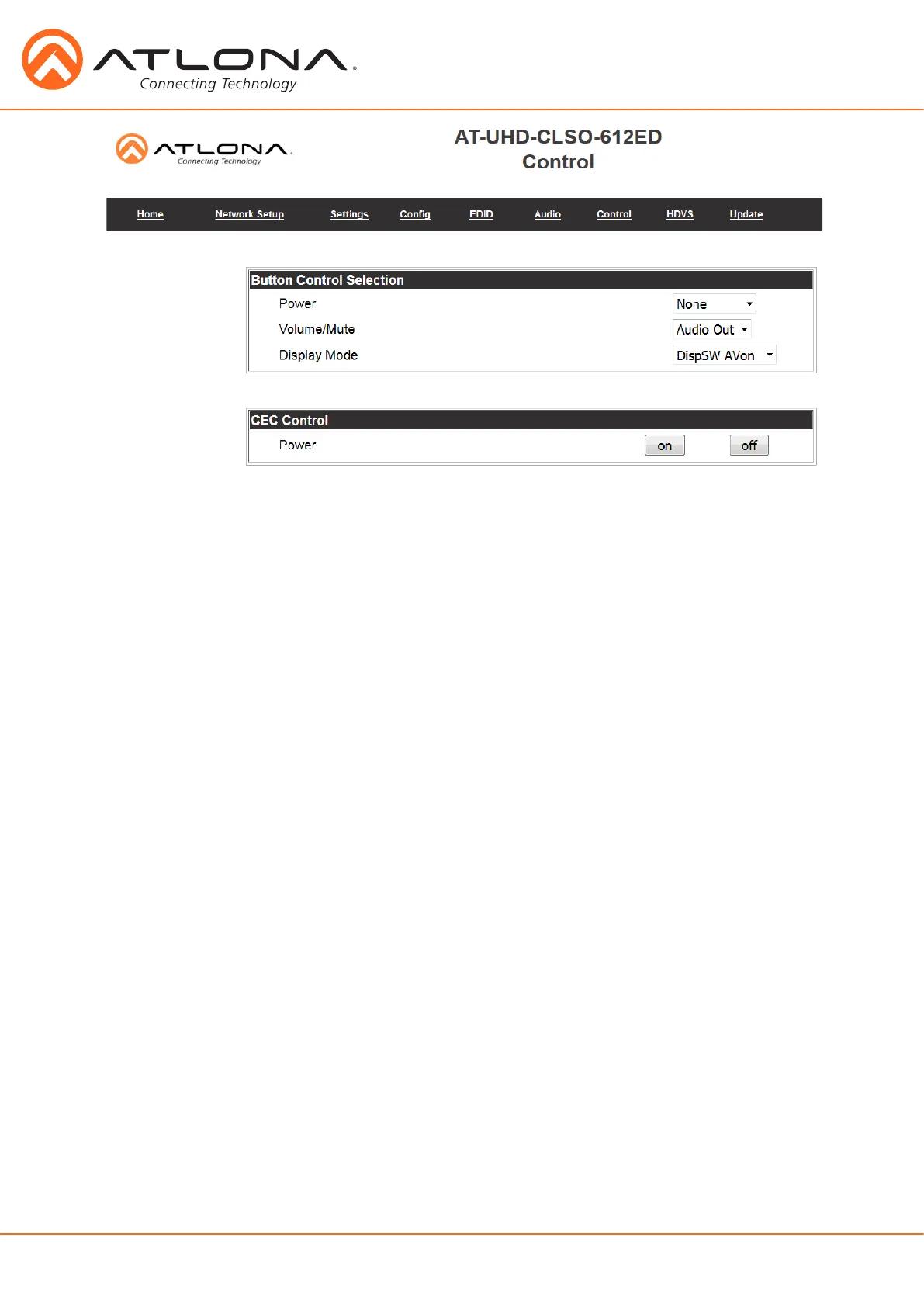

The Control Page includes settings which enable display controls by the switcher. It provides a
way to program button functions, turn auto switching on/off, and determine the type of control
commands (TCP/IP or RS-232) sent out.
Button Control Selection
Power - Set which device the power button controls
None: Power button will turn the UHD-CLSO-601 on and off
RS-232: Power button will send power on/off command over HDBaseT using RS-232 to
compatible receivers and displays
IP: Power button will send power on/off command over Ethernet using either the LAN
connection or the HDBaseT connection
CEC: Sends CEC command over HDBaseT to the HDMI output of the receiver
Volume/Mute
Audio Out: Volume and mute buttons will control volume output of the switcher
RS-232: Volume/Mute buttons will send the commands over HDBaseT or RS-232 zone 7,
using RS-232 to compatible receivers and displays
IP: Volume/Mute buttons will send the commands over Ethernet using either the LAN
connection or the HDBaseT connection
Display Mode - Sets functionality of the power button
DispSW AVon: Display switches on/off, source audio/video signal always on
DispSW AVSW: Display switches on/off, source audio/video signal switches on/off
AV SW: Display is always on, source audio/video signal switches on/off
Always ON: No function
Note: Must be in DispSW AVon or DispSW AVSW for RS-232 display control to work
CEC Control
Power
On - Sends a command over HDBaseT to the HDMI output of the connected receiver to turn
the connected display on
Off - Sends a command over HDBaseT to the HDMI output of the connected receiver to turn
the connected display off
Note: CEC may not work with every display type. See notice at the bottom of page 3 for more information.
