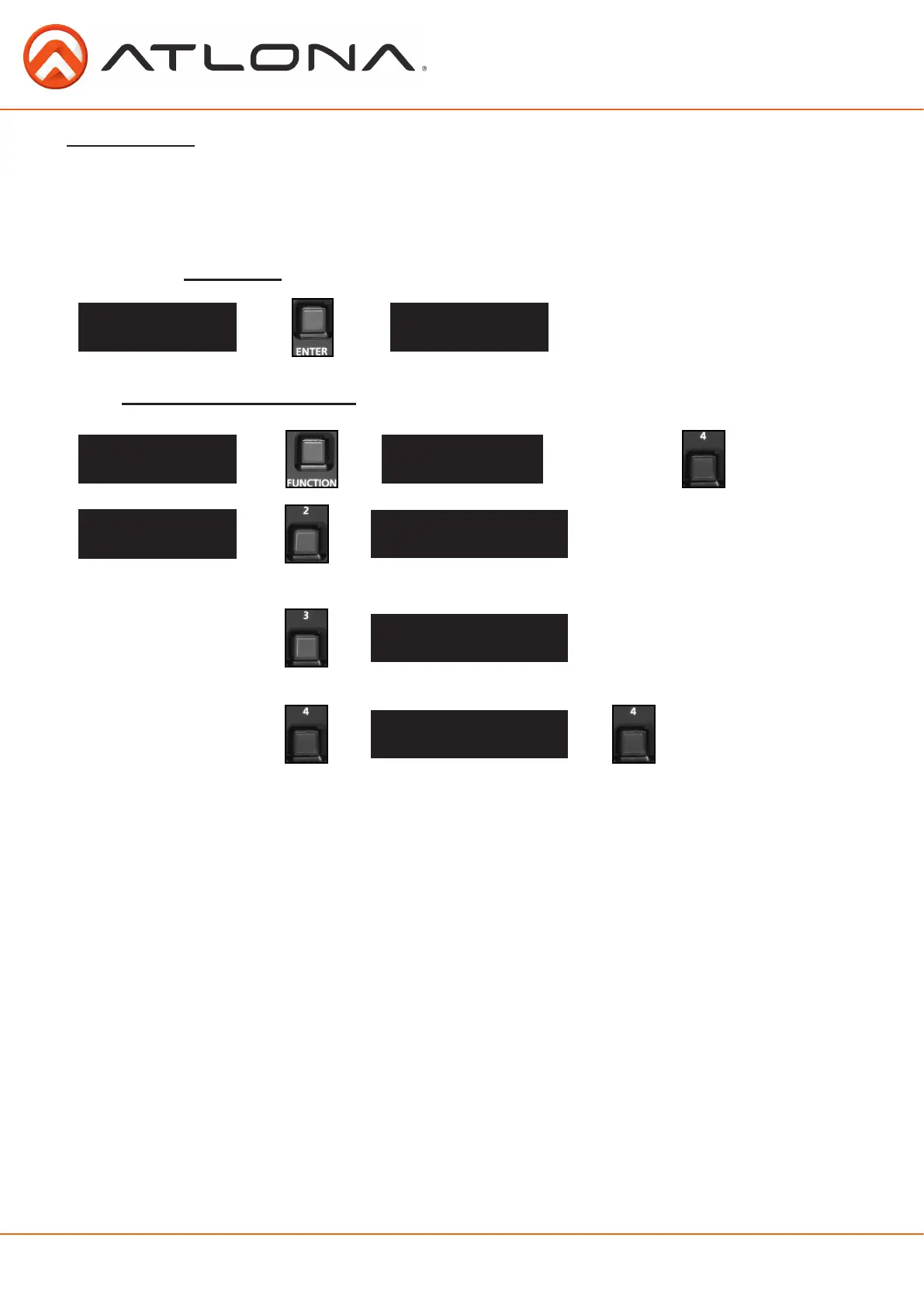

Matrix Status
When installing or troubleshooting it’s important to verify settings, or be able to come back to a
project and see how it was set up. The AT-PRO3HD44M matrix settings are viewable through the
front panel display. View current I/O settings, firmware version, FPGA version, and the baud rates
of not just the matrix but extenders as well.
---> ---> --->
--->
AT-PRO3HD44M
Select Input Number
AT-PRO3HD44M
FW Ver: 0.3.XX
AT-PRO3HD44M
Select Input Number
O 1 2 3 4
I x x x x
Select Function Option
home screen
home screen
View Firmware/Baud Rate settings
View current I/O settings
AT-PRO3HD44M
IP X.X.X.X
AT-PRO3HD44M
Console: X X X X
AT-PRO3HD44M
Port 1: X X X X
---> --->
--->
--->
--->
--->
Hold for
5 seconds
Matrix Baud Rate
IP Address
Output Baud Rate
--->
--->
--->
---------------------------------------
115200 8 None 1
OR
9600 8 ODD 0
192.168.000.200
Press 4 to cycle through
the baud rates of each
output port.
EX.
EX.
