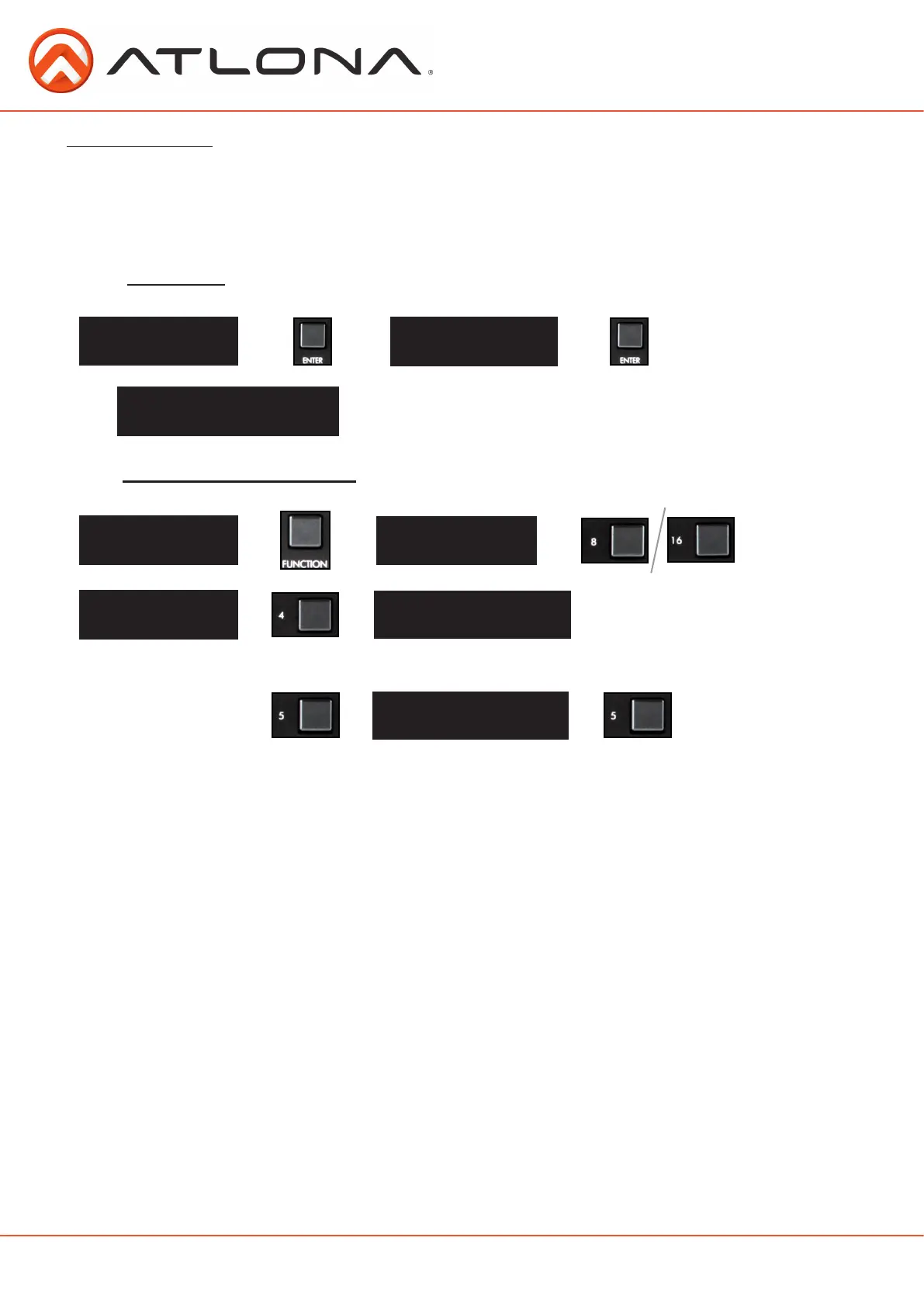

Matrix Settings
When installing or troubleshooting it’s important to verify settings, or be able to come back to a
project and see how it was set up. The AT-PRO2HD has matrix settings viewable through the front
panel. View current I/O settings, firmware version, and the baud rates of not just the matrix but
extenders as well.
---> ---> ---> --->
--->
AT-PRO2HDXXM
Select Input Number
AT-PRO2HDXXM
FW Ver: X.X.XX
AT-PRO2HDXXM
Select Input Number
O 1 2 3 4 5 6 7 8
I x x x x x x x x
O 9 10 11 12 13 14 15 16
I x x x x x x x x
Select Function Option
home screen
home screen
View Firmware/Baud Rate settings
View I/O settings
AT-PRO2HDXXM
Console: X X X X
AT-PRO2HDXXM
Port 1: X X X X
--->
--->
--->
--->
--->
--->
Matrix Baud Rate
Output Baud Rate
--->
--->
--------------------
115200 8 None 1
OR
9600 8 ODD 0
EX.
Hold for
5 seconds
PRO2HD88
PRO2HD1616
Press 5 to cycle through
the baud rates of each
output port.
