AT-OMNI-121 / AT-OMNI-122
15
Installation
External Power (Optional)
OmniStream decoders are powered by PoE (Power over Ethernet), when connected to a PoE-capable switch. If a
PoE-switch is not used, then the optional 48 V power supply (Atlona part no. AT-PS-48083-C) can be purchased,

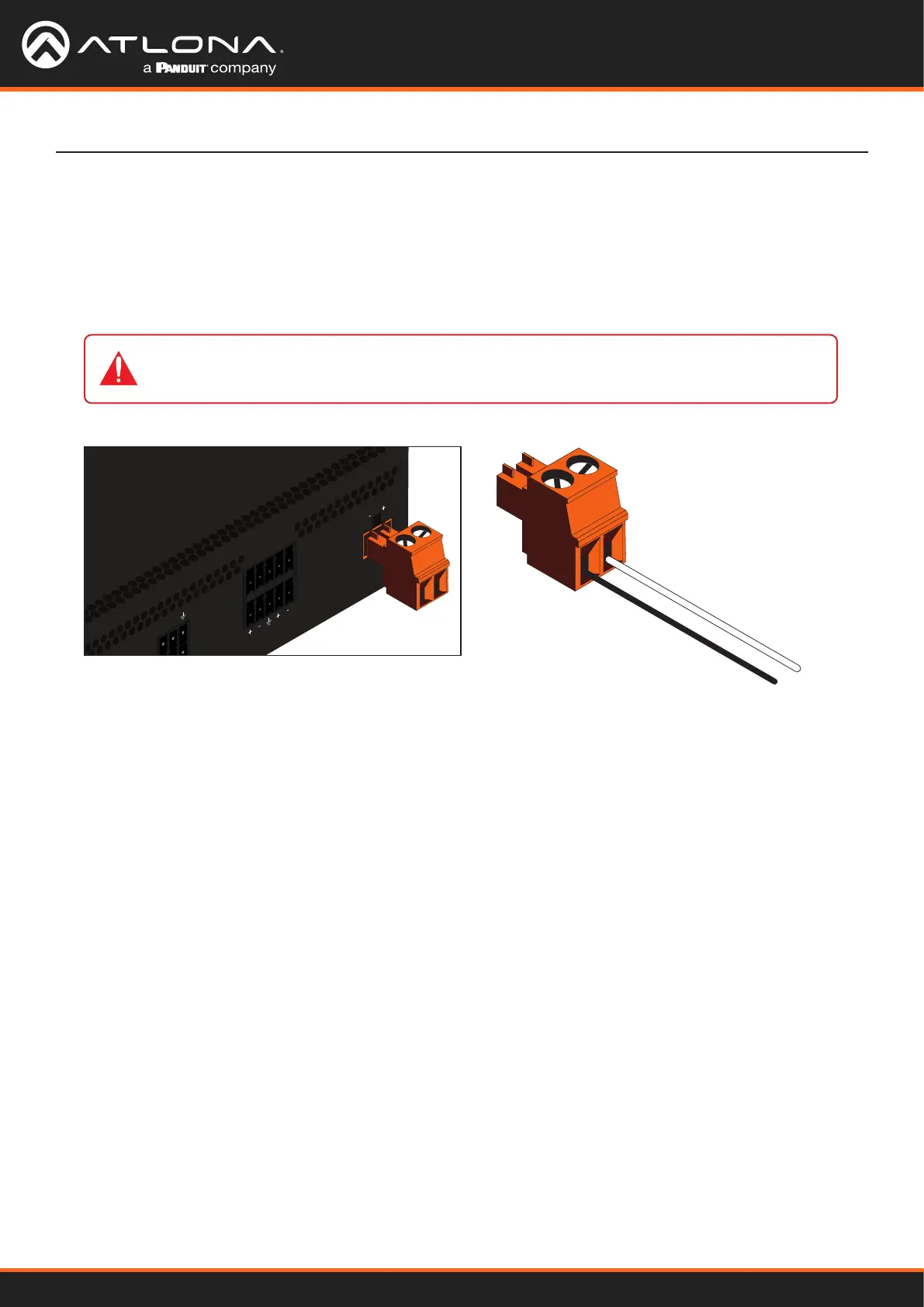

separately. Insert the positive and negative leads, from the power supply, into the terminals of the 2-pin captive
screw connector block, as shown. The orange 2-pin captive screw connector block is included with the OmniStream
power supply package.
AT-OMNI-121
ETHERNET
RS-232
AUDIO
OUT
IN
L
R
DC 48V
RX
TX
1
HDMI OUT
POS
White
Black
NEG
IMPORTANT: The external power supply must be connected to the decoder when embedding
and de-embedding audio using the AUDIO IN and/or AUDIO OUT ports.
