AT-HDVS-200-TX / AT-HDVS-200-TX-PSK
7
HDMI IN 2
RS-232
RX
RL
TX
PW
HDMI
INPUT
DISPLAY
v
v
AT-HDVS-200-TX
VOL
HDMI IN 1 VGA IN AUDIO IN
1
2
VGA
FW RS-232
HDMI IN 2
LAN HDBaseT OUT
RS-232
RX
TX
HDMI IN 2
RS-232
RX
RL
TX
PW
HDMI
INPUT
DISPLAY
v
v
AT-HDVS-200-TX
VOL
HDMI IN 1 VGA IN AUDIO IN
1
2
VGA
FW RS-232
HDMI IN 2
DC 48V LAN HDBaseT OUT
RS-232
RX
TX
+
1 2 87 10 12 14
3 4 5 6 9 11 1513 16 17

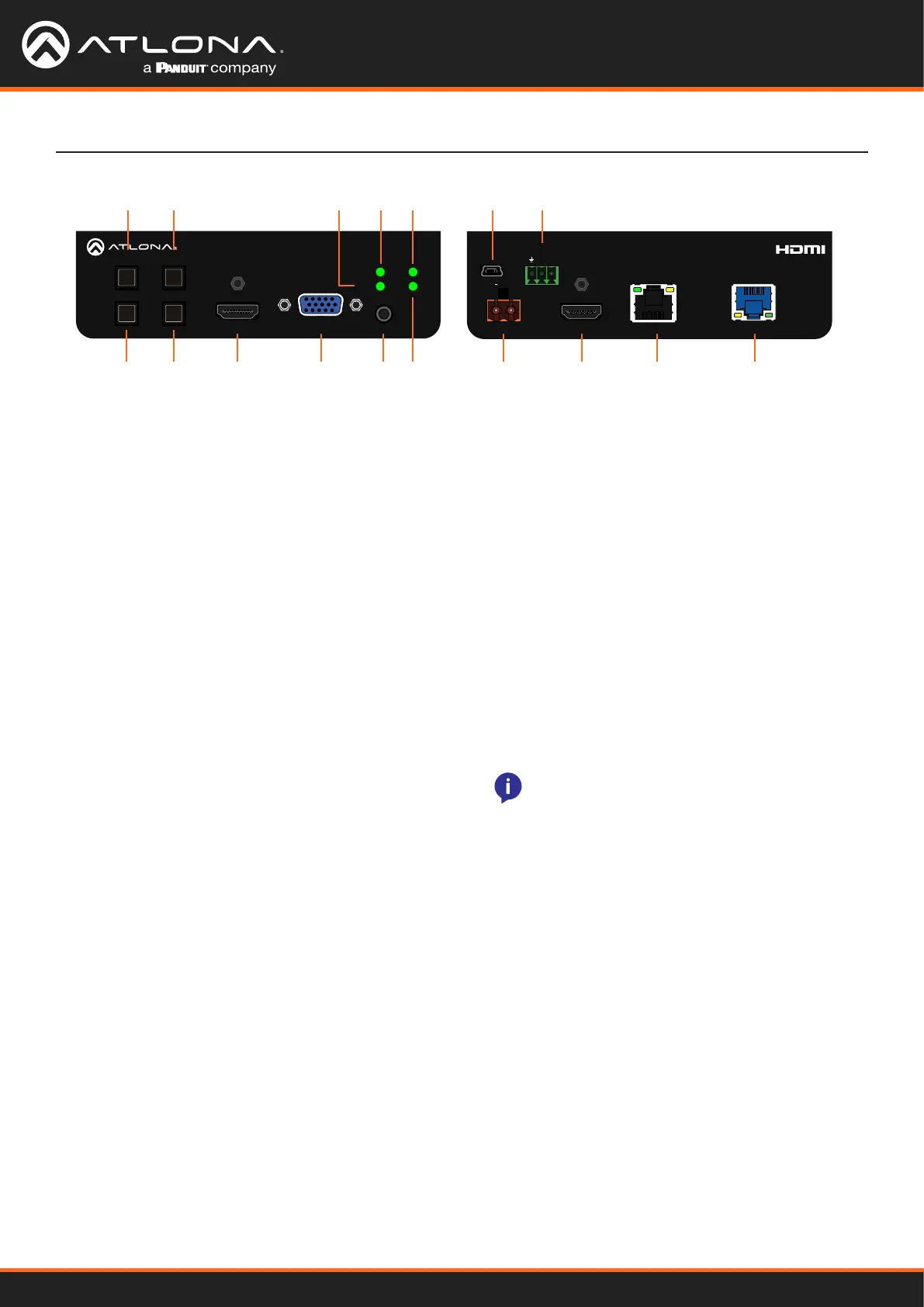

1 INPUT
Press this button to cycle through each of the
available inputs: HDMI IN 1, HDMI IN 2, and VGA
IN.
2 VOL (up)
Press this button to adjust the volume on the
connected display. Refer to Dening the Front-Panel
Buttons (page 12) for more information.
3 DISPLAY
Press this button to trigger user-dened RS-232/
CEC/IP display control commands. Refer to Dening
the Front-Panel Buttons (page 12) for more
information.
4 VOL (down)
Press this button to adjust the volume on the
connected display. Refer to Dening the Front-Panel
Buttons (page 12) for more information.
5 HDMI IN 1
Connect an HDMI cable from this port to an HD
source.
6 VGA IN
Connect a VGA cable from this port to a VGA source.
7 VGA
This LED indicator will glow bright green when the
VGA IN port is selected.
8 PW
This LED indicator will glow bright green when the
switcher is powered.
9 AUDIO IN
Connect a 3.5mm mini-stereo audio cable, from an
analog audio source, to this port.
10 HDMI 1
This LED indicator will glow bright green when the
HDMI IN 1 port is selected.
11 HDMI 2
This LED indicator will glow bright green when the
HDMI IN 2 port is selected.
12 FW
Connect a mini USB to USB-A type cable from this
port to a computer to update the rmware.
Refer to Updating the Firmware (page 35) for more
information.
13 DC 48V
Connect the power supply to this port to power an
HDBaseT receiver, projector, or other PoE device.
14 RS-232
Connect the included 3-pin Phoenix block from this
connector to an RS-232 control device.
15 HDMI IN 2
Connect an HDMI cable from this port to an HD
source.
16 LAN
Connect an Ethernet cable from this port to the
network.
17 HDBaseT OUT
Use an Ethernet cable to connect an HDBaseT PoE
receiver to this port.
Front Rear
Panel Description
NOTE: The DC 48V port is only available on
the AT-HDVS-200-TX-PSK.
