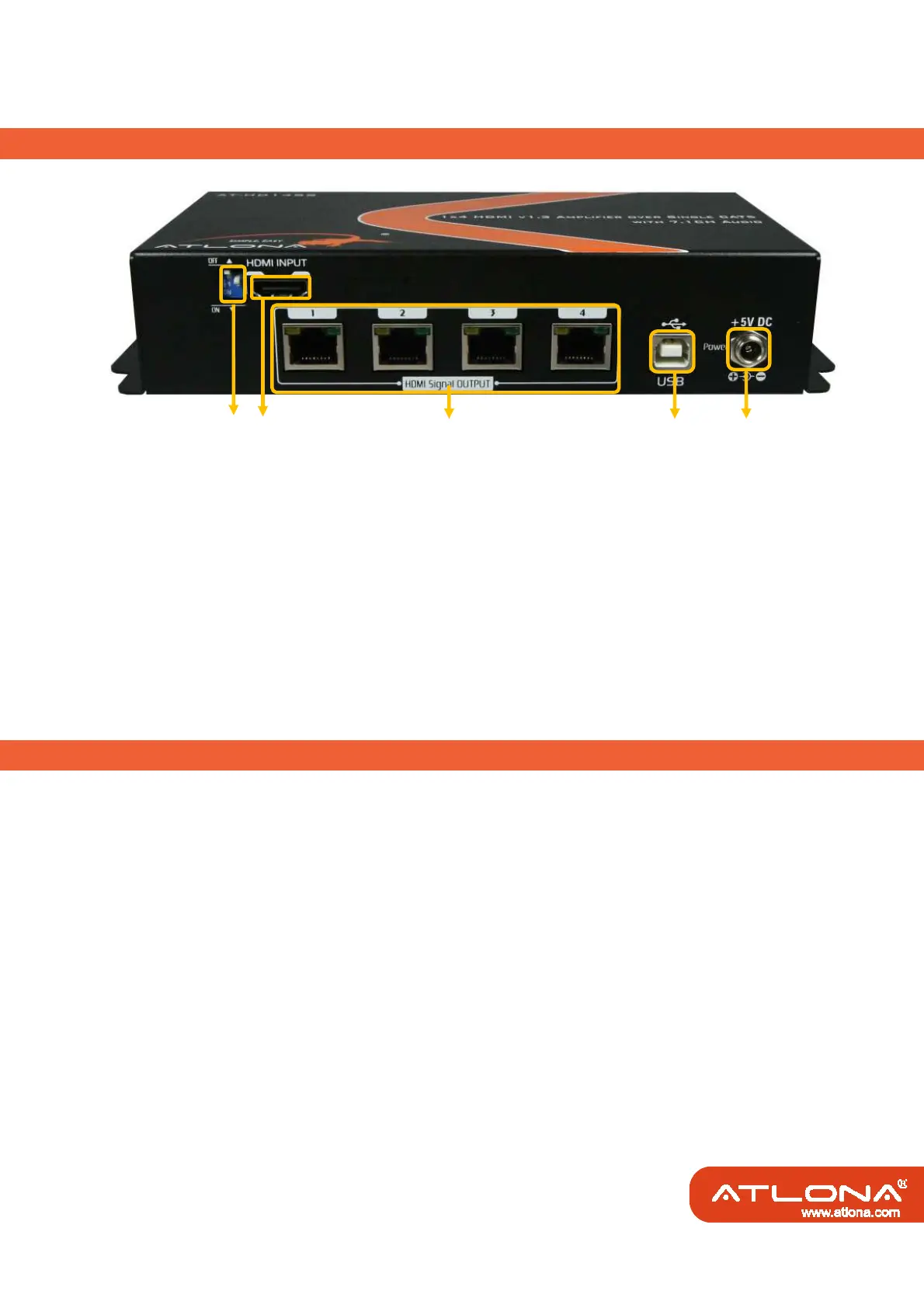

PANEL DESCRIPTION
1. DIP Switch: see more detail in the next section (p.5)
2. HDMI INPUT: Connect to one HDMI source here
3. HDMI Signal OUTPUT 1 – 4: Link to each HDMI display via a Cat-5/5e/6 cable with a
HDMI over CAT5 receiver AT-HDRS or AT-HD15SRS
4. USB: For firmware update use (for technical support only)
5. +5V DC: Power jack for 5V DC
HARDWARE INSTALLATION
Broadcast HDMI signal to 4 remote HD displays from one video source
1. Switch off each device, including displays devices.
2. Connect the HDMI source (such as a PS3, HDMI Compliant Set-top Box, Blu-ray player)
to the HDMI INPUT.
3. Connect to each receiver (AT-HDRS or AT-HD15SRS) via RJ-45 connector by CAT5e
cable.
4. Plug in 5V 4A DC power supply unit.
5. Power on the HDMI displays.
6. Power on the HDMI source.
3
1
2
5 4
