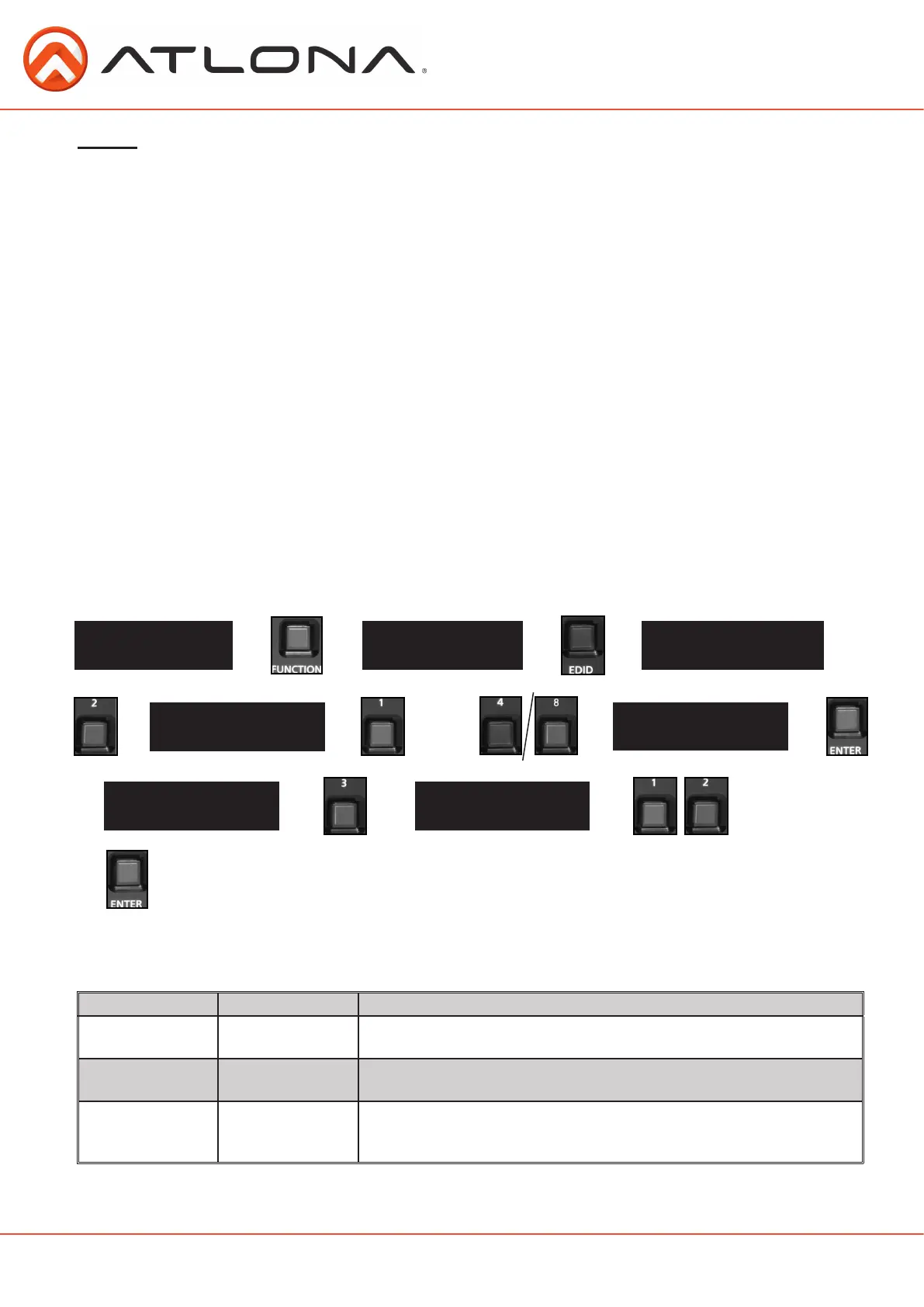

Step 3: Load an internal EDID to an input
---> ---> ---> --->
AT-H2H-XXM
Select Input Number
Select Function Option
home screen
1 To copy up to 4/8 EDIDs
2 To choose input EDID
Input #
Select an input port
Input # Press Enter
Current: Default
Input: # Mode:
1.Default 2.Saved 3.Int
EDID Internal # + enter
ATL _____ ____
--->
--->
Feedback = ”Saved Internal #
To input #”
1 - Cycles through
EDIDs in ascending
order
2 - Cycles through
EDIDs in decending
order
--->
--->
--->
--->--->
---> --->
--->
--->
If the first two steps don’t produce the correct resolution or audio configuration, the twelve
internal EDIDs should resolve the issue.
* Recommended EDID for use of an AVR
** Recommended EDID for use of the S/PDIF audio de-embedding
*** Recommended EDID for use of DVI projectors
EDID 1: 1080P 2CH audio ATL 1080P 2CH
EDID 2: 1080P multichannel audio* ATL 1080P Multi CH
EDID 3: 1080P Dolby Digital/DTS 5.1** ATL 1080P DD
EDID 4: 1080P 3D 2CH audio ATL 1080P 3D 2CH
EDID 5: 1080P 3D multichannel audio* ATL 1080P 3D Multi CH
EDID 6: 1080P 3D Dolby Digital/DTS 5.1** ATL 1080P 3D DD
EDID 7: 720P 2CH audio ATL 720P 2CH
EDID 8: 720P Dolby Digital/DTS 5.1** ATL 720P DD
EDID 9: 1280x800 RGB 2CH audio ATL 1280x800 RGB 2CH
EDID 10: 1366x768 RGB 2CH audio ATL 1366x768 RGB 2CH
EDID 11: 1080P DVI*** ATL 1080P DVI
EDID 12: 1280x800 DVI*** ATL 1280x800 RGB DVI
Internal EDID selection
input selection
RS-232 commands:
To access the different EDIDs through RS-232 the following commands must be used.
Command Feedback Description
EDIDMSetX default EDIDMSetX default Sets the EDID of an input to the default EDID
Ex. EDIDMset2 default - sets input 2 to default
EDIDMSetX saveY EDIDMSetX saveY Sets the EDID of an input to the previously saved EDID memory
Ex. EDIDMset1 save3 - sets input 1 to the EDID memory 3
EDIDMSetX intZ EDIDMSetX intZ Sets the EDID of an input to one of the internal EDIDs
Ex. EDIDMset3 int6 - sets input 3 to the internal EDID - 1080p 3D Dolby
Digital 5.1
Internal EDID options
Front panel display readout
through
