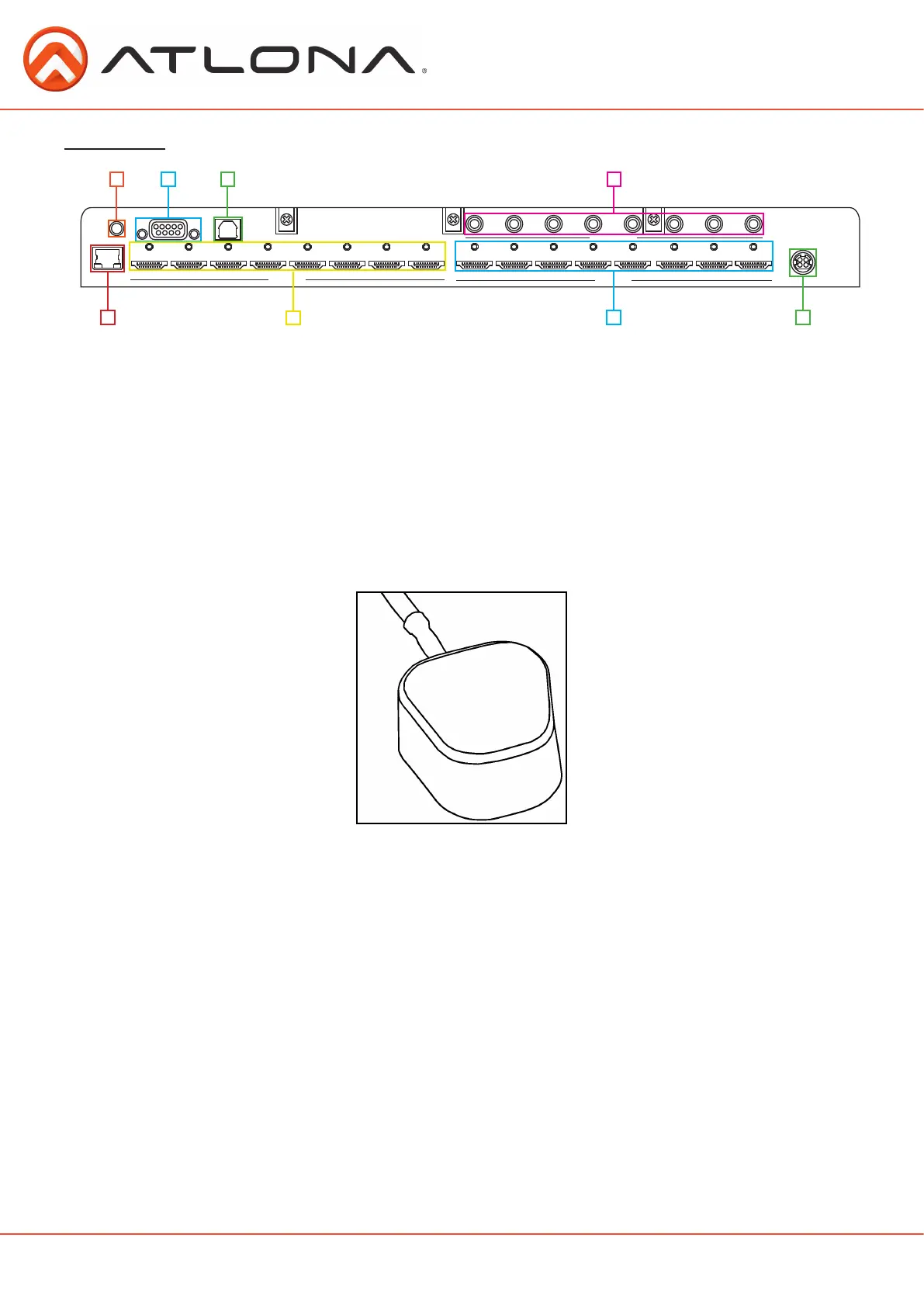

1. Matrix IR IN: Connect included IR receiver (see picture below)
2. RS-232: Connect to this port for control from a computer or 3rd control box.
3. Firmware Update: Type B USB Port used for updating the matrix firmware only
4. Coax Out: Audio de-embedding for distribution amplifiers and AVRs
Compatible with PCM 2Channel, LPCM 5.1, Dolby 2.0, Dolby Digital 5.1, and DTS 5.1
5. Ethernet Port: Used for TCP/IP control
6. HDMI Input Ports: Connect HDMI sources into these ports, such as DVD players, Blu-ray players,
computers, etc.
7. HDMI out port: Connect to a display or an AVR
8. Power Port: Use included locking DC adaptor to power the matrix switcher
AT-H2H-88M
AT-H2H-88M
DC 24V
ENTER
POWER
EDIDMEMORY
ALL
DEFAULT
CANCEL
FUNCTION
1
2
3
5
6
7
8
4
COAXIAL OUT
HDMI OUT
HDMI IN
RS-232
ETHERNET
IR IN
FIRMWARE
1 2
3
4 5
6
7
8
1
2
3
4 5
6
7
8
1
2
3
4 5
6
7
8
Back Panel
2
7
1
3
8
4
5
6
IR Receiver
