AtlasIED.com
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
INSTALLATION GUIDE
ISOFLARE™ PREMIUM LOUDSPEAKERS
FC SERIES
4
BLIND MOUNT - DROP CEILING TILE INSTALLATION
SUMMARY OF STEPS – Blind Mount Drop Ceiling Tile Installation
• Step 1 – Remove ceiling tile
• Step 2 – Mark cutout hole on ceiling tile
• Step 3 – Cut hole in ceiling tile
• Step 4 – Replace ceiling tile & assemble tile bridge C-ring assembly
• Step 5 – Bring cables through loudspeaker hole
• Step 6 – Connect safety tether to loudspeaker
• Step 7 – Terminate & connect loudspeaker wire to loudspeaker
• Step 8 – Insert loudspeaker through front of tile & secure in place
• Step 9 – Select transformer tap setting
• Step 10 – Install magnetic grille
TOOLS REQUIRED – Blind Mount Drop Ceiling Tile Installation
Included Part (Blind Mount models only) Qty per loudspeaker
IsoFlare™ Premium Ceiling Loudspeaker 1
Cutout template 1
Tile Support Rails 2
C-Ring 1
C-Ring screws 2
Euroblock Connector 1
Grille (Round White) 1
Required Tools • Ceiling tile knife or saw • Phillips screwdriver
• Smallatheadscrewdriver • Wire strippers
Step 1 – Remove ceiling tile

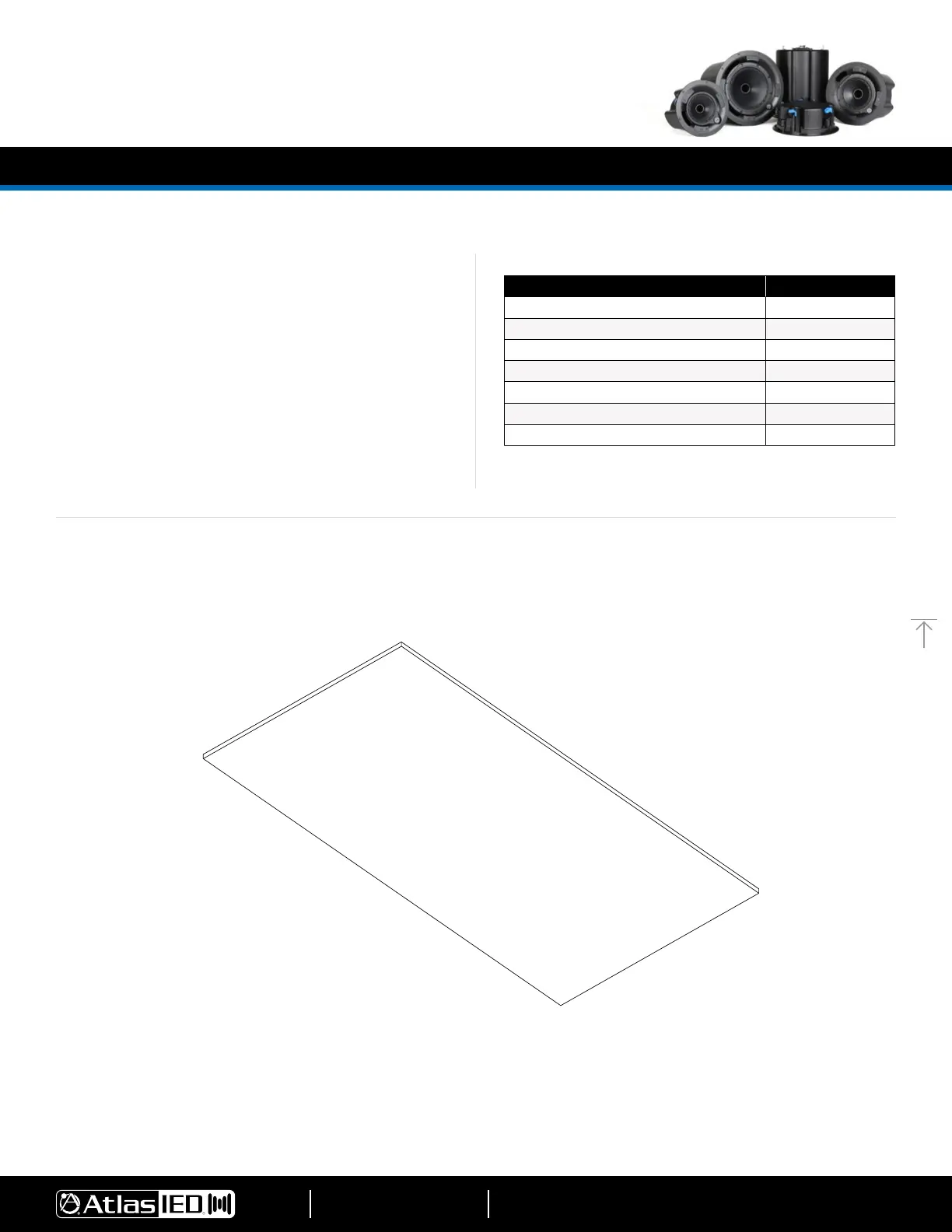

Remove the 2' x 2', 2 x 4', or 600 x 600 mm tile from drop ceiling and ensure cabling is in the correct location (Figure 1).
Figure 1
