INSTALLATION GUIDE
ISOFLARE™ PREMIUM LOUDSPEAKERS
FC SERIES
31
PRE-INSTALL - INSTALLATION (CONTINUED)
Model Cutout Diameter
FC-6TPI Ø 7.56" (192mm)
FC-8TPI Ø 9.76" (248mm)
Figure 39 Figure 40
Figure 41

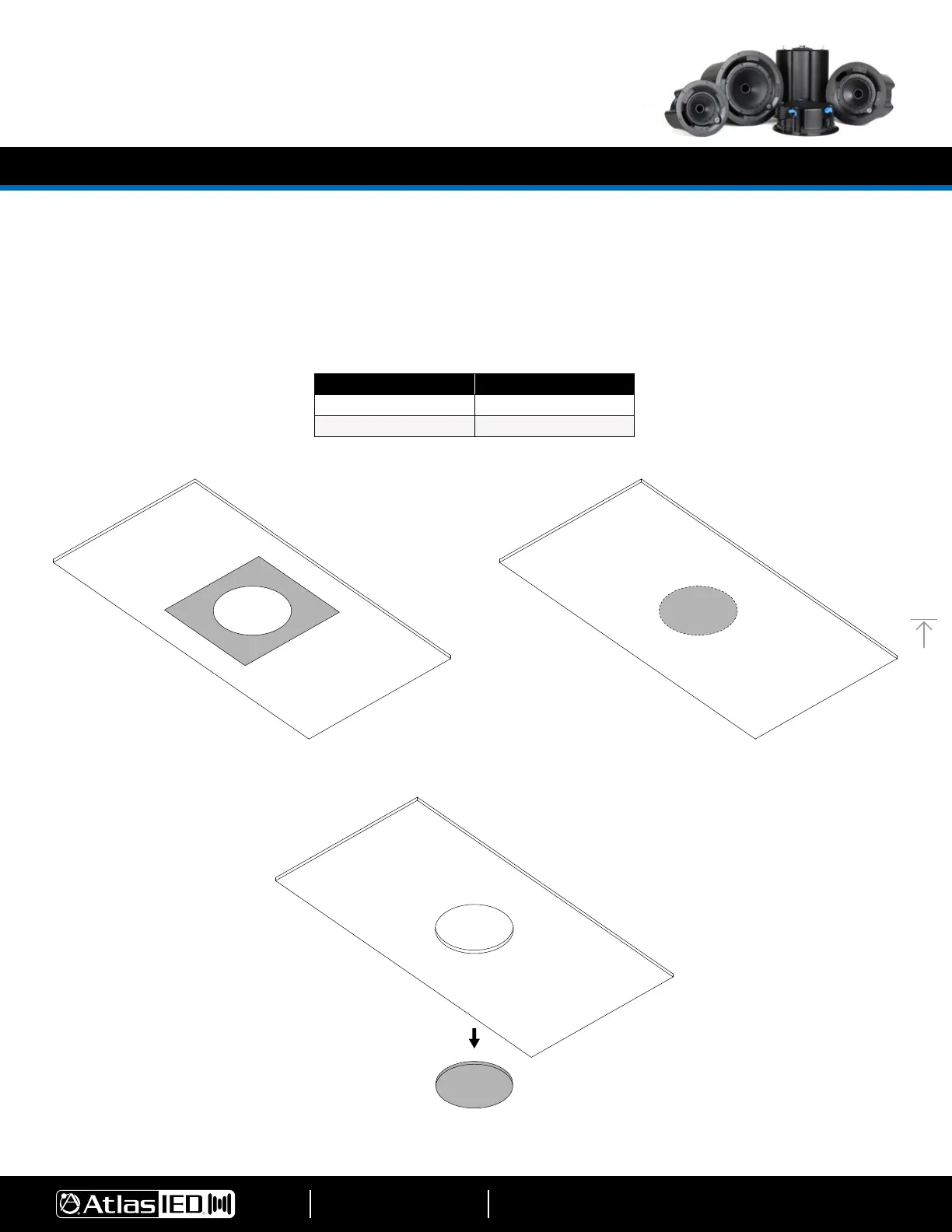

Step 5 – Mark cutout circle and cut hole
Align the ceiling material with the back can location and use the included cut-out template to align the ceiling material with the back can (Figure 39), then mark the
location of the loudspeaker (Figure 40).
Using a proper tool for the ceiling material, cut the loudspeaker hole into the ceiling (Figure 41).
