AtlasIED.com

TELEPHONE: (800) 876-3333

SUPPORT@ATLASIED.COM

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

INSTALLATION GUIDE

ISOFLARE™ PREMIUM LOUDSPEAKERS

FC SERIES

BLIND MOUNT - DRYWALL INSTALLATION (CONTINUED)

Step 7 – Insert loudspeaker through front of drywall and secure in place

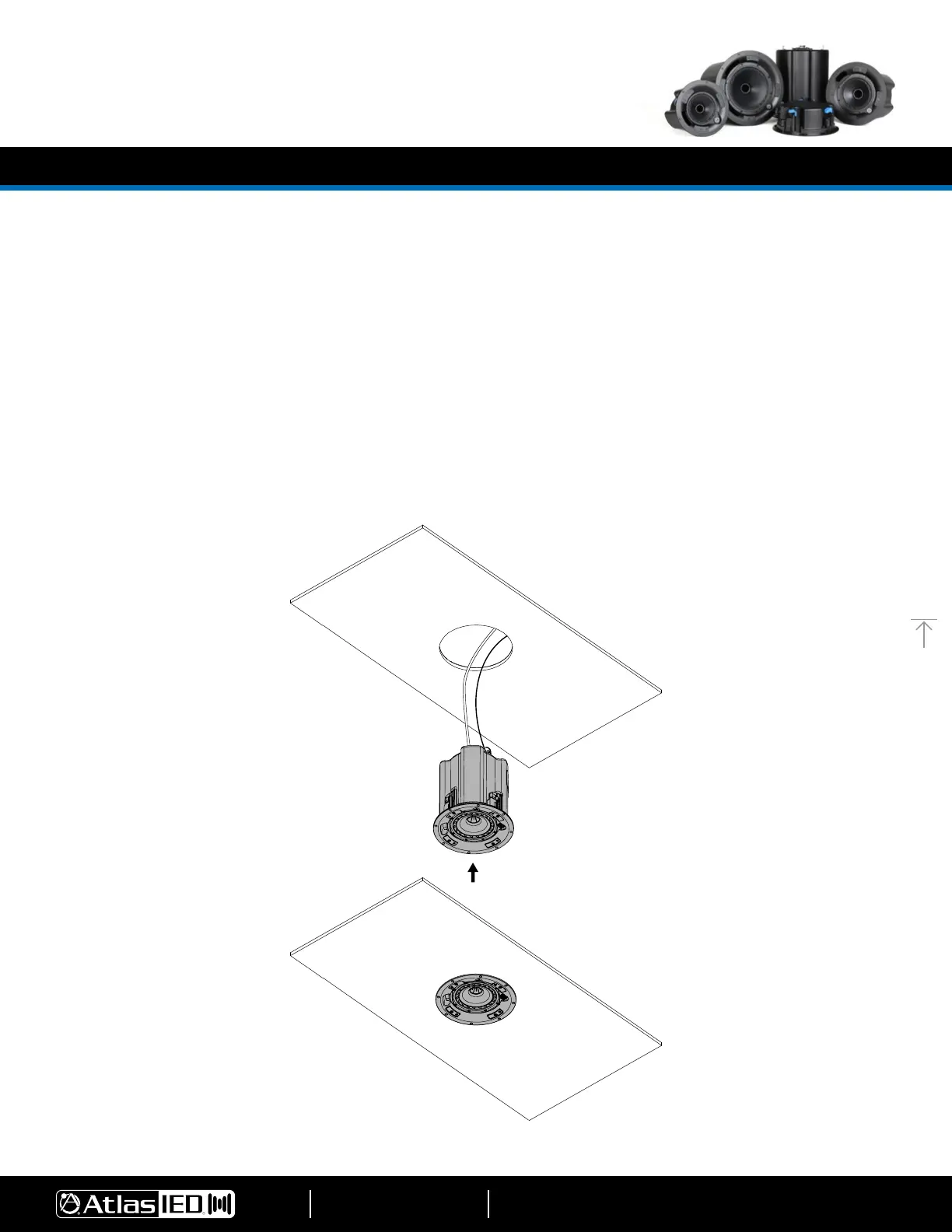

Ensure that the mounting doglegs are in their default nested position and insert the loudspeaker through the hole in the ceiling (Figure 24).

Secure the loudspeaker in place by pulling the T-handles to tighten the doglegs:

 a. DisengagerstT-handlefromdefaultinstalledposition(Figure25).

 b. PullT-handledownrmlyinasmoothcontinuousmotionuntilthedoglegengagestheC-ringanddrywall(Figure26).Pullhandletighttolockinplace.

c. Push the “T-handle” upwards and align with the locking tab on the handle, placing it back to its default starting position (Figure 27).".

d. Repeat steps A - C above for all remaining T-Handles.

Note 1: The FC 4" and 6" loudspeakers have a maximum clamping distance of 2.0". For installation surfaces thicker than 1.5" remove the reusable black rubber boot

from each dogleg clamp prior to inserting the enclosure through the ceiling.

Note 2: The FC 8" loudspeakers have a maximum clamping distance of 1.7". For installation surfaces thicker than 1.17" remove the reusable black rubber boot from

each dogleg clamp prior to inserting the enclosure through the ceiling.

Figure 24

(Step 7 continues on next page}
