AtlasSound.com – 10 –
ECM-15SH
AC
Power Conditioner & Suppression Module
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435

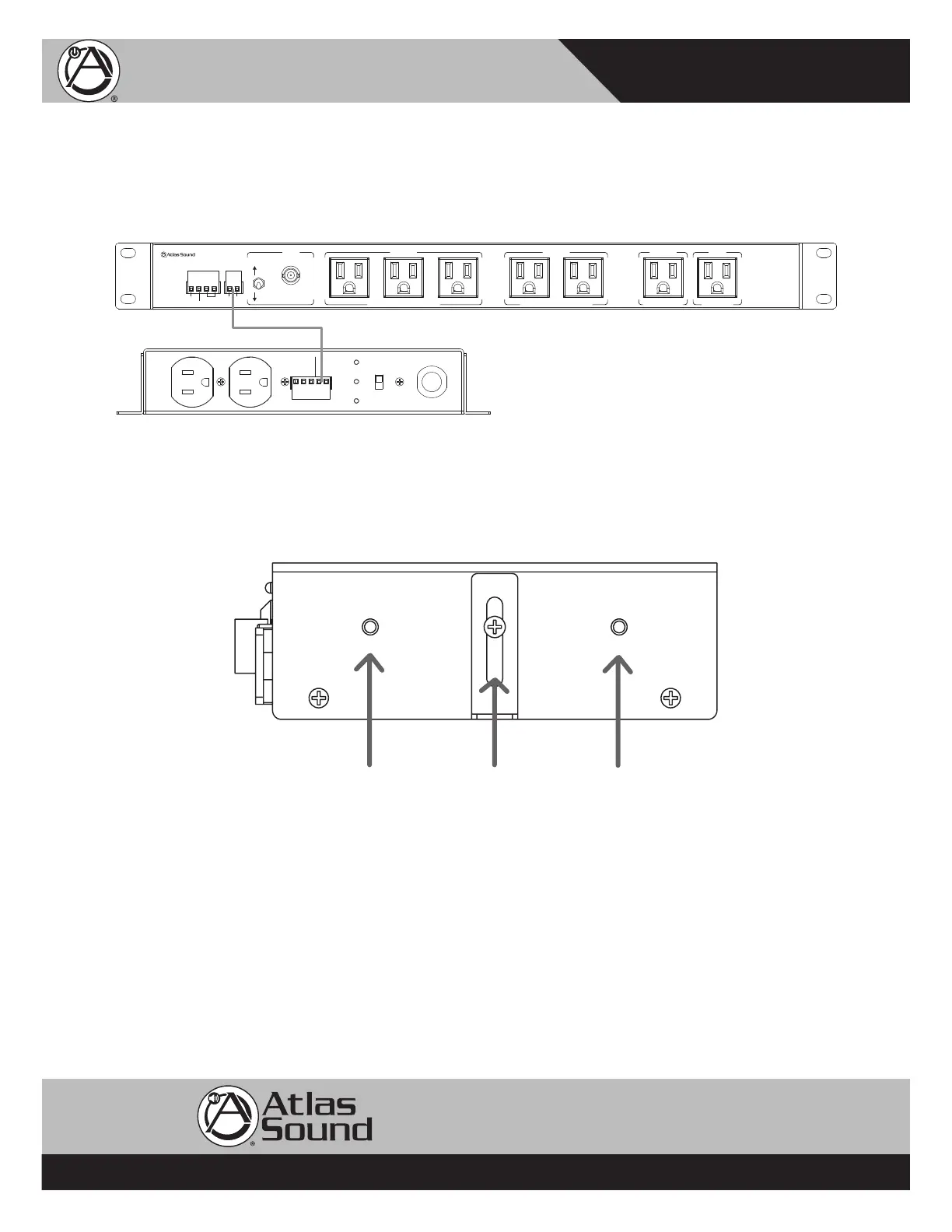

Wiring With an ECS-3 Sequencer Controller
ECM-15SH DCV Trigger - The ECS-3 can handle 15A of current before the breaker opens. If 15A is not enough current to support
your power requirements you can use the 24VDC trigger to activate an additional power outlet such as the ECM-15SH. This triggered
24VDC voltage works in conjunction with Sequence 3 timing section. Contact Atlas Sound for AC outlet options.
Mounting the ECM-15SH
Mounting Bracket - There are two adjustable mounting brackets incorporated. When mounting to a rack rail system use
10
⁄32" x 1",
when mounting to a wall surface use two #8 wood or metal screws. There are three screws per side for bracket placement. Each
bracket has a slide slot to allow mounting height adjustment.
120V AC 60Hz
15A Max 1800W
Internal Fuse
15A 250V 3AB (Slow Blow)
Status
Signal
D A V G
+
Trigger
Voltage
Manual
On
External
Trigger
Active
AC Fault
Incoming
AC
120V 60Hz
12A 1440W
Total
120V AC 60Hz
15A Max 1800W
Outlet
Unswitched
120V 12A 1440W
High Current 120V
12A 1440W UnfilteredFiltered Outlets 120V 60Hz 10A 1200WFiltered Outlets 120V 60Hz 10A 1200W
Sequence 3Sequence 2Sequence 1
Notice:
See Top
Cover For
Details
Lamp
On
Off
1601 Jack McKay Blvd. • Ennis, TX 75119
800.876.3333 • AtlasSound.com
Remote
Activation
RMT V IN
5-24V DC GND
EXTSW V+ V-
12V DC
DC Out 12V
(SEQ 3)
