INSTALLATION GUIDE
YOKE MOUNT / C-BRACKET
AS Series
STEP 6 - REMOVE LOUDSPEAKER ENDCAPS THEN ENGAGE LOUDSPEAKER WITH
MOUNTING BRACKET

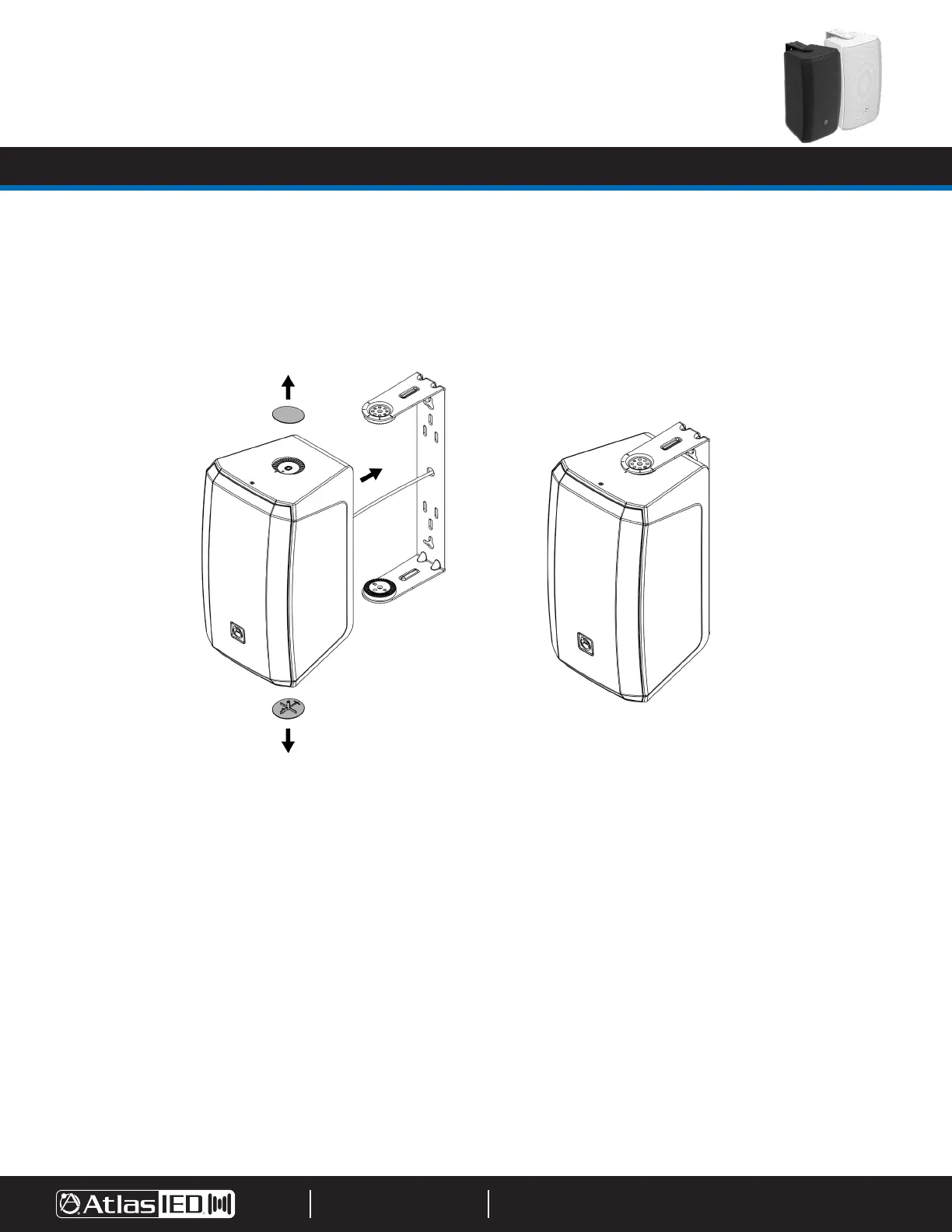

Remove the two loudspeaker endcaps from the top and bottom of the loudspeaker by rmly pulling them away from the loudspeaker (Figure 10). This will expose the
mechanism that will engage and lock with the C-bracket arms (Figure 11).
Slide the loudspeaker between the bracket arms until the pivot “teeth”/”points” on the loudspeaker engage into place with the accompanying “teeth”/”points” on the
bracket. Ensure that the loudspeaker is securely seated in the bracket (Figure 11).
Figure 10 Figure 11
