AtlasIED.com
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
INSTALLATION GUIDE
YOKE MOUNT / C-BRACKET
AS Series

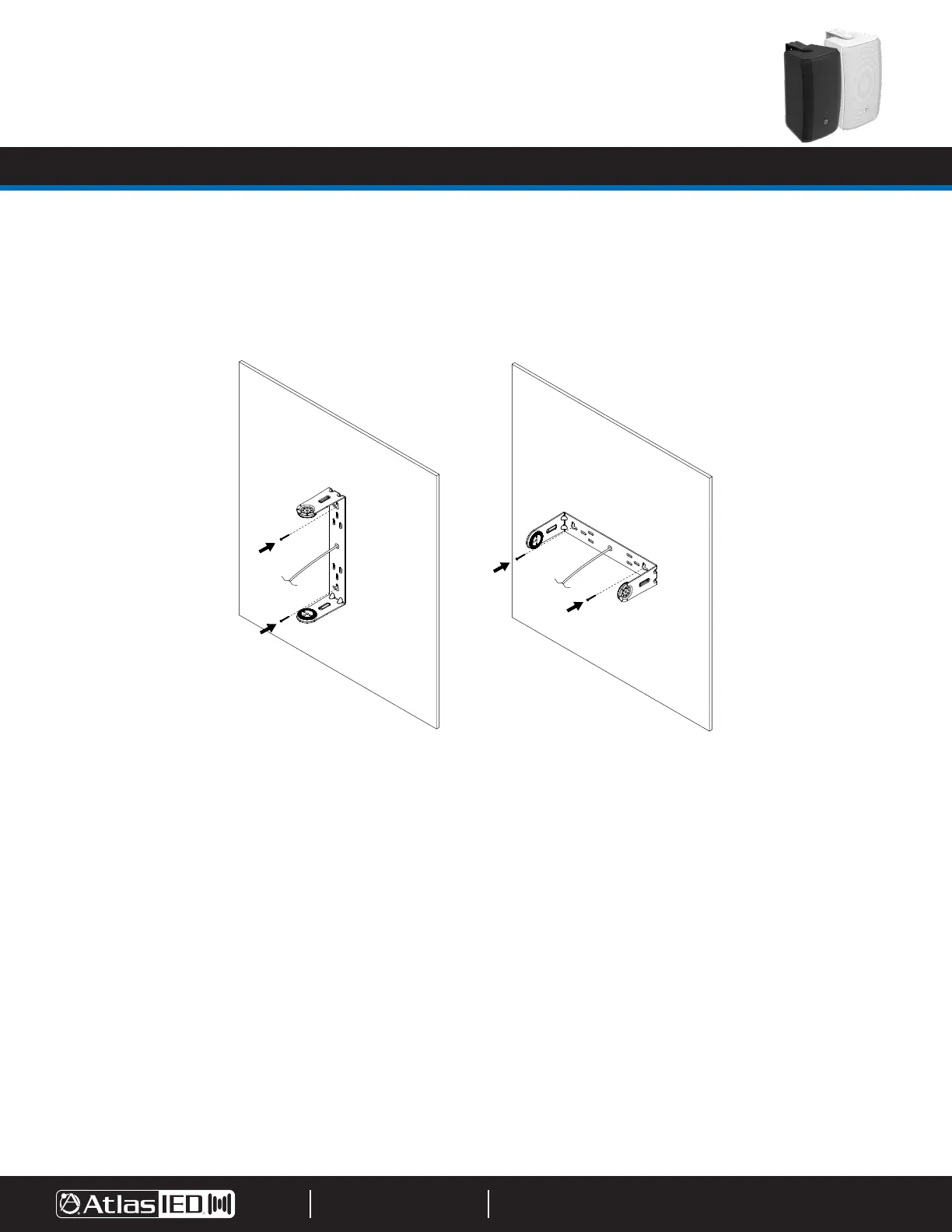

STEP 2 - ATTACH BRACKET TO MOUNTING SURFACE
Attach the bracket to the mounting surface using hardware that is appropriate for the type of surface and loudspeaker weight. The mounting bracket can be attached
either horizontally (Figure 2) or vertically (Figure 3).
Use a level to ensure the bracket is correctly aligned in the vertical or horizontal orientation.
Figure 2 Figure 3
Run wires through wall and bracket
Bracket install
Attach bracket to wall
Run wires through wall and bracket
Bracket install
Attach bracket to wall
