KVM over IP Matrix System User Manual
18

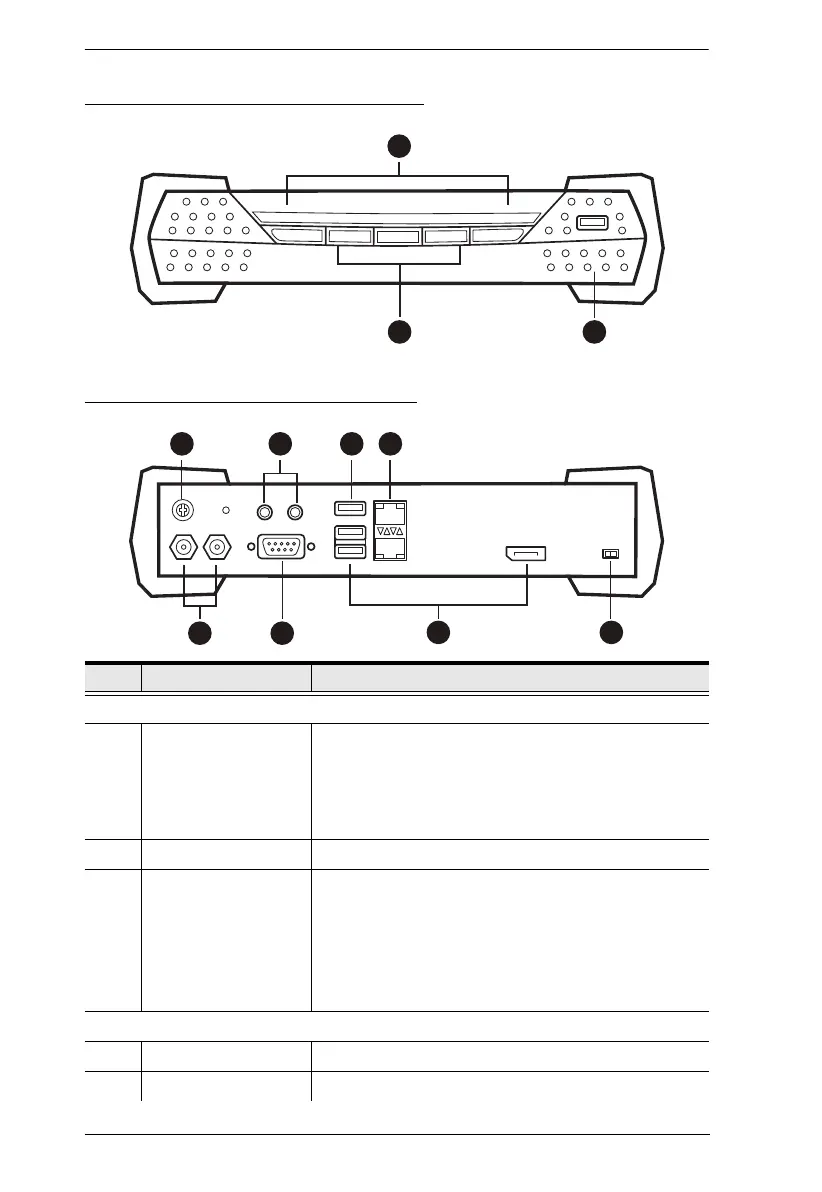

KX9970FR (Receiver) Front View
KX9970FR (Receiver) Rear View
No. Component Description
Front View
1 power & status LEDs
Power: Lights green to indicate the unit is receiving
power and turned on.
Remote / Local: Lights green to indicate which side
of the installation (Local or Remote) currently has
KVM control of the computer.
2 operation pushbuttons Use these pushbuttons to operate the OSD.
3 USB peripheral port Use this port for virtual media or a USB peripheral
device.
Note: 1. When using a USB disk plugged into this
port, see USB Mode, page 125.
2. This USB port supports isochronous
endpoints.
Rear View
4 grounding terminal The wire used to ground the unit connects here.
5 DC power jacks The cable from the DC power adapter connects here.
1
3 2
4 8 9 6
75
10 11
