Chapter 1. Introduction
13

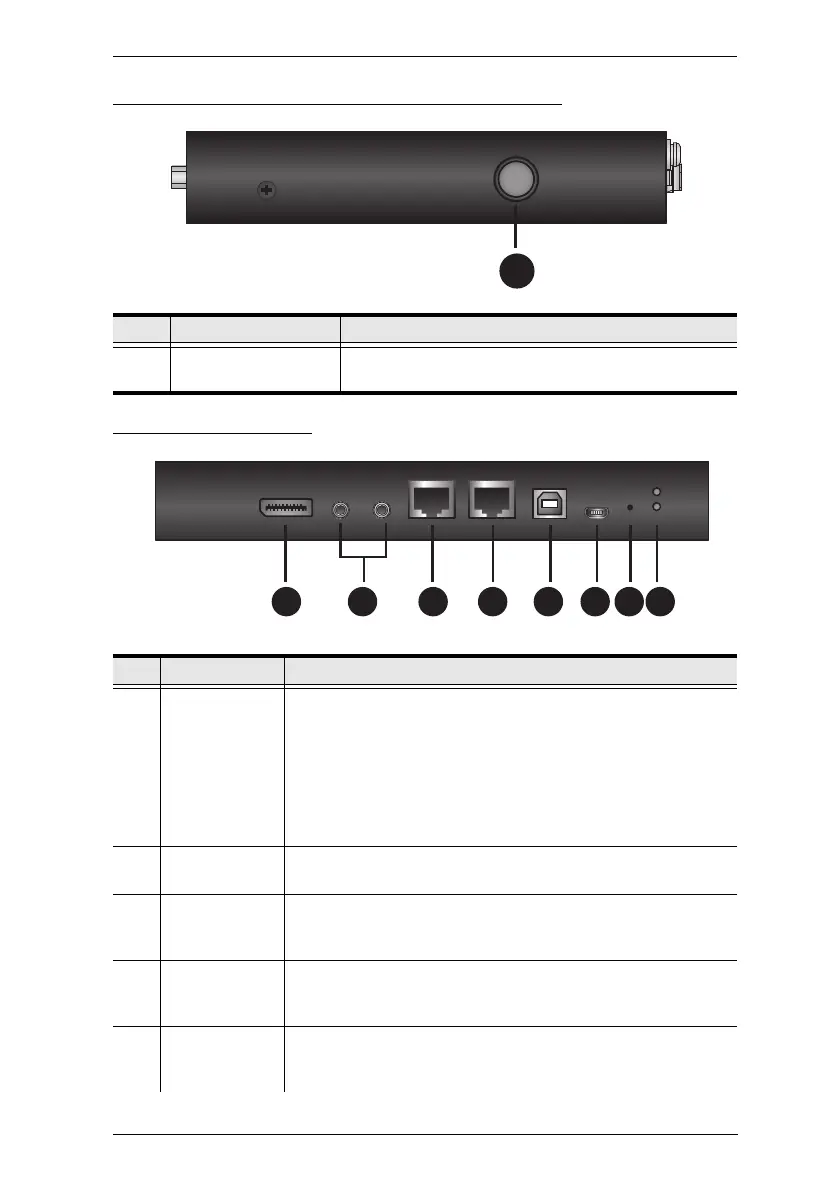

CN9000/CN9600/CN9850/CN9950 Side View
CN9950 Front View
No. Component Description
1 control port This port is currently non-functional for CN9000/
CN9600/CN9850/CN9950.
No. Component Description
1 PC/KVM
DisplayPort
port
Use the DisplayPort cable provided to connect the PC / server
to the 9950 through this port.
Note:
Audio is not supported by CN9950's DisplayPort and can
only be transmitted through its 3.5 mm audio ports.
Make sure the connected computer’ video source is not
HDCP encrypted to avoid blank screen or screen flickering.
2 KVM audio
Ports
Connect the audio of the PC / server to these ports for audio
signal transmissions.
3 CPU COM
(RS-232 DTE)
port
Connect a serial data communication equipment device (e.g. a
modem or PC) to this port. See page 28 for details.
4 local console
COM (RS-232
DCE) port
Connect a serial data terminal equipment device (e.g. a PC or
touch panel) to this port. See page 28 for details.
5 KVM USB
Type-B port
Use the USB cable (USB Type-A to USB Type-B) provided to
connect the PC / server to this port for keyboard and mouse
signal transmissions.
2
23457896
