Single Board Computer 51
3.7 Installing a heatsink
1. Place the heatsink with its ns faced down on a at surface.

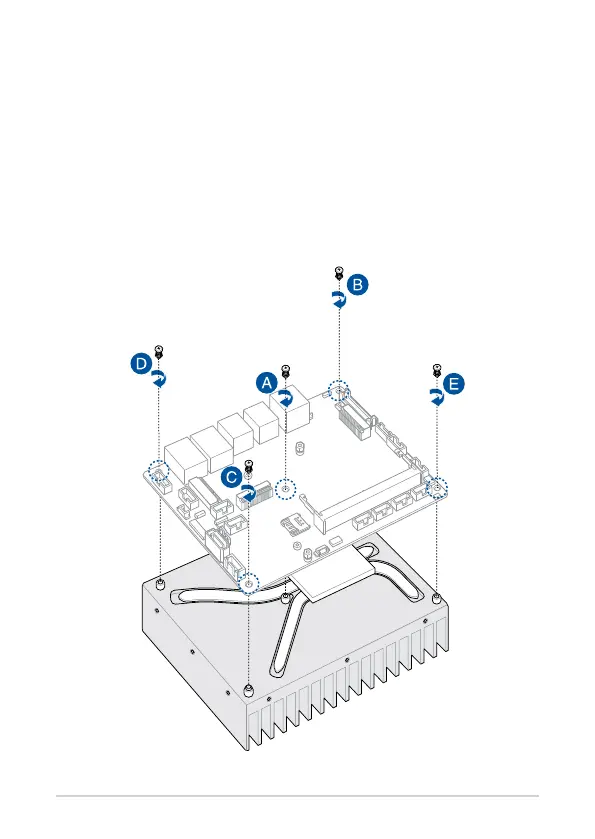

2. Place the Single Board Computer over the heatsink so that the ve (5)
screw holes on the Single Board Computer are aligned to the ve (5)
standos on the heatsink as shown below.
3. Secure the Single Board Computer to the heatsink using the ve (5)
spring screws bundled with the heatsink in the sequence shown below.
