Installation manual
English

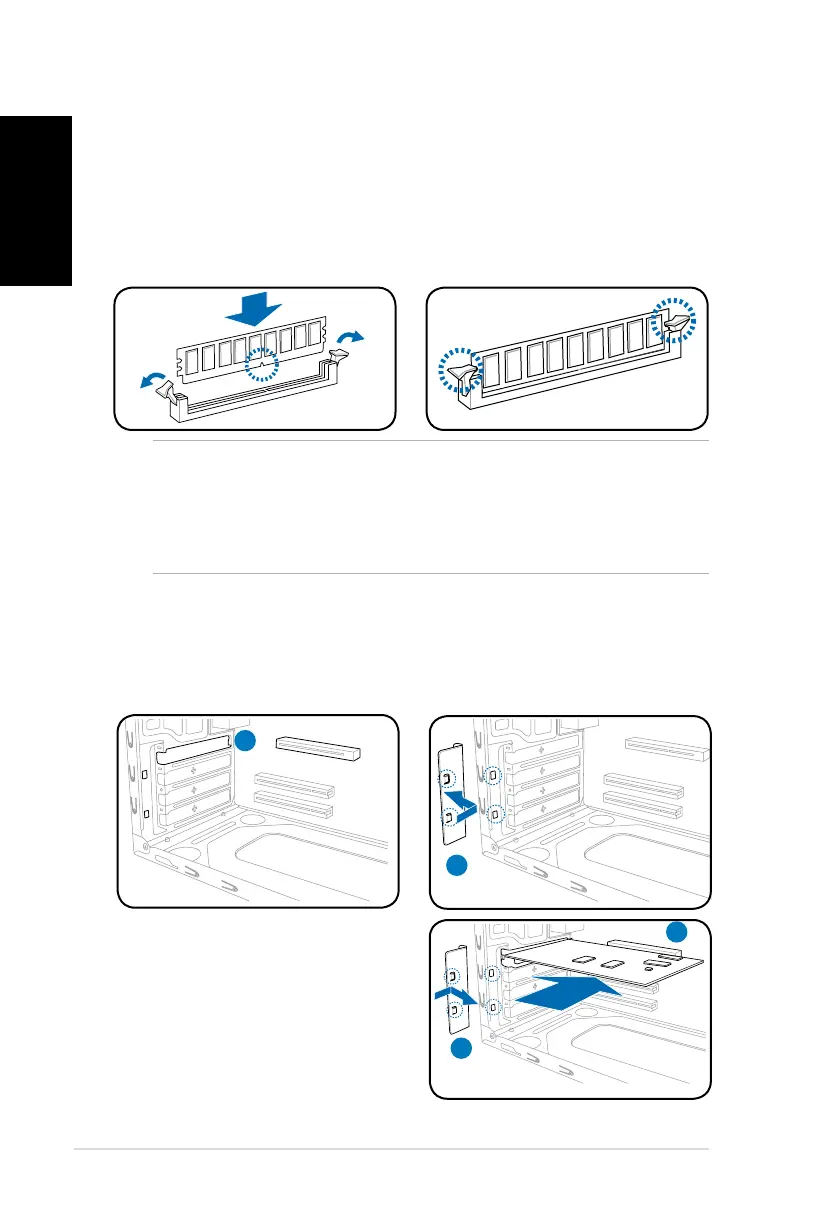

Installing an expansion card
2. Remove the metal bracket lock.1. Remove the metal cover opposite
the slot that you intend to use.
3. Insert the card connector to the
slot,thenpressthecardrmly
untilittsinplace.
4. Replace the metal bracket lock.
Installing a DIMM
1. Locate the DIMM sockets in the motherboard.
2. Unlock a DIMM socket by pressing the retaining clips outward.
3. Align a DIMM on the socket such that the notch on the DIMM matches the
break on the socket.
4. Push the DIMM to the socket until the retaining clips snap inward.
CAUTION:
• Unplug the power supply before adding or removing DIMMs. Failure to do so may
cause damage to the motherboard and/or components.
• ADDRDIMMiskeyedwithanotchsothatittsinonlyonedirection.Donotforce
a DIMM into a socket to avoid damaging the DIMM.
1
2
3
4
