2-27
Chapter 2: Motherboard information

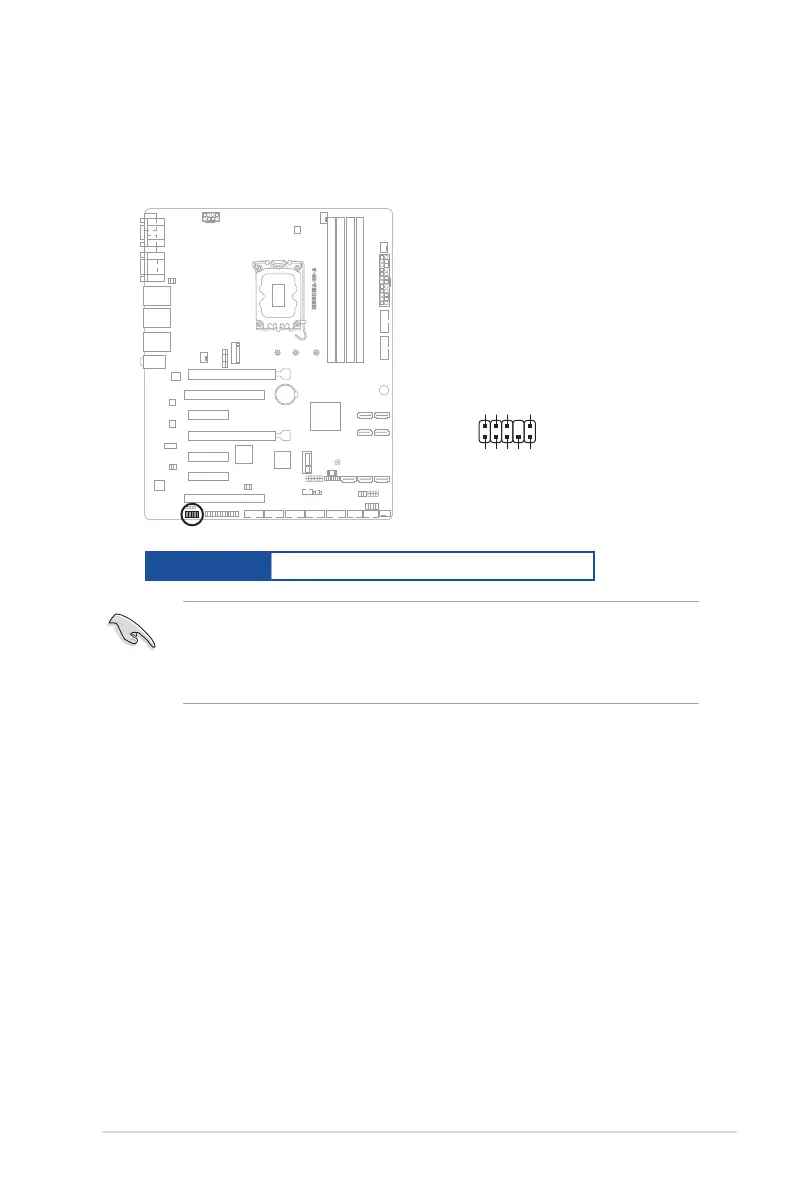

14. Front Panel Audio header (10-1 pin AAFP)
This header is for a chassis-mounted front panel audio I/O module that
supports HD Audio standard. Connect one end of the front panel audio I/O
module cable to this header.
• We recommend that you connect a high-definition front panel audio module
to this header to avail of the motherboard’s high-definition audio capability.
• If you want to connect a high-definition front panel audio module to this
connector, set the HD Audio Controller item in the BIOS Setup to [Enabled].
Connector type
HEADER 2x5p, K8, 2.54mm pitch
AAFP
PIN 1
PIN 2
PIN 9
PIN 10
A_GND
NC
A_JD_FMIC1
A_JD_HPOUT
A_FMIC1_L
A_FMIC1_R
A_HPOUT_R
A_JD_FRONT
A_HPOUT_L
