R680EA-IM-A
2-18

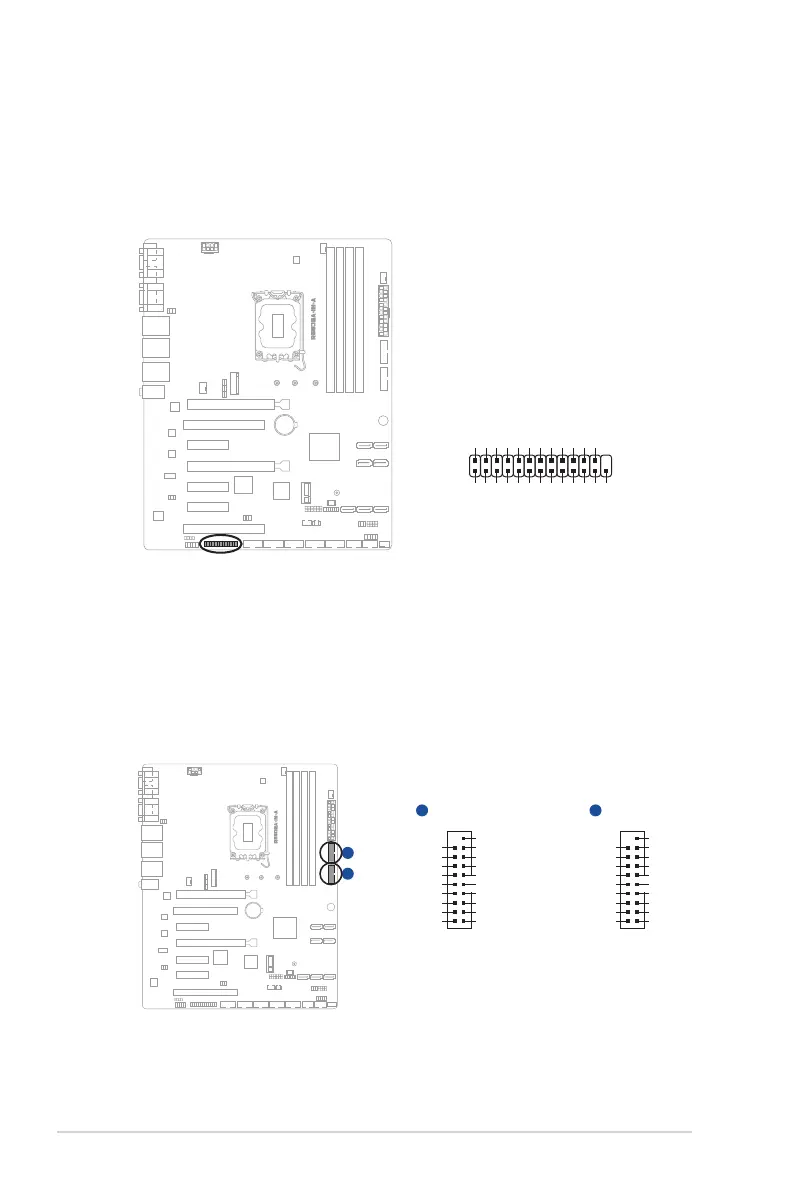

2.6.2 Internal connectors
2. USB 3.2 Gen 1 connectors (20-1 pin U32G1_910 / U32G1_56)
Connect a USB 3.2 Gen 1 module to any of these connectors for additional
USB 3.2 Gen 1 front or rear panel ports. These connectors comply with USB
3.2 Gen 1 specifications and provide faster data transfer speeds of up to 5
Gbps, faster charging time for USB-chargeable devices, optimized power
efficiency, and backward compatibility with USB 2.0.
1. LPT header (26-1 pin LPT)
The LPT (Line Printing Terminal) header supports devices such as a printer.
LPT standardizes as IEEE 1284, which is the parallel port interface on IBM
PC-compatible computers.
LPT
PIN 1 PIN 25
PIN 2
LPT_XSTB#
LPT_XPD0
LPT_XPD1
LPT_XPD2
LPT_XPD3
LPT_XPD4
LPT_XPD5
LPT_XPD6
LPT_XPD7
LPT_ACK#
LPT_BUSY
LPT_PE
LPT_SLCT
LPT_XAFD#
LPT_ERROR#
LPT_XINIT#
LPT_XSLIN#
GND
GND
GND
GND
GND
GND
GND
GND
A
B
+5V_USB3_P56
S_U3RXDN5
S_U3RXDP5
GND
S_U3TXDN5
S_U3TXDP5
GND
S_USB_PN5
S_USB_PP5
GND
PIN 1
PIN 10PIN 11
+5V_USB3_P56
S_U3RXDN6
S_U3RXDP6
GND
S_U3TXDN6
S_U3TXDP6
GND
S_USB_PN6
S_USB_PP6
U32G1_56
B
+5V_USB3_P910
S_U3RXDN9
S_U3RXDP9
GND
S_U3TXDN9
S_U3TXDP9
GND
S_USB_PN9
S_USB_PP9
GND
PIN 1
PIN 10PIN 11
+5V_USB3_P910
S_U3RXDN10
S_U3RXDP10
GND
S_U3TXDN10
S_U3TXDP10
GND
S_USB_PN10
S_USB_PP10
U32G1_910
A
