Industrial motherboard
2.5 Internal connectors

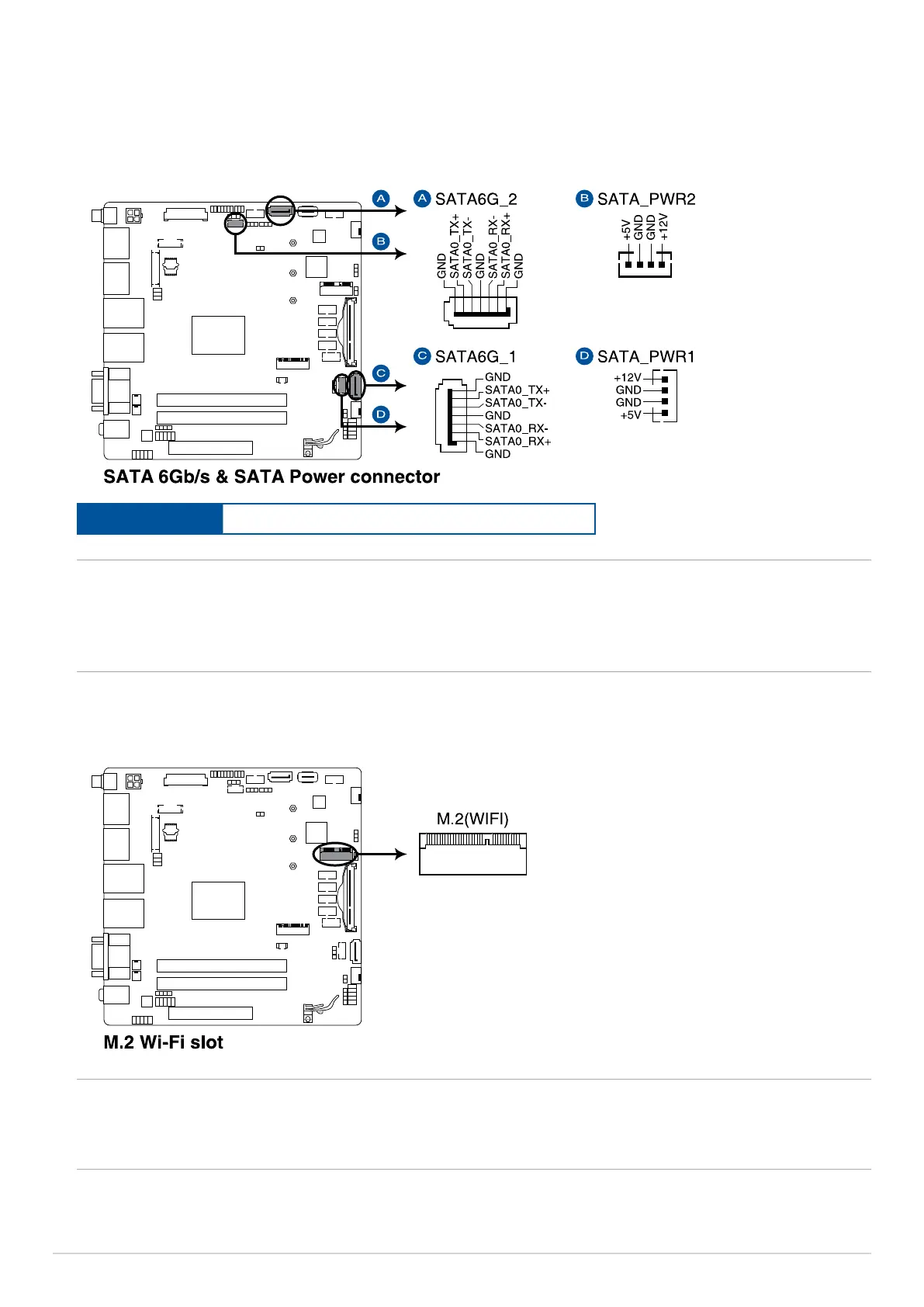

1. SATA 6Gb/s & SATA Power connector
The SATA 6Gb/s and SATA Power connectors allow you to connect a SATA DOM or SATA devices such as
optical disc drives and hard disk drives via a SATA cable and power cable.
Connector type
Wafer HD 4P, 2.0mm pitch
NOTE:
• Ensure to use the bundled cable when connecting a storage device to this connector with a SATA cable.
• We strongly recommend using a SATA DOM with the dimensions of 40.4 x 21.03 x 10.4 mm (W x L x H)
when you wish to install a SATA DOM as well as a USB flash drive to the Internal USB Type-A connector.
2. M.2 Wi-Fi slot
The M.2 Wi-Fi slot allows you to install an M.2 Wi-Fi module (E-key, type 2230).
NOTE:
• The M.2 Wi-Fi module is purchased separately.
• We recommend using a PH1 screwdriver with a torque of 2.0±0.2kgf-cm when tightening the screw.
