1-1
Product Introduction
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.

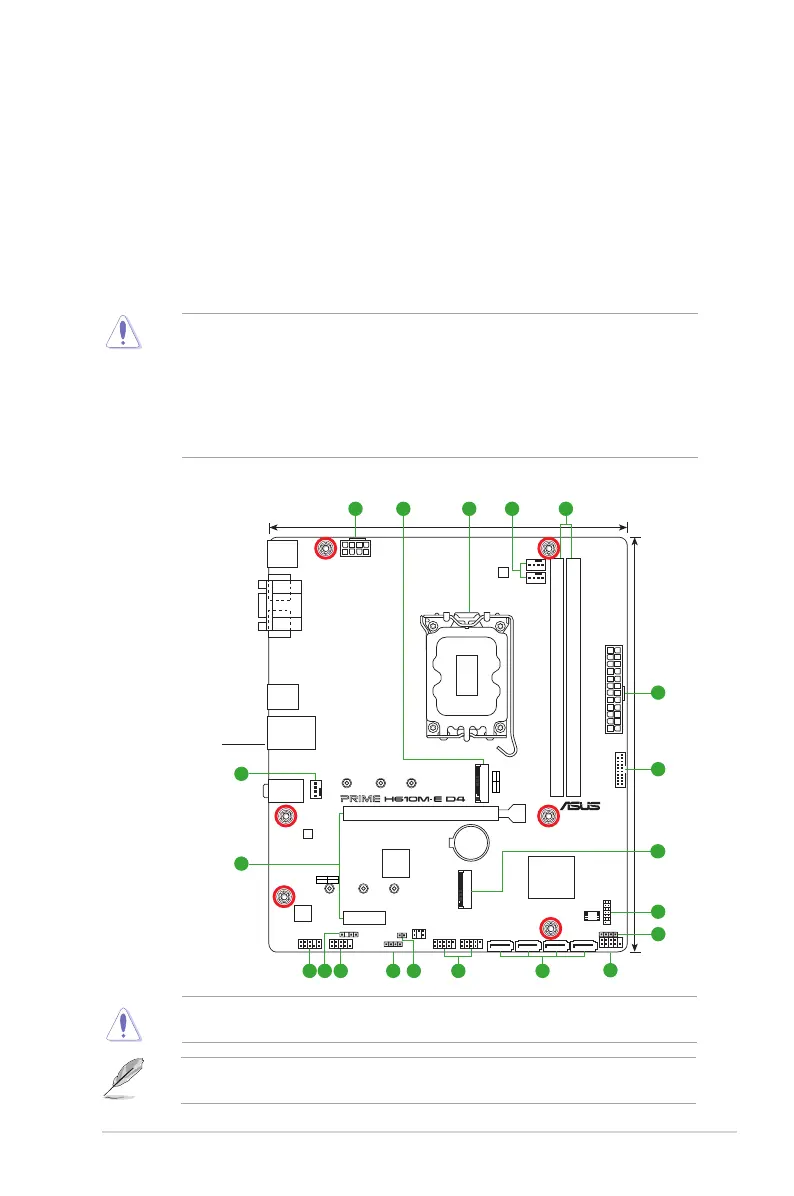

1.2 Motherboard overview
Place this
side towards
the rear of the
chassis
ATX_12V
PCIEX16(G4)
PCIEX1(G3)
SPEAKER
TPM
128Mb
BIOS
CLRTC
F_PANEL
SPDIF_OUT
RGB_HEADER
COM_DEBUG
USB_56
USB_78
U32G1_34
AAFP
COM
ATX_PWR
CPU_FAN
CHA_FAN2
BATTERY
CHA_FAN1
Super
I/O
24.4cm(9.6in)
DDR4 DIMM_A1 (64bit, 288-pin module)
2280 2260 2242
2280 2260 2242
DDR4 DIMM_B1 (64bit, 288-pin module)
AUDIO
KBMS
HDMI
DP
VGA
U32G1_12
21.1cm(8.3in)
SATA6G_1 SATA6G_2
SATA6G_3
SATA6G_4
Intel
®
H610
M.2_1(SOCKET3)
M.2_1(SOCKET3)
M.2_2(SOCKET3)
M.2_2(SOCKET3)
PCIE SATA
3.0 X4 X
PCIE SATA
3.0 X2 X
Audio
Codec
DIGI+
VRM
LGA1700
Ethernet
LAN_USB_914
65 1
2
4
16
10 713 1114 12
17
6
5
3
4
9
8
15
1
Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage motherboard components.
The pin denitions in this chapter are for reference only. The pin names depend on the
location of the header/jumper/connector.
ASUS PRIME H610M-E D4
Chapter 1: Product Introduction
