13

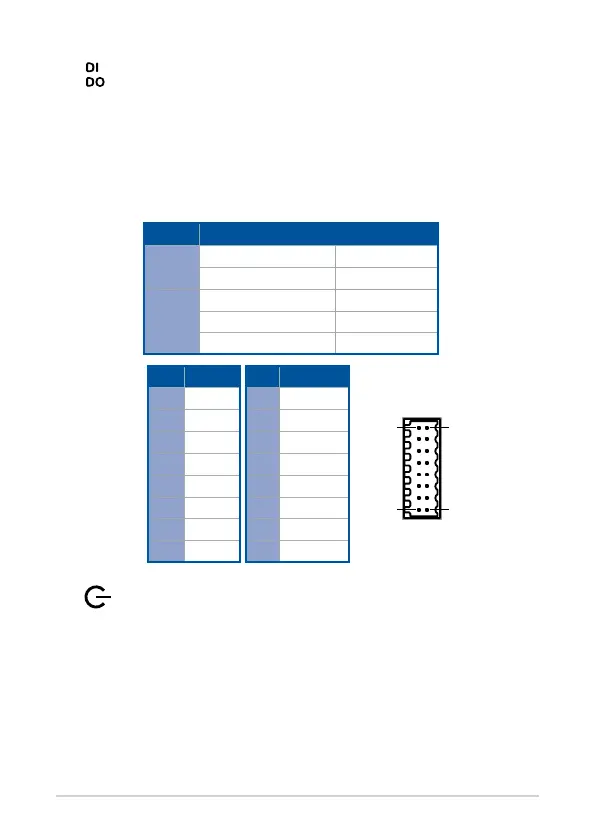

Isolated DIO connector
The Isolated Digital Input/Output (DIO) connector
provides electrical isolation of digital input and output
signals, which allow micro controllers to detect and
output logic states. The high voltage protection can
be used in industrial level uses. Please refer to the
illustration below for the specication and pin denitions
of the Isolated DIO connector.
Signal Specications
DO
Output voltage range 0~48 VDC
Rated output current 4 A
DI
Voltage for logic “0” 0~3 VDC
Voltage for logic “1” 10~48 VDC
Rated input current ±50 mA
Pin DIO Pin DIO
16 DO4 8 DO_PWR
15 DO3 7 DO_PWR
14 DO2 6 DIO_GND
13 DO1 5 DIO_GND
12 DI4 4 DIO_GND
11 DI3 3 DIO_GND
10 DI2 2 DI_COM
9 DI1 1 DI_COM
1
8
9
61
Power button
The power button allows you to turn the Embedded
Computer on or off. You can use the power button to
put your Embedded Computer to sleep mode or press it
for four (4) seconds to force shutdown your Embedded
Computer.
