PE Series

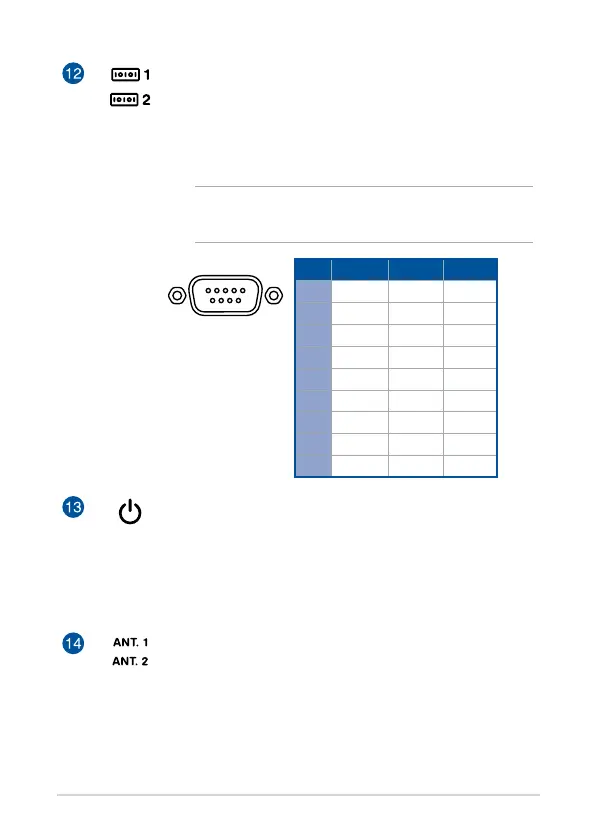

Serial (COM) connector
The 9-pin DB9 connector allows you to connect RS-
232/422/485 serial (COM) devices, such as bar code
scanners, modems, and printers. Please refer to the
table below for the pin denitions of the dierent COM
connectors.
NOTE: Default set to RS-232. Setting can be changed
through the BIOS.
1 2 3 4 5
6 7 8 9
Pin RS-232 RS-422 RS-485
1 DCD# TX- D-
2 RXD TX+ D+
3 TXD RX+ NA
4 DTR RX- NA
5 GND GND GND
6 DSR NA NA
7 RTS NA NA
8 CTS NA NA
9 RI NA NA
Power button
The power button allows you to turn the Embedded
Computer on or o. You can use the power button to
put your Embedded Computer to sleep mode or press it
for four (4) seconds to force shutdown your Embedded
Computer.
Antenna hole
The antenna hole allows you to connect a wireless
antenna to enhance wireless signal reception.
