6. (Optional) Connect the RF cables from the antennas to your module.

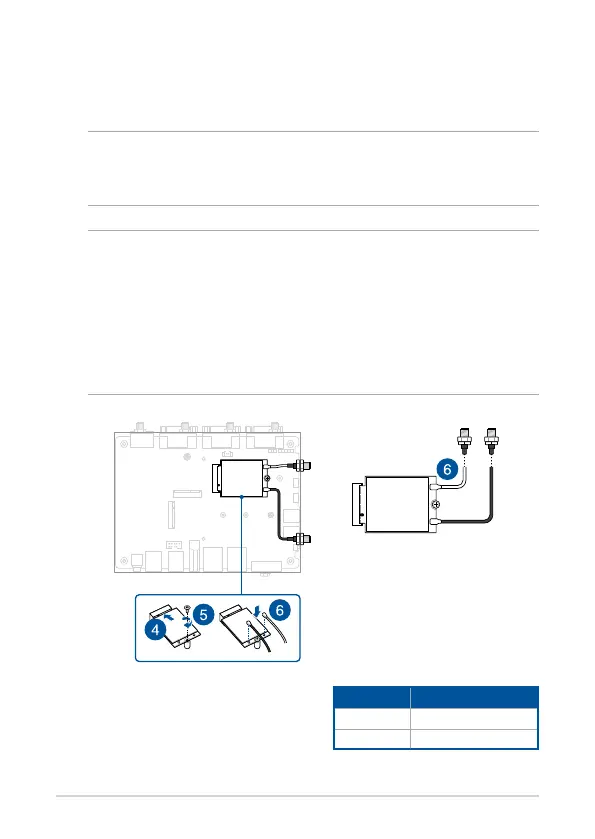

Make sure that the correct cable is attached to each of the connectors
by referring to the illustration below.
WARNING! RF modules are intended for OEM or host integrators only.
For availability of system level RF certification, check with your OEM
integrator.
NOTE:
• Please refer to the Installing antennas section for more
information on installing the antennas.
• Connecting antennas to your 4G LTE module may strengthen the
wireless signal.
• A soft clicking sound indicates that the antenna has been securely
attached on the wireless card.
Ant. Jack Module Connector
ANT. 5 WWAN-AUX
ANT. 6 WWAN-MAIN
