NUC11ATKC2

User Guide - January 2022

4.0 Install an M.2 SSD

Intel® NUC 11 Essential Mini PC - NUC11ATKC2 supports 80mm and 42mm SSDs.

Find compatible M.2 SSDs at the Intel® Product Compatibility Tool:

 NUC11ATKC2

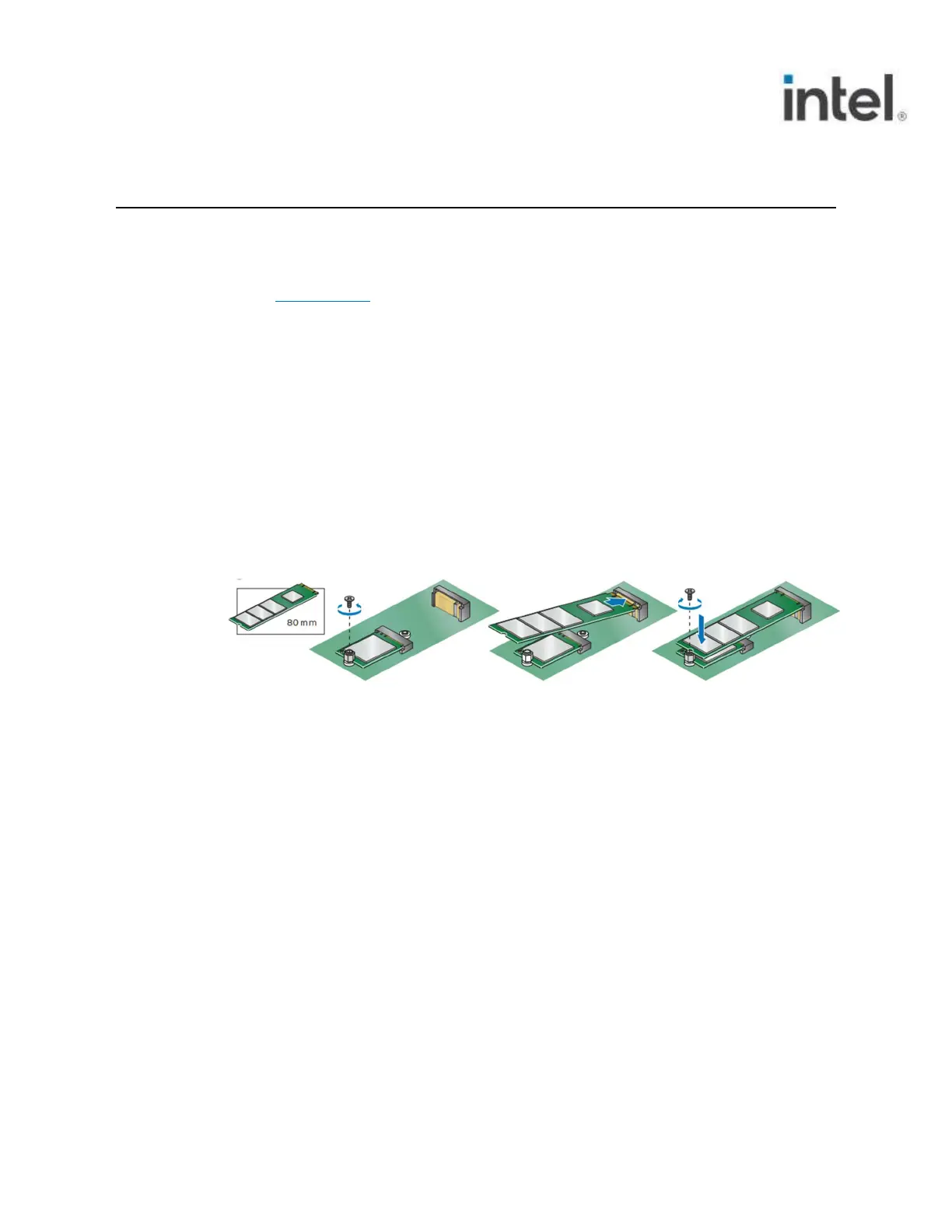

If you’re installing an 80mm M.2 SSD:

1. Remove the small silver screw from the 80mm metal standoff on the

motherboard.

2. Align the small notch at the bottom edge of the M.2 card with the key in the

connector.

3. Insert the bottom edge of the M.2 card into the connector.

4. Secure the card to the standoff with the small silver screw.

If you’re installing a 42mm M.2 SSD:

1. Remove the small silver screw from the metal standoff on the motherboard.

2. Move the standoff from the 80mm position to the 42mm position.

3. Align the small notch at the bottom edge of the M.2 card with the key in the

connector.
