H610I-IM-A
2-14

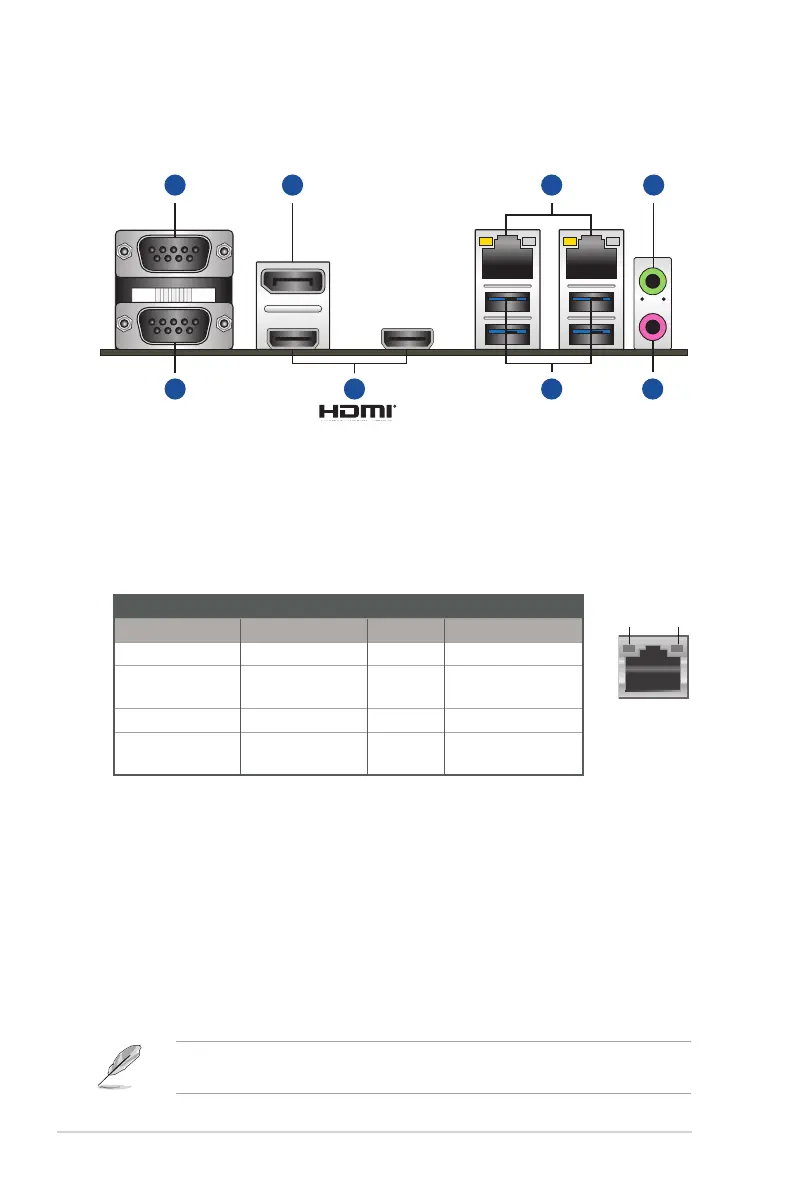

2.6 Connectors
2.6.1 Rear panel connectors
1 3 62
41 5 7
1. COM ports (COM, RS232/RS422/RS485). These ports connect modems, or
other devices that conform with serial specication.
2. DisplayPort. This port is for a DisplayPort-compatible device.
3. LAN (RJ-45) ports. These ports allow Gigabit connection to a Local Area
Network (LAN) through a network hub.
LAN port LED indications
LAN port
Speed
LED
Activity Link
LED
Activity/Link LED Speed LED
Status Description Status Description
Off No link OFF 10Mbps connection
Orange Linked ORANGE 100Mbps
connection
Orange (Blinking) Data activity GREEN 1Gbps connection
Orange (Blinking
then steady)
Ready to wake
up from S5 mode
4. HDMI™ ports. These ports are for High-Denition Multimedia Interface
(HDMI™) connectors, and are HDCP compliant allowing playback of HD
DVD, Blu-ray, and other protected content.
5. USB 3.2 Gen 1 (up to 5Gbps) ports. These 9-pin Universal Serial Bus
(USB) ports are for USB 3.2 Gen 1 devices.
6. Line Out port (lime). This port connects to a headphone or a speaker. In the
4.1, and 5.1 channel congurations, the function of this port becomes Front
Speaker Out.
7. Microphone port (pink). This port connects to a microphone.
Refer to the audio conguration table for the function of the audio ports in 2, 4,
5.1, or 7.1-channel conguration.
