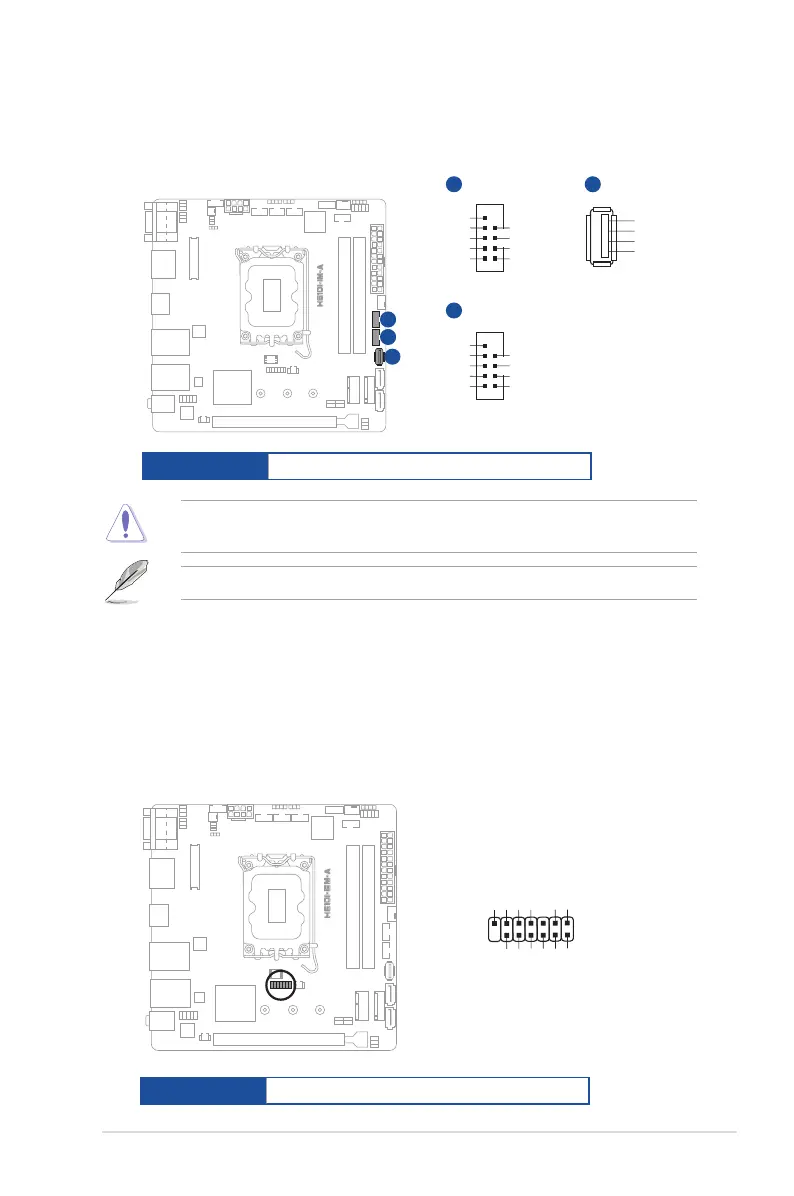

2-17
Chapter 2: Motherboard information
4. TPM header (14-1 pin TPM)
This header supports a Trusted Platform Module (TPM) system with a
Serial Peripheral Interface (SPI), allowing you to securely store keys, digital
certicates, passwords and data. A TPM system also enhances network
security, protects digital identities, and ensures platform integrity.
PIN 1
PIN 2
PIN 13
T_SPI_HOLD#
T_SPI_MISO
S_SPI_CS0#
+3VSB_SPI
NC
S_PLTRST#
+VCC_SPI_TPM
T_SPI_MOSI
T_SPI_CLK
GND
T_SPI_BIOS_WP#
S_SPI_TPM_CS2#
S_SPI_TPM_IRQ#
TPM
Connector type
HEADER 2x7p, K14, 2.0mm pitch
CAUTION! Never connect a 1394 cable to the USB connector. Doing so will
damage the motherboard.
NOTE: The USB cable is purchased separately.
3. USB 2.0 headers / connector (10-1 pin USB56, USB78, USB9)
These headers are for USB 2.0 ports. Connect a USB cable to the header.
The USB headers comply with USB 2.0 specication that supports up to 480
Mbps connection speed.
USB_78
USB_56
NC
GND
USB_P7+
USB_P7-
USB+5V
GND
USB_P8+
USB_P8-
USB+5V
PIN 1PIN 2
PIN 10
NC
GND
USB_P5+
USB_P5-
USB+5V
GND
USB_P6+
USB_P6-
USB+5V
PIN 1PIN 2
PIN 10
A
B
C
A
USB9
C
B
PIN 1
USB+5V
S_USB_PN9
S_USB_PP9
GND
Connector type
HEADER 2x5p, K9, 2mm pitch
