H110A-IM-AB
2-18

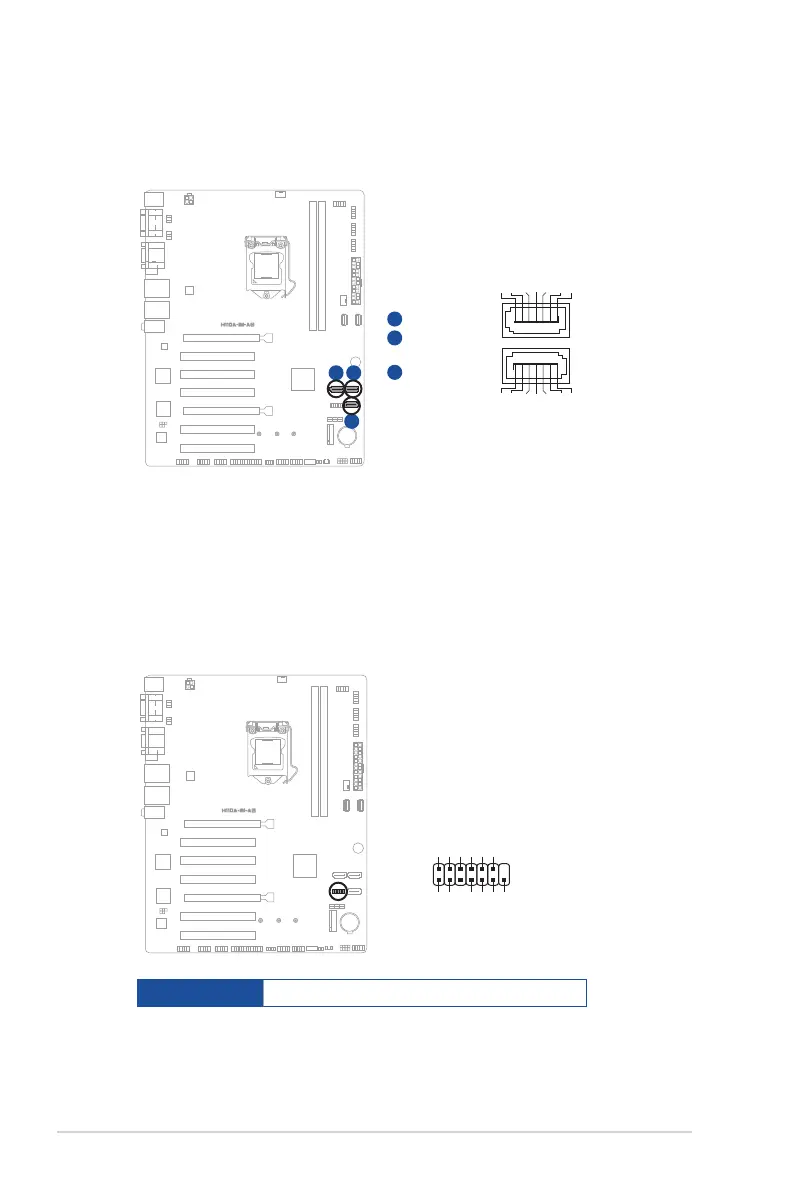

5. SATA 6.0Gb/s ports (7-pin SATA6G_1/2/3)
These ports connect to SATA 6.0 Gb/s hard disk drives or an optical drive via
SATA 6.0 Gb/s signal cables.
SATA6G_3
SATA6G_1
SATA6G_2
GND
RSATA_TXP
RSATA_TXN
GND
RSATA_RXN
RSATA_RXP
GND
GND
RSATA_RXP
RSATA_RXN
GND
RSATA_TXN
RSATA_TXP
GND
A
A B
C
C
B
PIN 1
PIN 1
6. TPM header (14-1 pin TPM)
This header supports a Trusted Platform Module (TPM) system with a
Serial Peripheral Interface (SPI), allowing you to securely store keys, digital
certicates, passwords and data. A TPM system also enhances network
security, protects digital identities, and ensures platform integrity.
PIN 1
+1.8V TPM
PLTRST#
+18V SPI
SPI CS#
SPI MISO
SPI HOLD#
SPI TPM IRQ#
SPI TPM CS#
SPI FLASH WP#
GND
SPI CLK
SPI MOSI
TPM
Connector type
Header 2x7p, K14, 2.0mm pitch
