Chapter 3: Motherboard Information
3-8
17. PCI Express 3.0/2.0 p50-x16 slots
This motherboard supports two PCI Express 3.0/2.0 p50-x16 graphic cards that comply with
the PCI Express specications.
16. PCI Express 3.0/2.0 p50-x1 slots
This motherboard has two PCI Express 3.0/2.0 p50-x1 slots that support PCI Express
x1 network cards, SCSI cards, and other cards that comply with the PCI Express
specications.
15. PCI slots
The PCI slots support cards such as LAN card, SCSI card, USB card, and other cards
that comply with the PCI specications.

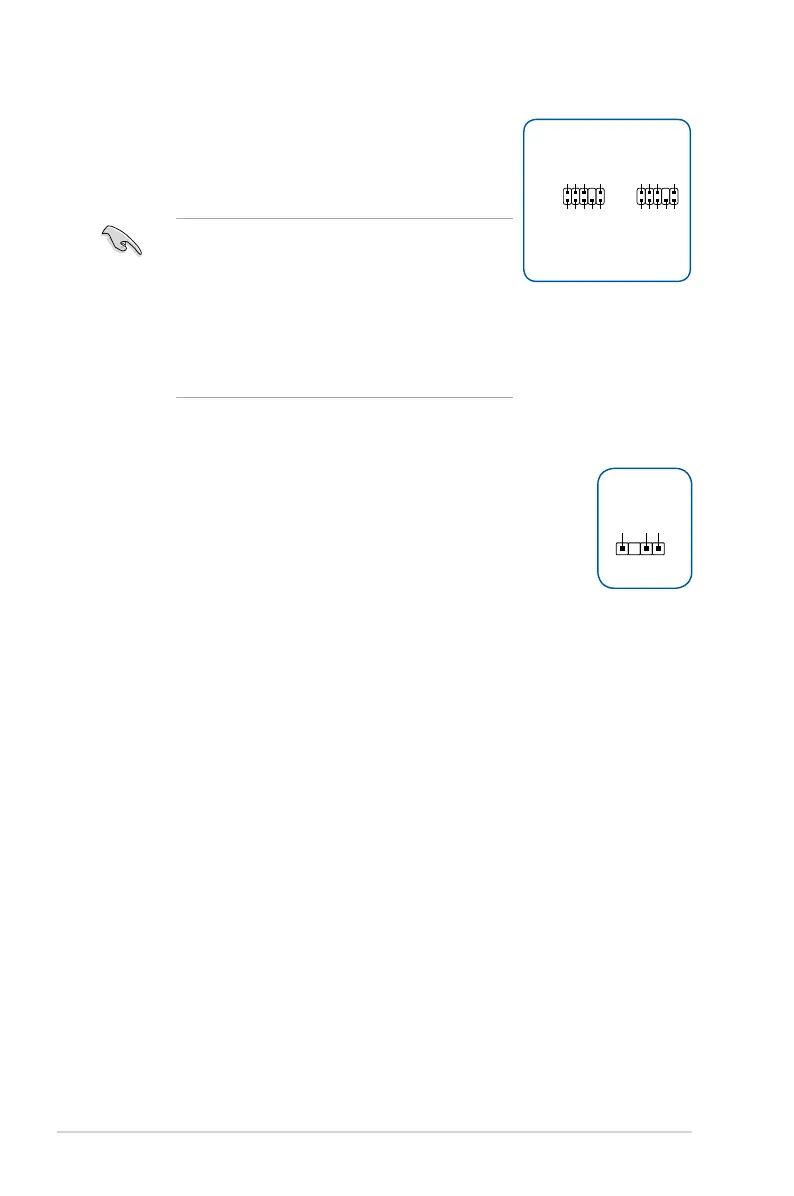

13. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio
I/O module that supports either HD Audio or legacy AC`97
audio standard. Connect one end of the front panel audio I/
O module cable to this connector.
AAFP
AGND
NC
SENSE1_RETUR
SENSE2_RETUR
PORT1 L
PORT1 R
PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
AGND
NC
NC
NC
MIC2
MICPWR
Line out_R
NC
Line out_L
Legacy AC’97
compliant definition
• We recommend that you connect a high-denition
front panel audio module to this connector to avail of
the motherboard’s high-denition audio capability.
• If you want to connect a high-denition front panel
audio module to this connector, set the
Front Panel
Type
item in the BIOS setup to [HD]. If you want to
connect an AC’97 front panel audio module to this
connector, set the item to [AC97]. By default, this
connector is set to [HD].
14. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface
(S/PDIF) port. Connect the S/PDIF Out module cable to this
connector, then install the module to a slot opening at the back of
the system chassis.
SPDIF_OUT
+5V
SPDIFOUT
GND
