Inst315 – Viron e-Quilibirum Series Chlorinator Instructions V08-15

Before installing the unit in position on the wall or post, the length of the PVC tubing provided should be measured

and taken into consideration. Ensure the controller and cell are close enough for the power supply lead to reach the

cell and sufficient PVC tube exists to connect acid container and cell. To avoid loss of water from the system, close

all stop valves before cutting any lines.

Thread the clear PVC tube through a hole in the cap or shoulder of the chemical container and fit the non-return or

check valve and the weight. Ensure that the non-return valve is fitted correctly. Drop the weight, with the non-

return valve into the bottom of the container.

The clear PVC tube should snuggly fit in the hole in the cap or shoulder of the chemical container. A small 2mm

breather hole should be made in the cap or shoulder to allow air to fill the void created by the acid pumped into the

pool.

Connect the other end of the PVC tube to the inlet of the acid pump on the front of the controller.

Connect the remaining hose to the outlet of the acid pump on the underside of the controller. The remaining end

of the PVC hose should be pushed through the cable gland in the 50mm PVC mixing cell fitting so that it passes

through the cable gland by 25mm to 30mm.

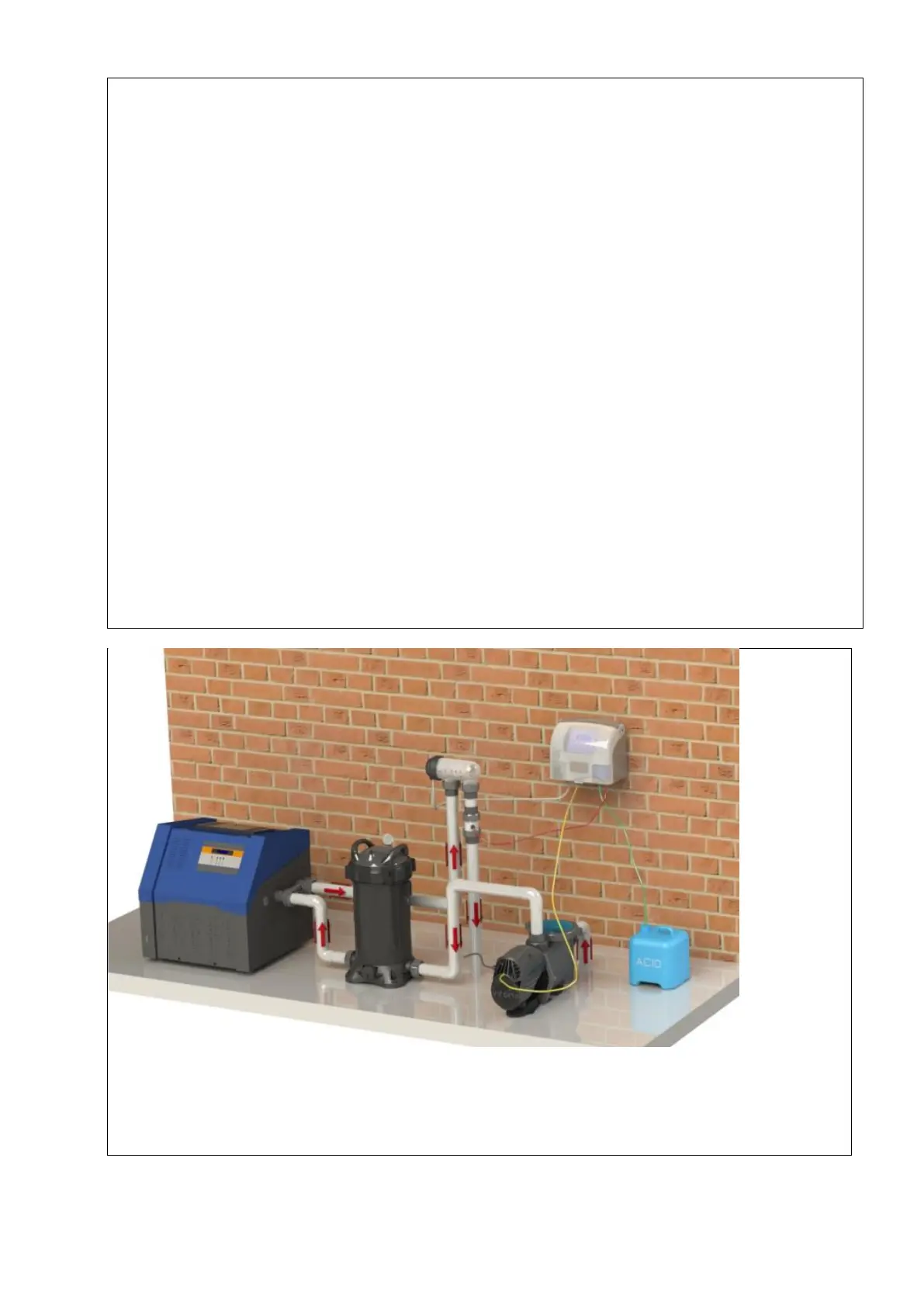

Locate the injection chamber (diagram below) in a horizontal position after the Chlorinator cell on the return to pool

side.

TIP: Soaking the ends of the PVC tubing in hot water or gently heating with a lighter makes it easier to push onto

the barb. When installing acid container in a filter enclosure, which has no ventilation, it is recommended that the

hole in the cap of the container is cut or drilled to fit tightly around the tubing, so that fumes from the acid will not

corrode the equipment. It will be necessary to drill a second hole in the cap fitted tightly with a length of tubing

which should then be vented outside the filter enclosure. This procedure is recommended only where the filter

enclosure has no ventilation and is to protect the equipment.

 NEVER

MIX

CHEMICALS

 CHEMICALS MUST BE STORED IN ACCORDANCE WITH RELEVANT STANDARDS AND DANGEROUS

GOODS CODES. CONSULT YOUR AUTHORISED BUILDER OR POOL SHOP TECHNICIAN FOR ADVICE.

 WHEN HANDLING ACID, SAFETY GLOVES AND GOGGLES SHOULD ALWAYS BE USED

 FOR BEST RESULTS, USE OF NEAT ACID IS RECOMMENDED
