SPC621D8-2L2T / SPC621D8-2T / SPC621D8
40 41
English

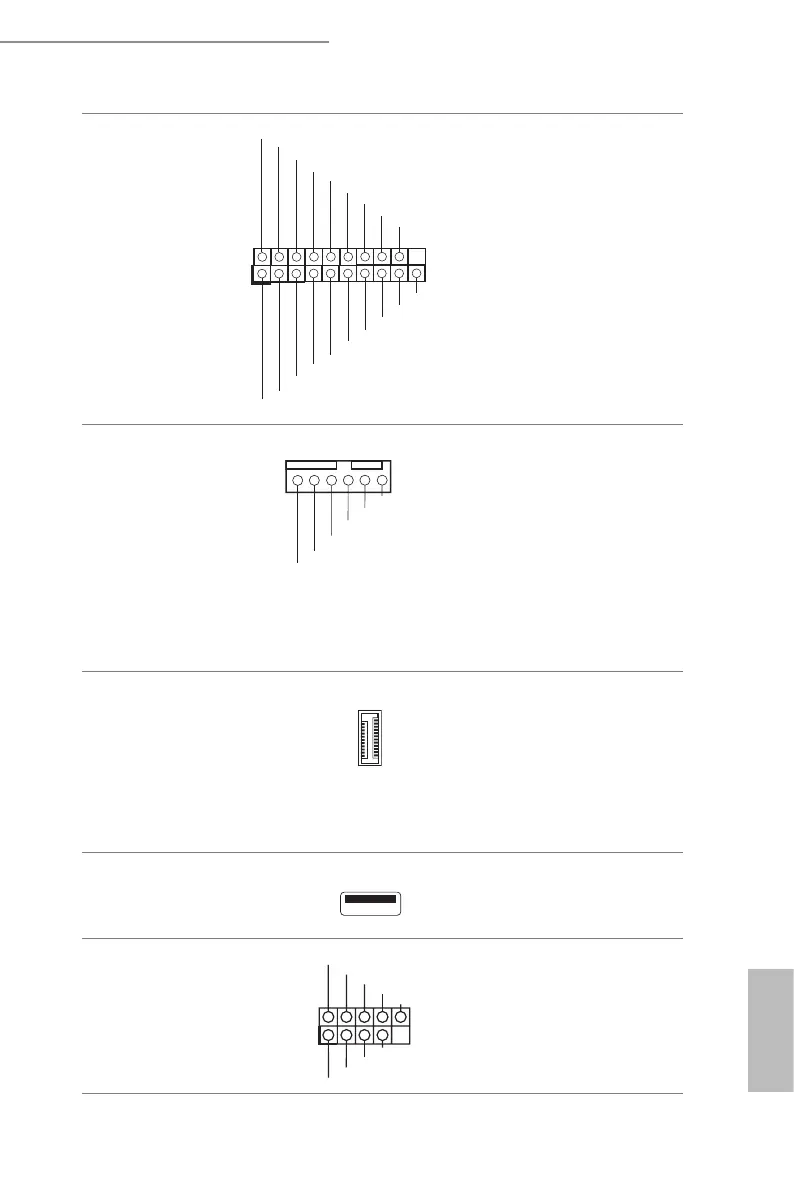

USB 3.2 Gen1 Header
(19-pin USB3_5_6)
Besides four default USB 3.2
Gen1 ports on the I/O panel,
there is one USB 3.2 Gen1
header on this motherboard.
is USB 3.2 Gen1 header can
support two USB 3.2 Gen1
ports.
System Fan Connectors
(6-pin FAN1)
(6-pin FAN2)
(6-pin FAN3)
(6-pin FAN4)
(6-pin FAN5)
FAN_SPEED_SENSOR1
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
65 4321
FAN_SPEED_SENSOR2
NC
Please connect fan cables to the
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
SPC621D8-2L2T only:
Front Panel Type C USB
3.2 Gen2 Headers
(20-pin USB31_TC_1)
(20-pin USB31_TC_2)
ere are two Front Panel Type
C USB 3.2 Gen2 Header on this
motherboard. ese headers
are used for connecting
USB 3.2 Gen2 modules for
additional USB 3.2 Gen2 ports.
USB 2.0 Connector
(USB_1)
USB 2.0 Header
(9-pin USB_2_3)
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
is is one header on
this motherboard. is
USB 2.0 header can
support two ports.
1
Dummy
GND
GND
Vbus
GND
GND
IntA_PA_SSRX+
Vbus
IntA_PA_D+
IntA_PA_D-
IntA_PA_SSTX+
IntA_PA_SSTX-
IntA_PA_SSRX-
IntA_PB_SSRX-
IntA_PB_SSRX+
IntA_PB_SSTX-
IntA_PBA_SSTX+
IntA_PB_D-
IntA_PB_D+
