E3C246D2I / E3C242D2I / C246 WSI
22 23
English

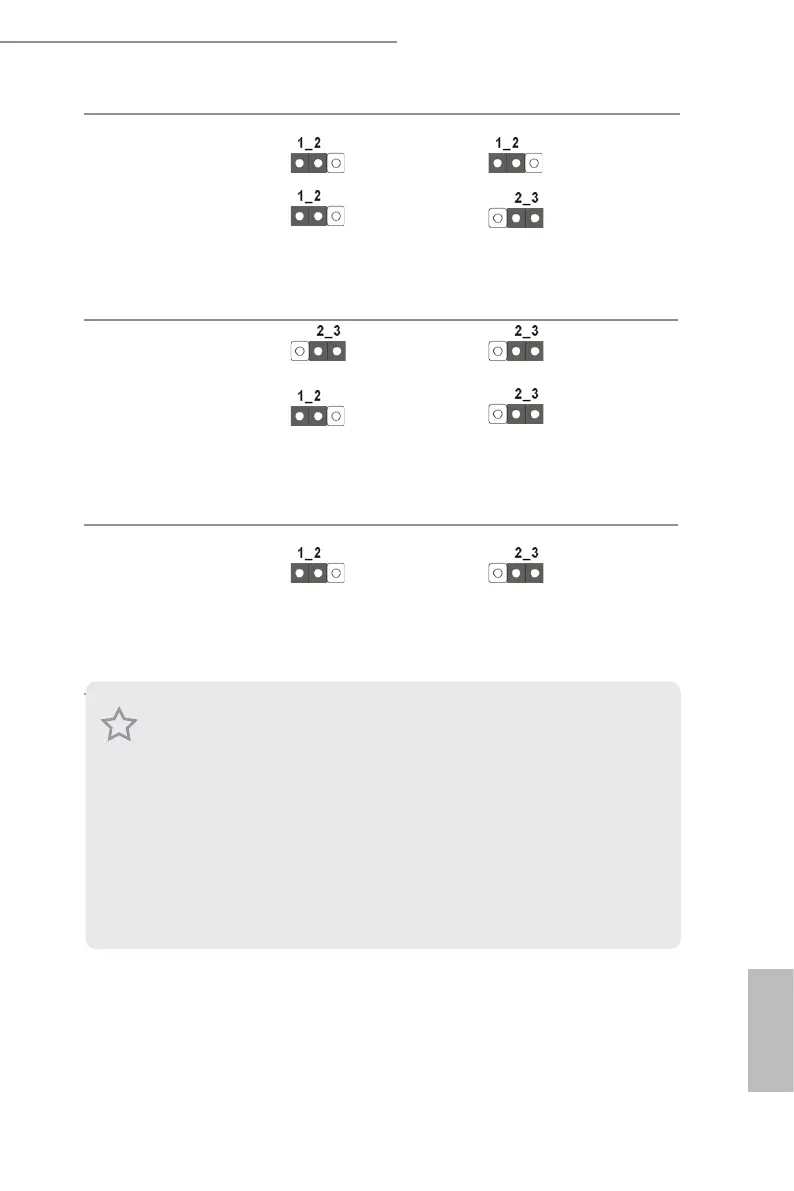

CHASSIS ID Jumpers
(3-pin CHASSIS_ID0)
(3-pin CHASSIS _ID1)
(E3C246D2I / E3C242D2I only)
Board Level SKU (Default)
Reserved for system level
use
CHASSIS ID Jumpers
(3-pin CHASSIS_ID0)
(3-pin CHASSIS _ID1)
(E3C246D2I / E3C242D2I only)
Reserved for system level
use
Reserved for system level
use
SATA DOM Power Jumper
(3-pin SATAPWR1)
SATA DOM (SATA_4)
requires 5V power supply
SATA DOM (SATA_4) does
NOT require 5V power sup-
ply (Default)
Consult the documentation that comes with your SATA DOM and check whether or not
Pin 7 requires 5V power supply.
If the connected SATA DOM requires 5V power supply, move the jumper caps placed on the
SATA DOM Power Jumper (SATAPWR1) from pins 2-3 (default) to pins 1-2.
If the connected SATA DOM does NOT require 5V power supply, connect the SATA DOM
power cable to the SATA DOM power header (SATAPWR1) and there is no need to change
the default jumper setting of the SATA DOM Power Jumper (pins 2-3).
Warning! Incorrect setting of the SATA DOM Power Jumper (SATAPWR1) may cause dam-
age to the motherboard or your SATA DOM.
