avoid the electrical shock and larger deformation caused by the heat radiation from the
hotplate. As shownbelow:

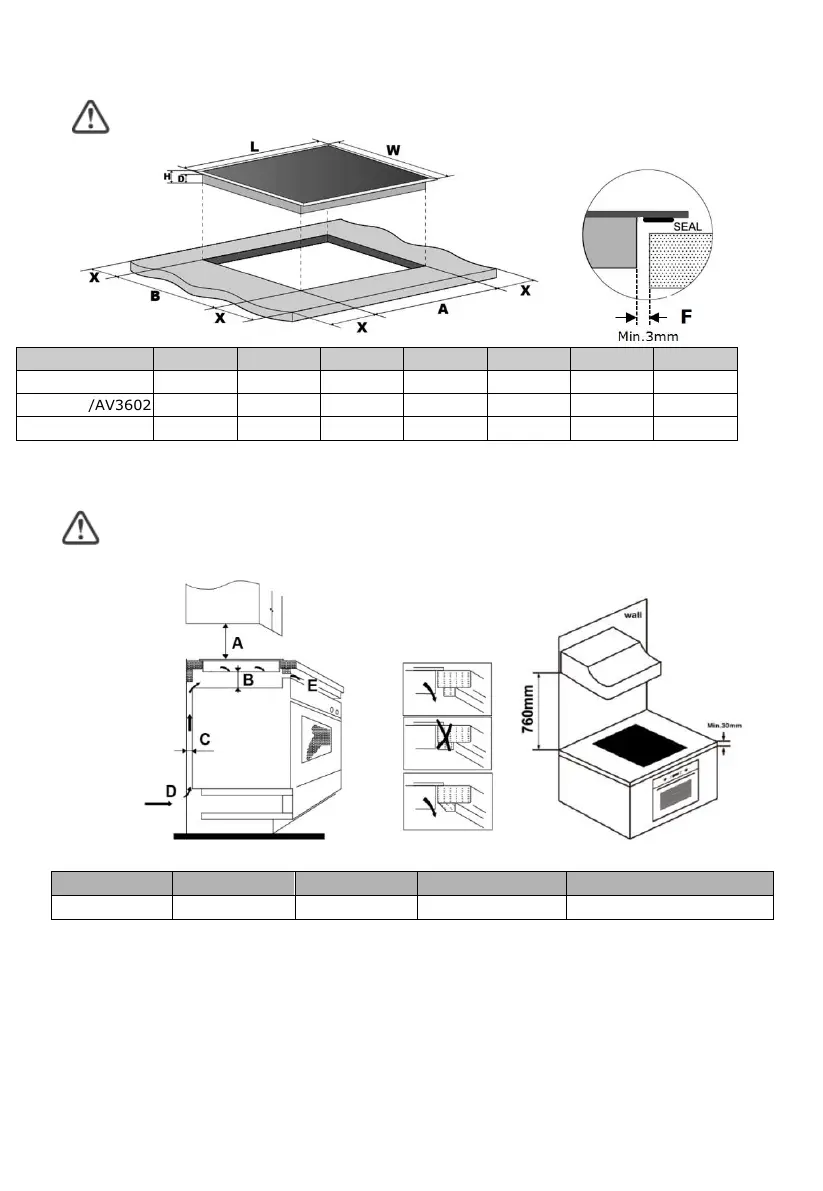

Note: The safety distance between the sides of the hob and the inner surfaces
of
the worktop should be at least 3mm.
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
APV1201
290
520
50 46 270 490
50 min.
APV2303/AV3602
590
520
50 46 560 490
50 min.
API2300I
590 520
50 62 560 490
50 min.
Under any circumstances, make sure the hob is
well ventilated
and the air inlet and
outlet are not blocked. Ensure the hob is in good work state. As shown below:
Note: The safety distance between the hotplate and the cupboard above the hotplate
should be at least 760 mm.
A(mm) B(mm) C(mm)
D E
760 50 min. 20 min. Air intake Air exit 5mm
WARNING: Ensuring Adequate Ventilation
Make sure the hob is well ventilated and that air inlet and outlet are not blocked. In order
to avoid accidental touch with the overheating bottom of the hob,
or getting
unexpectable electric shock during working, it is necessary to put a wooden insert, fixed
by screws, at a minimum distance of 50mm from the bottom of the hob. Follow the
requirements
below.
