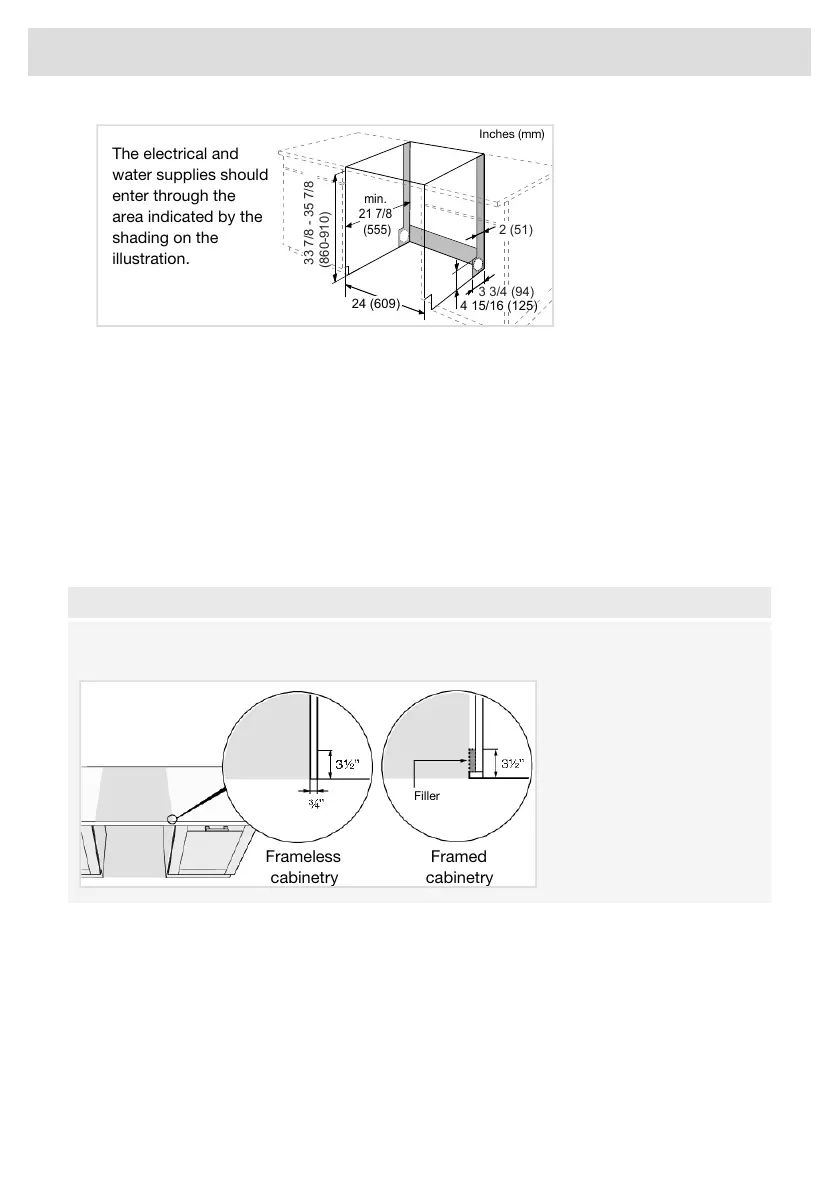

min.
21 7/8
(555)
24 (609)
4 15/16 (125)
2 (51)
3 3/4 (94)
33 7/8 - 35 7/8
(860-910)
Inches (mm)
The electrical and
water supplies should
enter through the
area indicated by the
shading on the
illustration.
• Make sure the area on which the dishwasher is to be installed is firm. Adjust the adjustable feet
so that the dishwasher is level. Tighten the lock nuts.
• If the dishwasher is built-in, the surrounding furnishings must be resistant to any condensation
from the dishwasher.
• Mount the protective film beneath the countertop and up around the edge. The function of the
protective film is to protect the countertop from moisture. (The protective film is in the enclosed
plastic bag.)
• Check that the machine is installed such that the door opens freely, otherwise door lock
functionality may be disrupted.
• Note that the door springs may need adjusting after a cover door has been fitted. Adjust the left
and right door springs equally until the door is evenly balanced.
NOTE!
Framed cabinets require additional finished filler material behind the face frame for a proper
installation. A minimum 3½” (89 mm) finished return is required on all sides of the opening.
Frameless
cabinetry
Filler
Framed
cabinetry
Drain connection
This dishwasher is suitable for installing in a raised recess (to obtain an ergonomic working height).
This means that the dishwasher can be placed so that the drain hose runs to a lower level than the
bottom of the dishwasher, such as by routing it directly to a floor drain.
The drain hose can also be connected to a connection nipple on the sink unit's water trap. The
connection nipple must have an internal diameter of at least 1/2'' (14 mm).
The drain hose may be extended by a maximum of 87" (2.2 m) (the total length of the drain hose
must not exceed 177" (4.5 m)). Any joints and connecting pipes must have an internal diameter of
at least 1/2'' (14 mm).
38
Installation instructions
