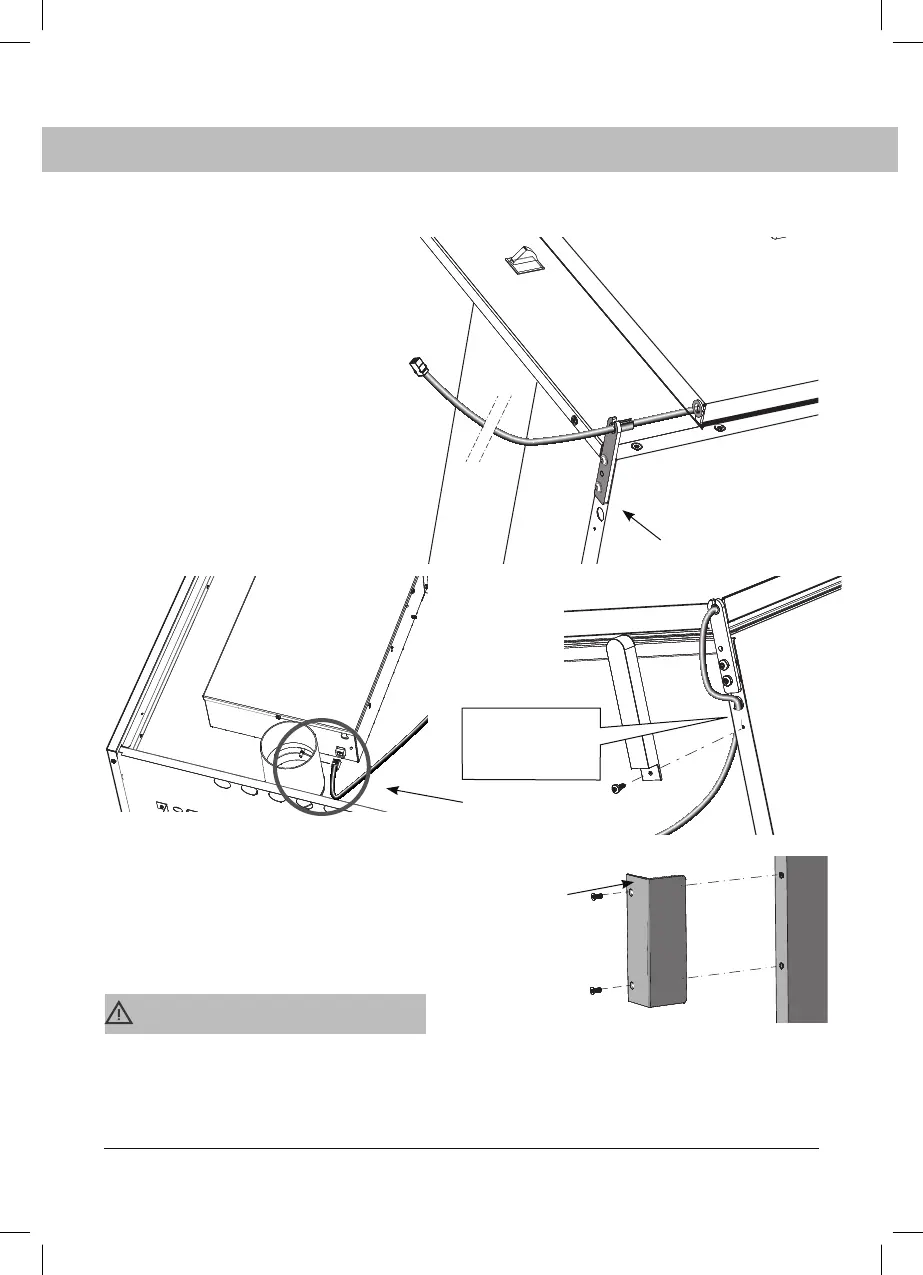

14 Introduce the operating cable
through the recess in the new up-
per hinge and slide the door up on
the hinge pin.
15 Install the lower hinge pin.
Make sure that the hinge pin is
tightened fi rmly.
16 Connect the control panel (13) to
the connector in the upper part of
the drying cabinet.
17 Refi t the drying cabinet cover
which was removed under 1.
Lay the door in position
New hinge
Fan unit
The control cable
must be pulled
through the hole.
Raise the cabinet
19 Raise the cabinet and place it in
position and secure the cabinet to
the wall.
Transfer the door handle
18 Transfer the handle (14) to the other side.
Fit the cover plugs for the old holes by
hand. Cover plugs are supplied in the
assembly kit.
_____________________________
CAUTION!
The drying cabinet must not be used without
being attached to a wall owing to the risk of
tipping over forward.
____________________________________
784416en.indd 16784416en.indd 16 21. 12. 2022 11:05:3421. 12. 2022 11:05:34
