min.
14mm
Max. 950mm

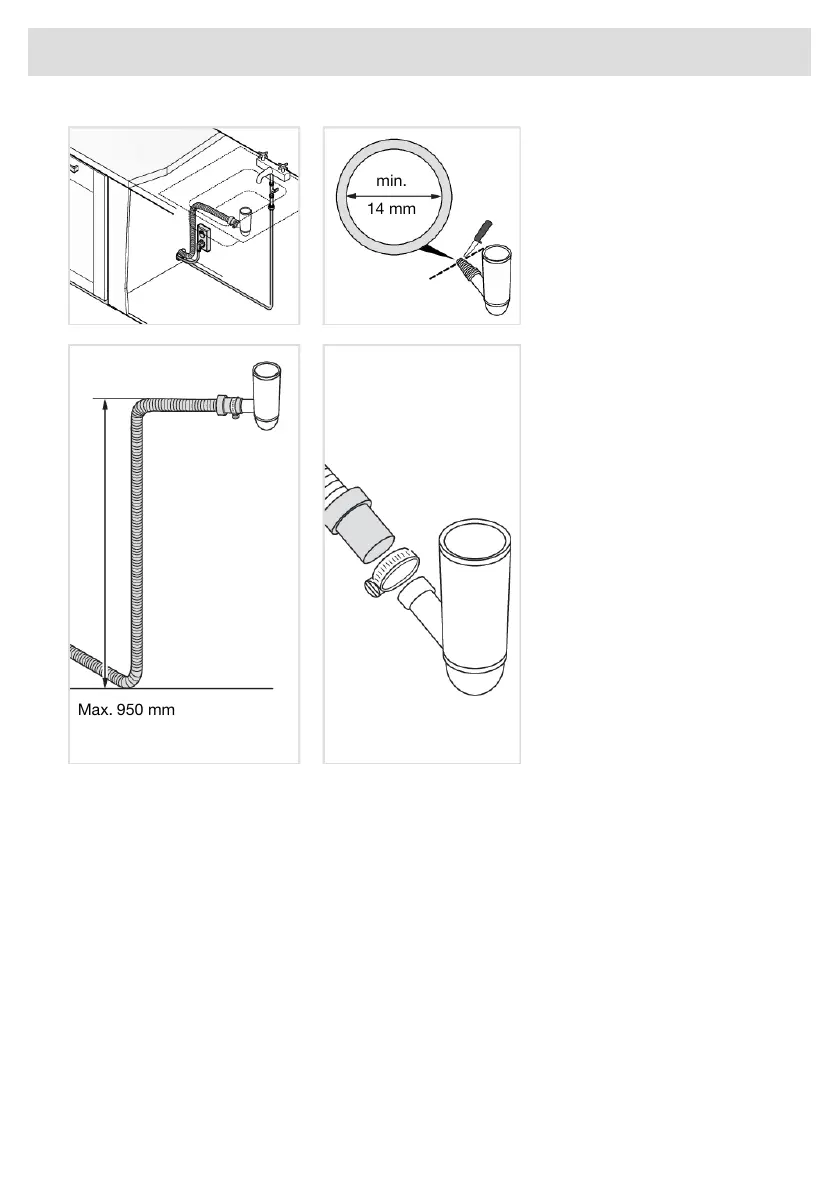

The drainage hose can also be connected to a connection nipple on the sink unit's water trap. The
connection nipple must have an internal diameter of at least 14 mm.
The drainage hose may be extended by a maximum of 2.5 m (the total length of the drainage hose
must not exceed 4.5 m). Any joints and connecting pipes must have an internal diameter of at least
14 mm.
No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher.
Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks.
Connection to water supply
Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.
The supply pipe must be fitted with a water tap (stopcock). The water tap must be easily accessible,
so that the water can be shut off if the dishwasher has to be moved.
Once the installation is complete, turn on the water tap and allow the pressure to settle for a while.
Check that all connections are watertight.
40
Installation
