19
Operating Manual - digiMIX24 Digital Mixer
4.6c - Channel 1 and 2 Linked, plus Sub1/Sub2 Linked:
1) In this example Ch1-2 are linked and Sub1-2 are also linked. Ch1-2 are assigned to Sub1-2 but not
to the main outputs. The Adjust knob (or motorized fader) controls the level of the two linked input
channels when either channel is selected. The Adjust knob, motorized fader, or Sub1-2 level knob control
the level of Sub1-2 whenever Sub1-2 are selected.
2) Congure the Main Sends screen so that Sub1-2 are enabled (On) as previously detailed in section
4.6b, line 4. This allows subgroup panning to the main mix.
3) When Ch1-2 become stereo linked, they are initially panned full left (to Sub1 mix bus) and full right
(to Sub2 mix bus), but can still be panned independently to the main mix as long as they have been
enabled to Main from within the Main Sends screen.
4.7 Input Channel Linking, Aux Send Linking, and the Pan Control
The following examples show how input channel and aux stereo linking work together with
the Pan control using typical Assign and Aux Send applications.
4.7a - No Linking, Ch01 sent to Aux1
In this example there is no stereo linking. Ch01 is assigned to Aux1 but not to the main mix. The Pan control will only have an effect
if Ch01 gets assigned to the main mix.
4.7b -
Ch1-2 Linked, sent to Aux1 and Main
In this example Ch1-2 are linked and
assigned to Aux1 and also to the main mix.
1) The channel fader is now named Ch1-2.
2) The Pan bars appear for both Ch1-2,
initially panned full left and full right.
3) The orange bar shows the currently
selected channel, either Ch01 or Ch02.
4) The p
an control adjusts the currently
selected Ch01 or Ch02 to the main mix.
4.7c -
Aux1-2 Linked, Ch01 not linked
In this example, Aux1-2 are linked. Ch01
is sent to Aux1-2 and also assigned to Main.
1) In either the Ch01 Assign or Aux1-2
Sends screens, the Pan control fades Ch01
between Main L/R when Ch01 is selected.
2)
►
TIP: In the Main Sends screen (not
shown) if you enable Aux1-2 to Mains, you
can select and separately pan Aux1 or Aux2
to Main L/R.
4.7d - Ch1-2 Linked and Aux1-2 Linked
In this example, Ch1-2 and Aux1-2 are
both linked, and can both be enabled
or disabled for routing to the Main mix,
offering greater exibility.
1) In the Ch1-2 Assign screen, the Pan
control fades the selected Ch01 or Ch02
input between Main L/R (if enabled to Main).
2) In the Aux1-2 Assign screen, the Pan
control fades the selected Ch01 or Ch02
input signal between Aux1 and Aux2.
3)
►
TIP: In the Main Sends screen (not
shown) if you enable Aux1-2 to Mains,
you can select and separately pan Aux1 or
Aux2 to Main L/R.

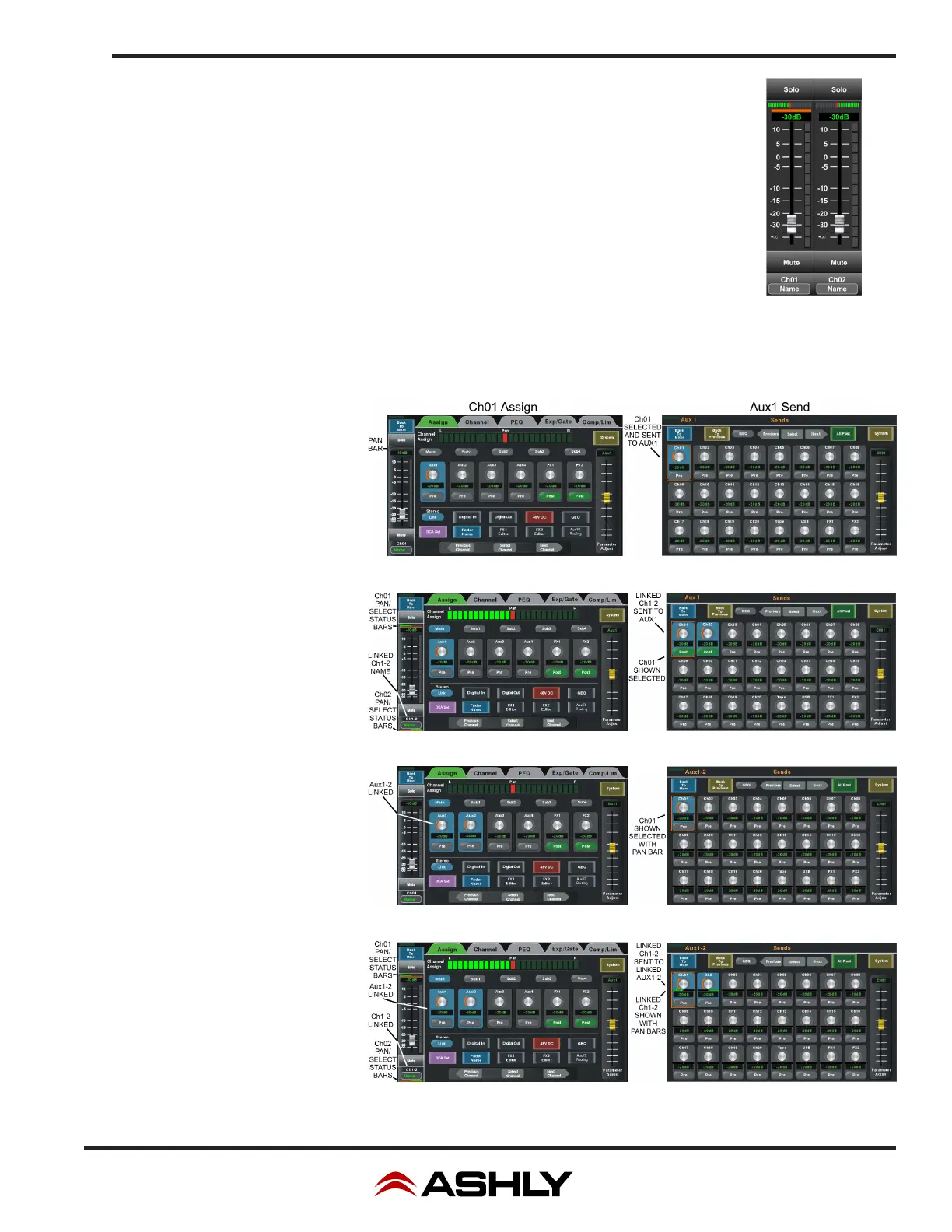

Figure 4.6c: Channel 1 and 2 linked,
Sub1 and Sub2 are also linked
Figure 4.7a: No Linking, Ch01 sent to Aux1 only
Figure 4.7b: Ch1-2 are linked, sent to Aux1, assigned to Main mix
Figure 4.7c: Aux1-2 are linked, Ch01 sent to Aux1-2 and assigned to Main mix
Figure 4.7d: Ch1-2 Linked, Aux1-2 also linked, both can be routed to Main mix
